15-4
FM5000C - FM5000PLUS
Maternal/Fetal Monitor
User Manual
Left arm
LA
Blac k
L
Yellow
Right foot
RL
Green
N or RF
Blac k
Left foot
LL
Red
(f)
Green
Chest 1
V1
Red
C1
Red
Chest 2
V2
Yellow
C2
Yellow
Chest 3
V3
Green
C3
Green
Chest 4
V4
Blue
C4
Brown
Chest 5
V5
Orange
C5
Blac k
Chest 6
V6
Purple
C6
Purple
15.4.2.2 Placement of 3-lead ECG Electrodes
The position of electrode of 3-lead ECG cable is divided into American standard and European standard:
White/red (right arm) electrodes - placed under the clavicle, near the right shoulder.
Black/yellow (left arm) electrodes - placed under the clavicle, near the left shoulder.
Red/green (left leg) electrodes - placed in the left lower abdomen.

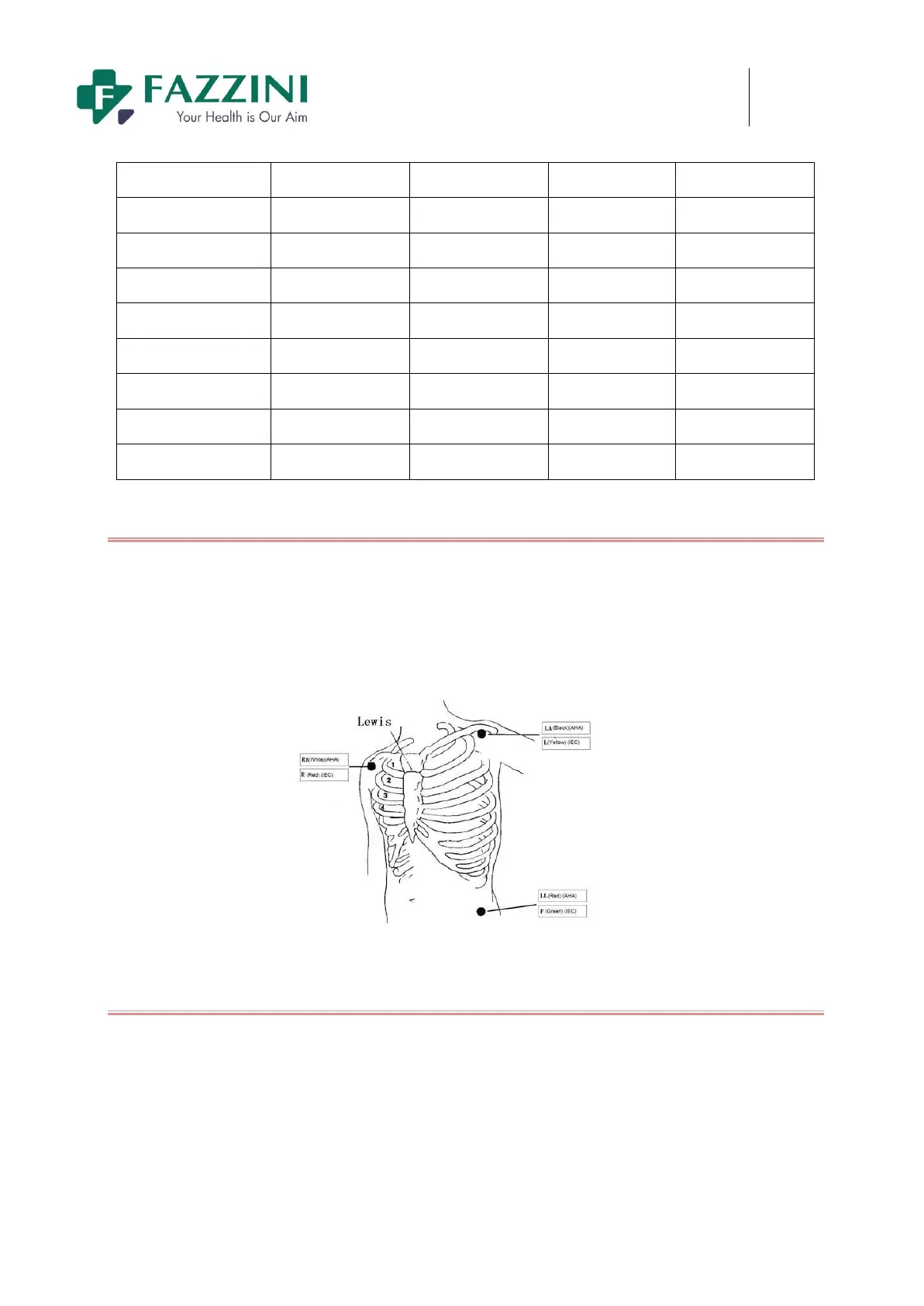

Figure15-2 Positions of 3-lead ECG electrodes
15.4.2.3 Placement of 5-lead ECG Electrodes
The position of electrode of 5-lead ECG cable is divided into American standard and European standard:
White/red (right arm) electrodes - placed under the clavicle, near the right shoulder.
Black/yellow (left arm) electrodes - placed under the clavicle, near the left shoulder.
Green/black (right leg) electrodes – placed at the right lower quadrant.
Red/green (left leg) electrodes - placed in the left lower abdomen.
Brown/white (chest) electrode-as on the chest wall
