Fazzini FM5000C User Manual

15-1
FM5000C - FM5000PLUS
Maternal/Fetal Monitor
User Manual
Chapter 15 ECG Monitoring
15.1 Overview
The ECG measures the electrical activity of the patients’ heart and displays it on the monitor in the form
of waveform and valueso as to accurately assess the physiological status of the patient. To get accurate
measured value, the ECG lead wired should be placed correctly.
This monitor is applicable to 3-lead, 5-lead and 12-lead ECG monitoring. Different waveformscan be displayed
according to different lead wires.
15.2 ECG Display
2
3
4 6
1
7
5

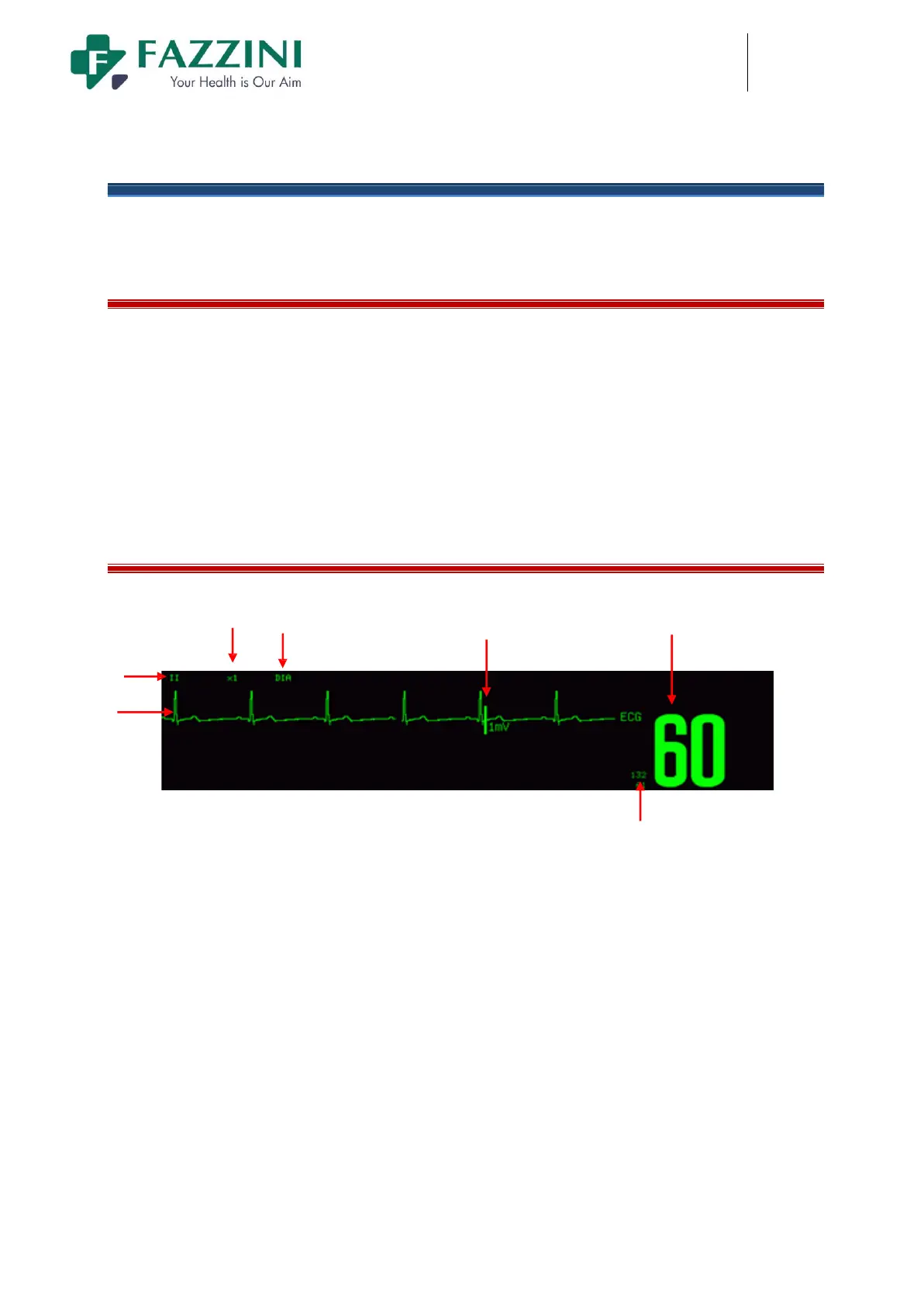

Figure 15-1 ECG display
1. ECG lead name
2. Waveform gain
3. Filter mode
4. 1 mV scale
5. The alarm limits
6. ECG measured value
7. ECG Waveform
