Position of short tendency chart
Short tendency chart is located at the left of the corresponding waveform in the waveform area with the
same as that of the corresponding parameter and waveform.
Tendency length
The dynamic tendency length is 2hours, with the right end of the tendency chart being 0h and the left
end being 2h.
7.1.6 OxyCRGScreen
OxyCRG screen displays the oxyCRG chart which is comprised of HR tendency, SPO2 tendency and RR
tendency or compressed respiratory wave and occupies one half of the entire waveform area.
To open the OXYCRGscreen:
(a) Click [SCREENS] on-screen key;
(b) Or access [MAIN MENU] and select [SCREENS]
(c) Select [OXYCRGSCREEN] to open the oxyCRG screen, as shown below:

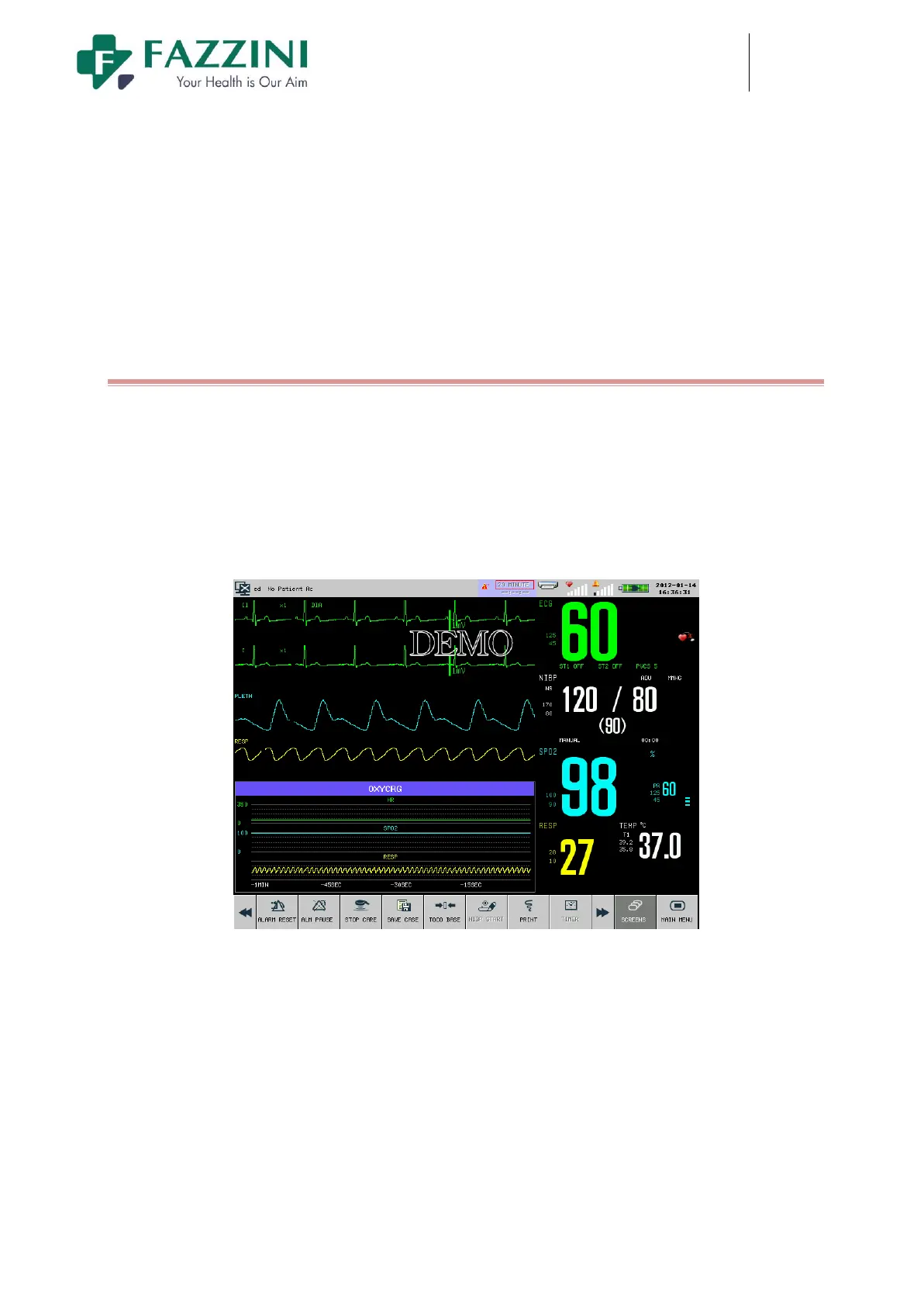

Figure7-7 OxyCRG
screen
Select the length of time for OXYCRGchart
Select the oxyCRG chart and one menu [OXYCRG] will be displayed.Select [TIME] and adjust the
length of time among 1 mimute, 2 mimutes and 4 minutes.
Display compressed respiratory wave or RR tendency
Select the oxyCRG chartand one menu[OXYCRG] will be displayed. Select [TYPE] and select [RESP
WAVE] or [RR] to display compressed respiratory wave or RR trendency respectively.
