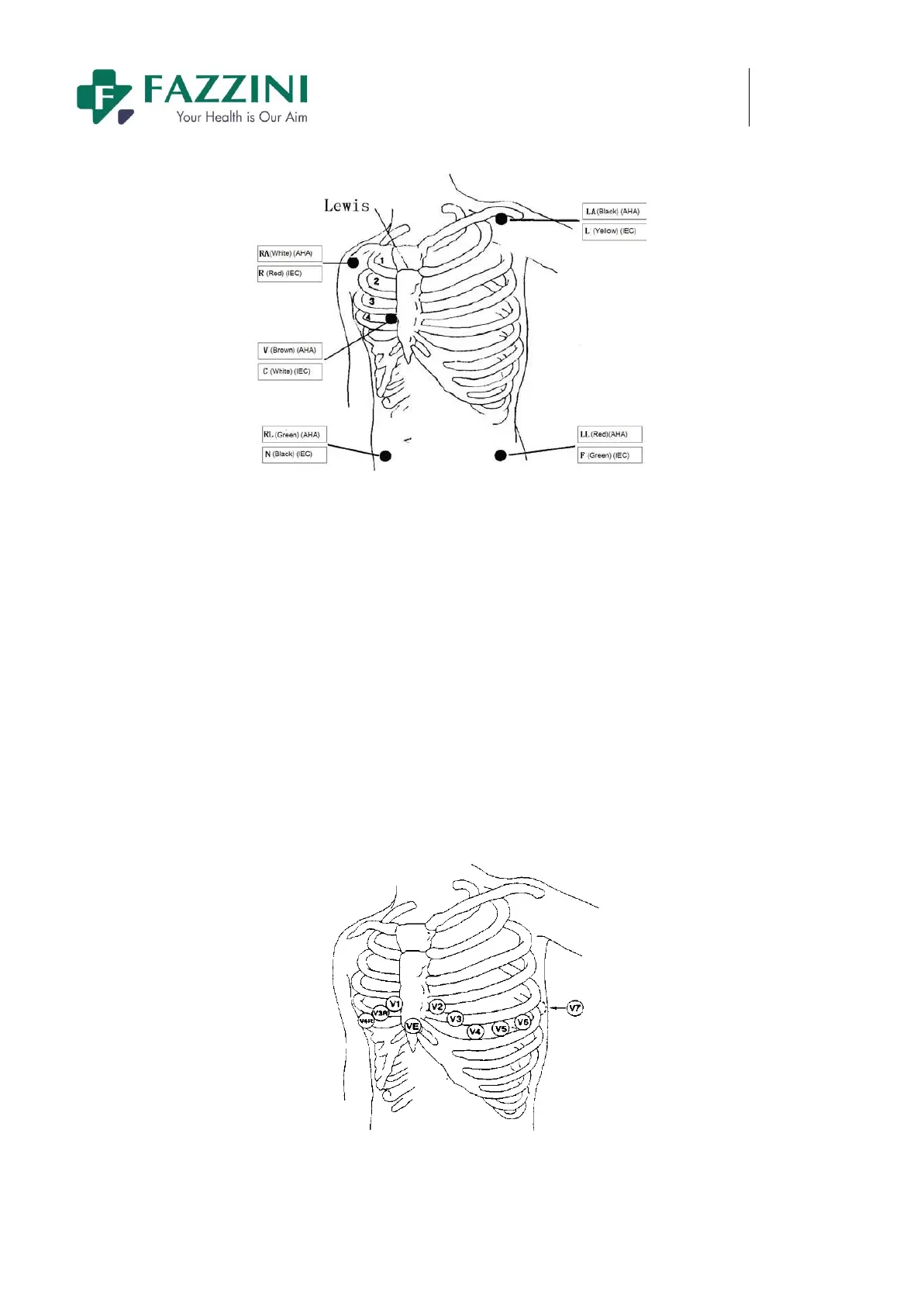

Figure15-3 Positions of 5-lead ECG electr odes
As with 5-lead ECG cable, the chest lead electrodes should be put in one of the positions as follows:
V1: in the fourth intercostal space on the right edge of the sternum.
V2: in the fourth intercostal space on the left edge of the sternum.
V3: in the middle position of V2 and V4.
V4: in the fifth intercostal space of the left mid-clavicular line.
V5: at the left anterior axillary line, with horizontal position the same as the V4.
V6: at the left median axillary line, with horizontal position the same as the V4.
V3R-V6R: in the right chest wall, with its position corresponding to the left position.
VE: at the eminence of xiphoid.
V7: in the fifth intercostal space of left posterior axillary line on the back.
V7R: in the fifth intercostal space of right posterior axillary line on the back.
Figure 15-4 Position of Chest electrode of 5-lead ECG cable
