OPERATION
29.2 Loading the implement
software for implement control
Text-module
Ignition OFF. Connect the mounted implement to
the tractor using the LBS socket.
Ignition ON.

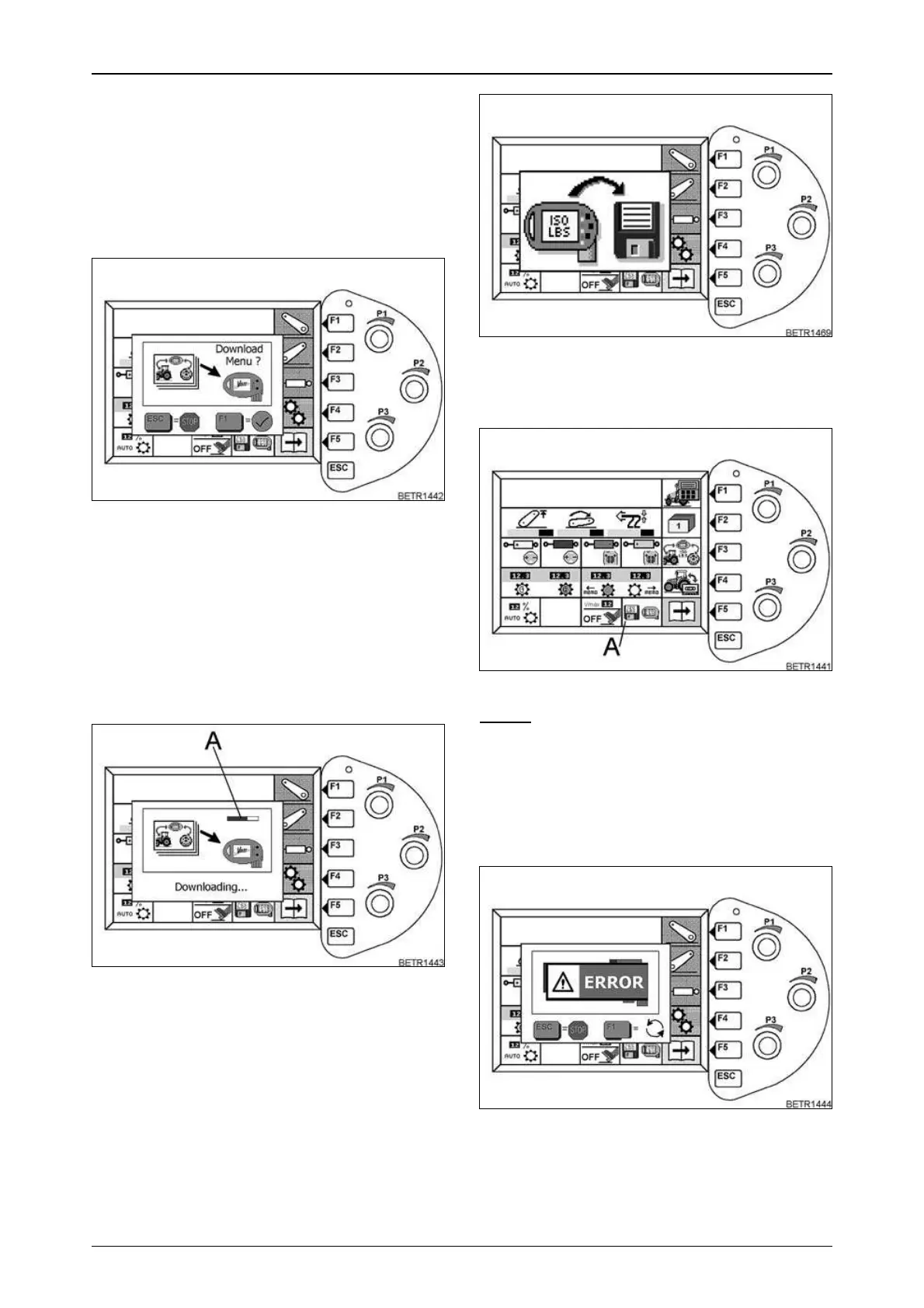

The following menu quickly appears in the con-
trol terminal.
Operation_Pic_number:1
After approx. 30 seconds, download will be
initiated automatically.
The F1 key can be used to start the loading
process immediately.
The ESC key can be used to abort the loading
process.
Text-module
Once the downloading process has started, the
following menu appears in the control terminal.
Operation_Pic_number:1
Indicator bar (A) Red: progress of memory
erasing.
Bar indicator (A) Green: progress of data
transfer from the implement to the operating
terminal.
If downloading has been successful, the
following image appears.
Fig.297
Fig.298
Operation_Pic_number:1
If downloading has been successful, the
following image appears (A).
Operation_Pic_number:1
NOTE:
Up to four working implements can be stored.
If the data memory is full, the data for the im-
plement not used for the longest time are de-
leted.
If the loading process is not successful, the
following menu appears on the control terminal.
Operation_Pic_number:1
Press key F1 to re-start the loading process.
Press key ESC to abort the loading process.
Fig.299
Fig.300
Fig.301
