OPERATION
Operation_Pic_number:1
2. Using Quick Lift switch.
● Flick quick lift switch (H) once upwards.
When it is unlocked, the power lift moves to the
position selected with the depth control (G).
NOTE:
After unlocking EPC, lifting or lowering
speed is reduced until the preset position is
attained. Normal speed can be restored im-
mediately by briefly selecting the STOP posi-
tion.

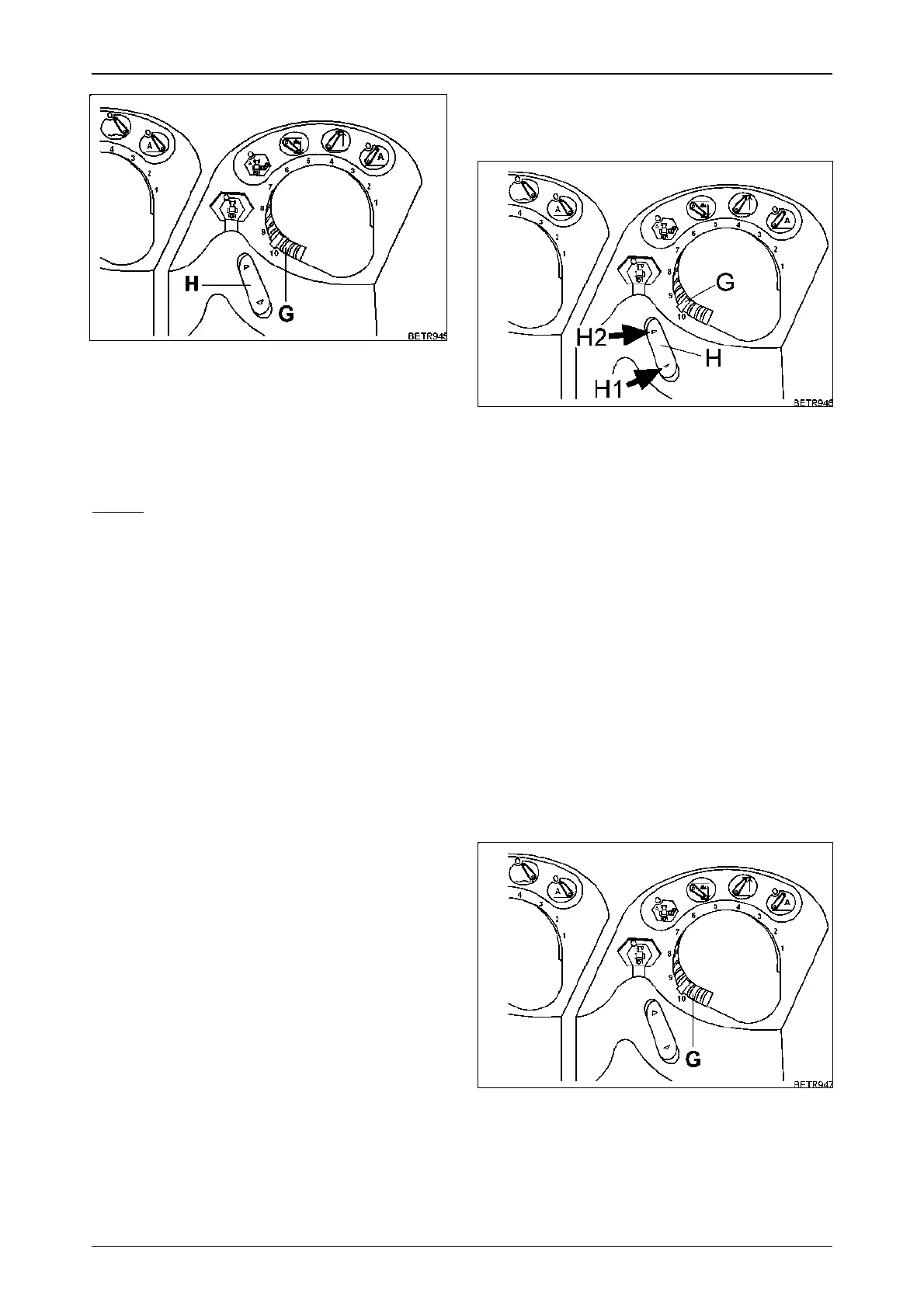

Fig.155
18.3 Control panel functions
Quick Lift key
Operation_Pic_number:1
Text-module
Stop = Switch (H) in centre position.
LED lights up if the EPC, lift or con-
trol are active.
Press switch (H) again in the active
direction of actuation - the LED goes
out.
or at speeds under 0.5 km/h.
Press switch (H) once in the non-ac-
tive direction of actuation, LED goes
out.
Raise = Controller position (H2) LED lights
up.
The working implement is adjusted
to the height control value set.
Control = Controller position (H1) LED lights
up.
Implement is set at the value selec-
ted with the depth control (G).
Depth control
Operation_Pic_number:1
Depth control (G) for setting the working depth.
Fig.156
Fig.157
