OPERATION
Direction of rotation for depth control.
right = Raise
left = Lowering
Extreme left = Floating position
as far as 1 = Neutral
Lift height limiting
Operation_Pic_number:1
Text-module
Rotary switch (P1) for selecting maximum lift
height.
The lift height can be set steplessly from left to
right.
right = maximum lift.
left = minimum lift.

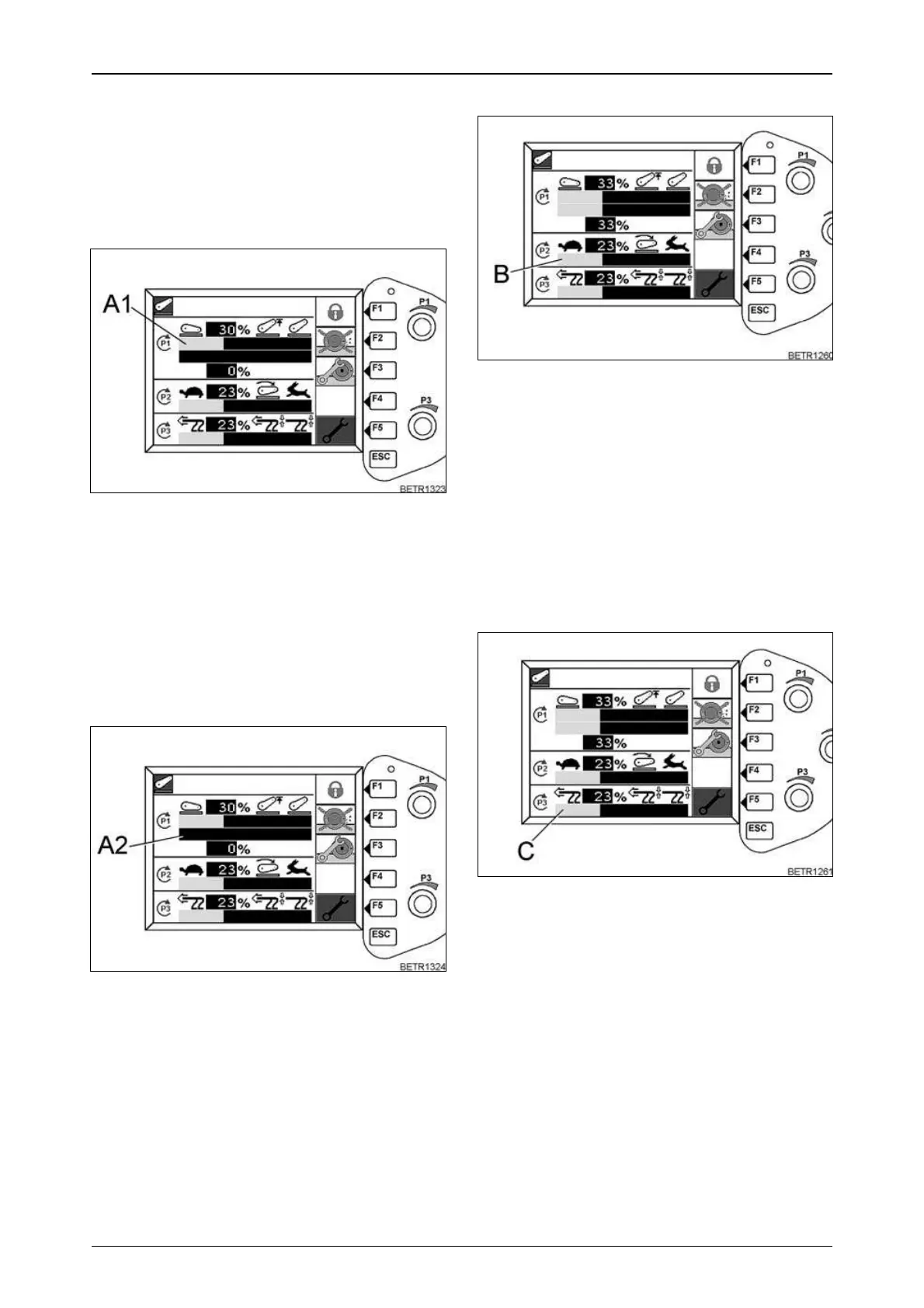

Bar indicator (A1) from 30% - 100%.
Position of the power lift
Operation_Pic_number:1
Text-module
Use rotary switch (P1) to set the position of the
power lift.
The position of the power lift can be set ste-
plessly from left to right.
right = all the way up.
left = all the way down.
Indicator bar (A2) from 0% - 100%.
Fig.158
Fig.159
Lowering speed
Operation_Pic_number:1
Rotary switch (P2) for selecting the lowering
speed.
Positions of bar indicator (B).
right = Max. lowering speed.
left = no lowering.
Lowering speed can be adjusted steplessly bet-
ween the two positions.
Position/traction mix control
Operation_Pic_number:1
Rotary switch (P3) for setting position and
tractive power, or for stepless adjustment of the
position/traction ratio.
Positions of bar indicator (C).
right = Position control (fertiliser spreader).
left = Traction control (plough).
Mixed control is between position and traction.
