159
CARE AND MAINTENANCE

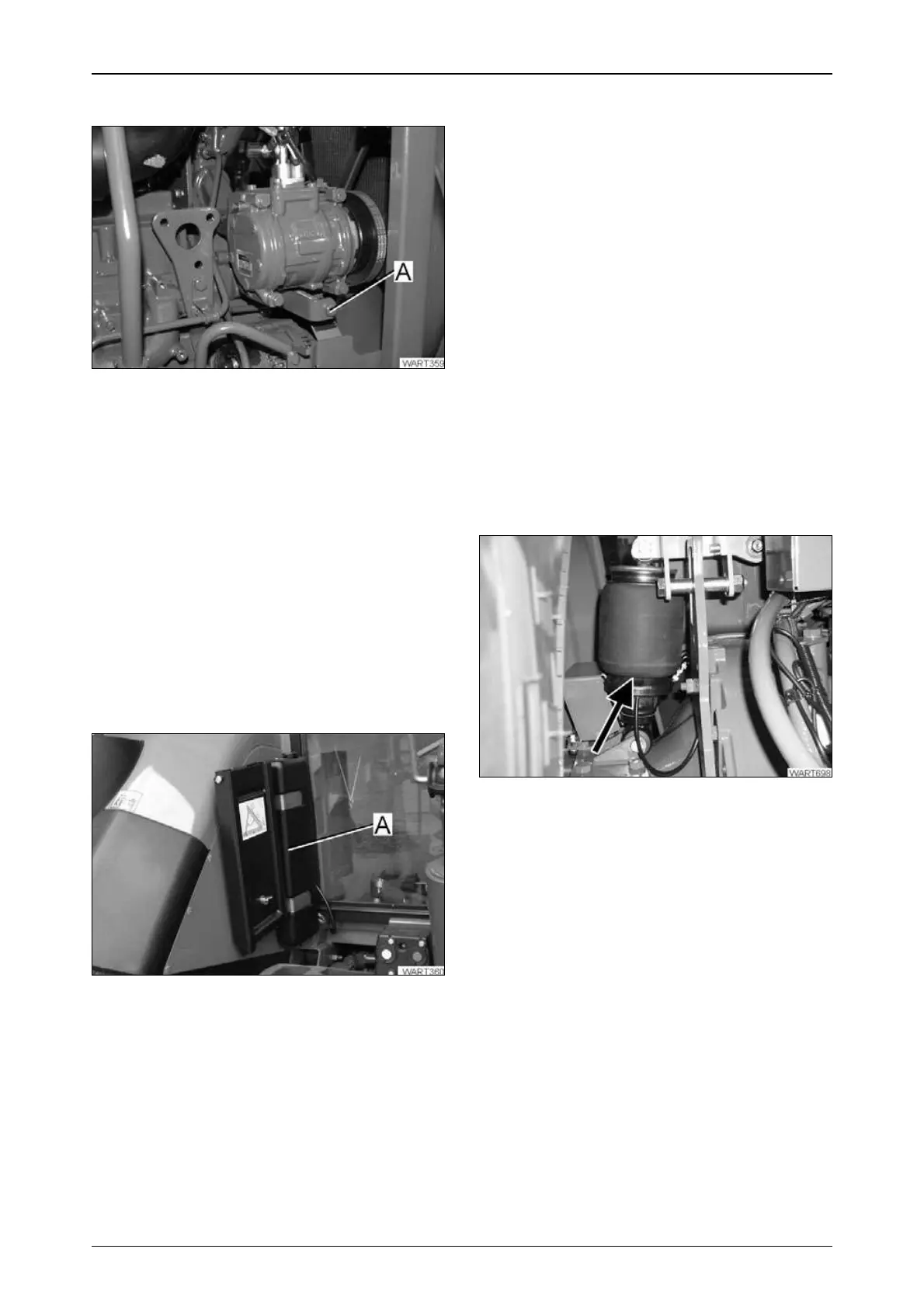

17.2 Compressor V-belt
Operation_Pic_number:1
V-belt tension is to be measured at the centre
point between pulleys, using Optibelt tension
gauge I.
● Adjustment is made with clamping screw (A).
Span force (operating tension)
400 + 50 N (40 + 5 kp) - profile 13 mm.
18. Windshield washer
system
Cleaning agents and antifreeze can be added
according to the manufacturer's instructions.
Fluid reservoir
Operation_Pic_number:1
● Top up fluid in reservoir (A).
Fig.59
Fig.60
19. Cleaning the tractor
Text-module
● The driver seat upholstery sections can be re-
moved by unbuttoning, without tools.
● Never leave the engine running when hosing
down the tractor.
● Never point water jets directly at electrical
equipment.
● When using a high-pressure washer, main-
tain a distance of at least 10 cm. from seals
and paint work. Maximum water temperature
50° C. Do not use a spray booster (dirt cutter).
Always follow the manufacturer's instructions.
● After cleaning the tractor, lubricate all lubrica-
tion points, joints and bearings. We recom-
mend waxing painted surfaces after cleaning.
● Do not aim high-pressure cleaning jets di-
rectly at the radar sensor (minimum distance
1 m.- maximum pressure 65 bar).
19.1 Clean the cab's air spring
bellows
Operation_Pic_number:1
To ensure proper function of the cab air
suspension, the air spring bellows (arrowed)
must be cleaned if dirty.
Clean with high-pressure washer, keep a
distance of at least 10 cm to seals and paint.
Maximum water temperature 50° C. Do not use
a spray booster (dirt cutter).
Fig.61
