OPERATION

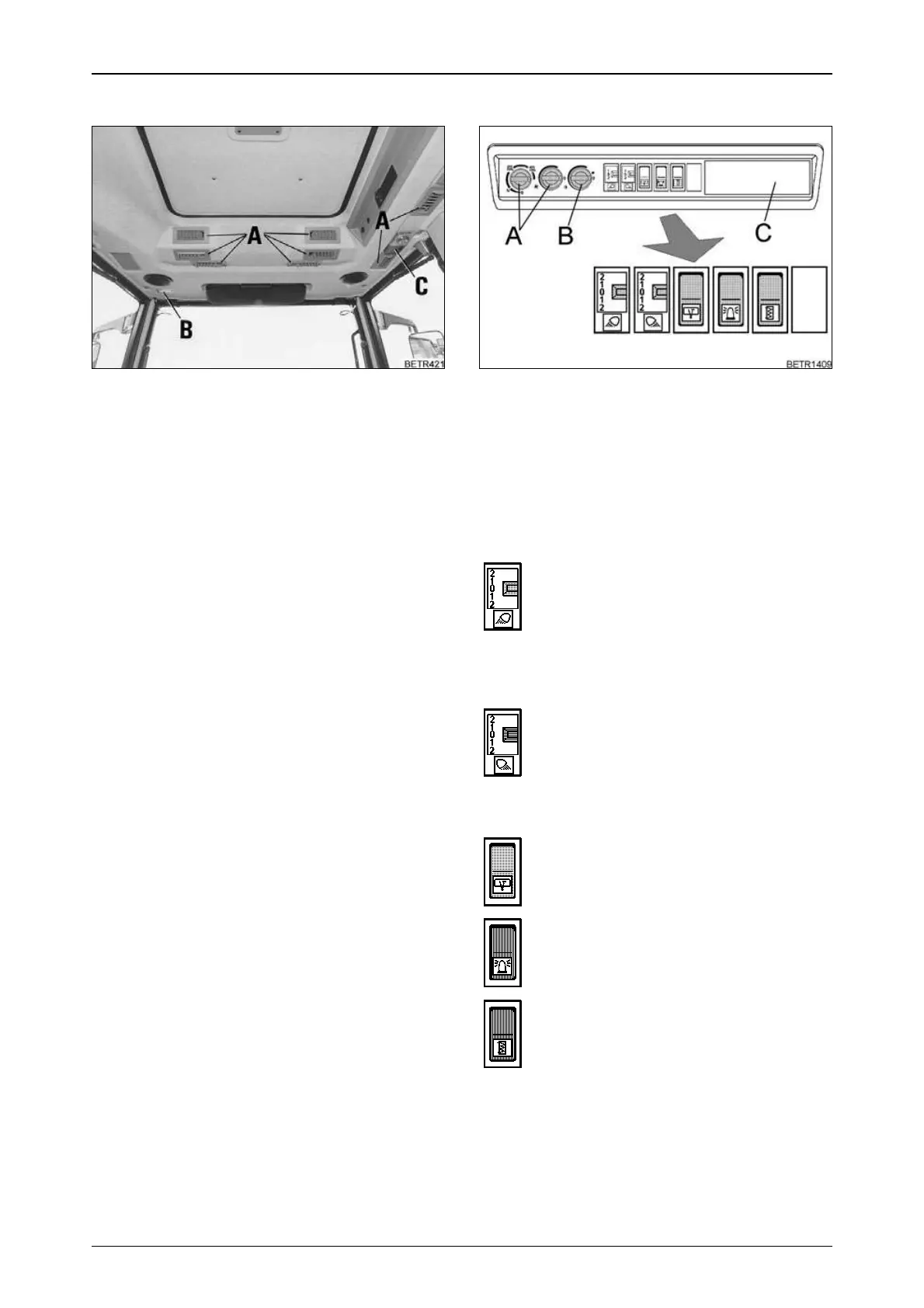

2.16 Cab top section, front
Operation_Pic_number:1
Text-module
A = Adjustable air nozzles
B = Cab lighting
C = Right-hand console lights
Fig.24
2.17 Cab top right side
Operation_Pic_number:1
Text-module
A = Auxiliary ventilation (see also OPERA-
TION Section 3.2).
B = Air conditioning ON/OFF and tempera-
ture control switch (see also OPERA-
TION Section 3.3).
C = Space for radio installation, blanking pa-
nel. Connectors behind the panel are fit-
ted as standard.
Work lamps at the front and at mirror
brackets:
2 = front and at mirror bracket.
1 = front.
0 = off.
1 = on rear view mirror bracket.
2 = front and at mirror bracket.
Working lights at the rear and on
mudguard:
2 = at rear and on mudguard.
1 = rear.
0 = off.
1 = on mudguard.
2 = at rear and on mudguard.
Rear window wiper and washing system.
Warning beacon.
Heated rear windshield.
Fig.25
