Type 05: Description of components
Valve terminal type 05 consists of individual
modules. Each module is assigned with different
functions and different elements for connection,
display and operation. The diagram below sum-
marizes the modules.
No. Modules
1 Node FB6
2 Electronic modules (input/output modules), fitted with
• digital inputs (modules with 4 or 8 inputs)
• digital outputs (modules with 4 outputs)
3 End plate left with opening for additional earth connection
4 Adapter plate for ISO sub-base (manifold) as per ISO 5599-1 sizes 1 or 2
5 ISO sub-base (manifolds for 4, 8 or 12 locations) fitted with:
• Pneumatic valves with hole pattern as per ISO 5599-1
- single pneumatic valves
- double pneumatic valves
- pneumatic mid-position valves
• components for vertical stacking
(regulator plates, flow control plates etc.)
• blanking plates
6 Right-hand end plate with holes for fitting and with thread
for lifting eye bolts (M8)
3
2
41
6

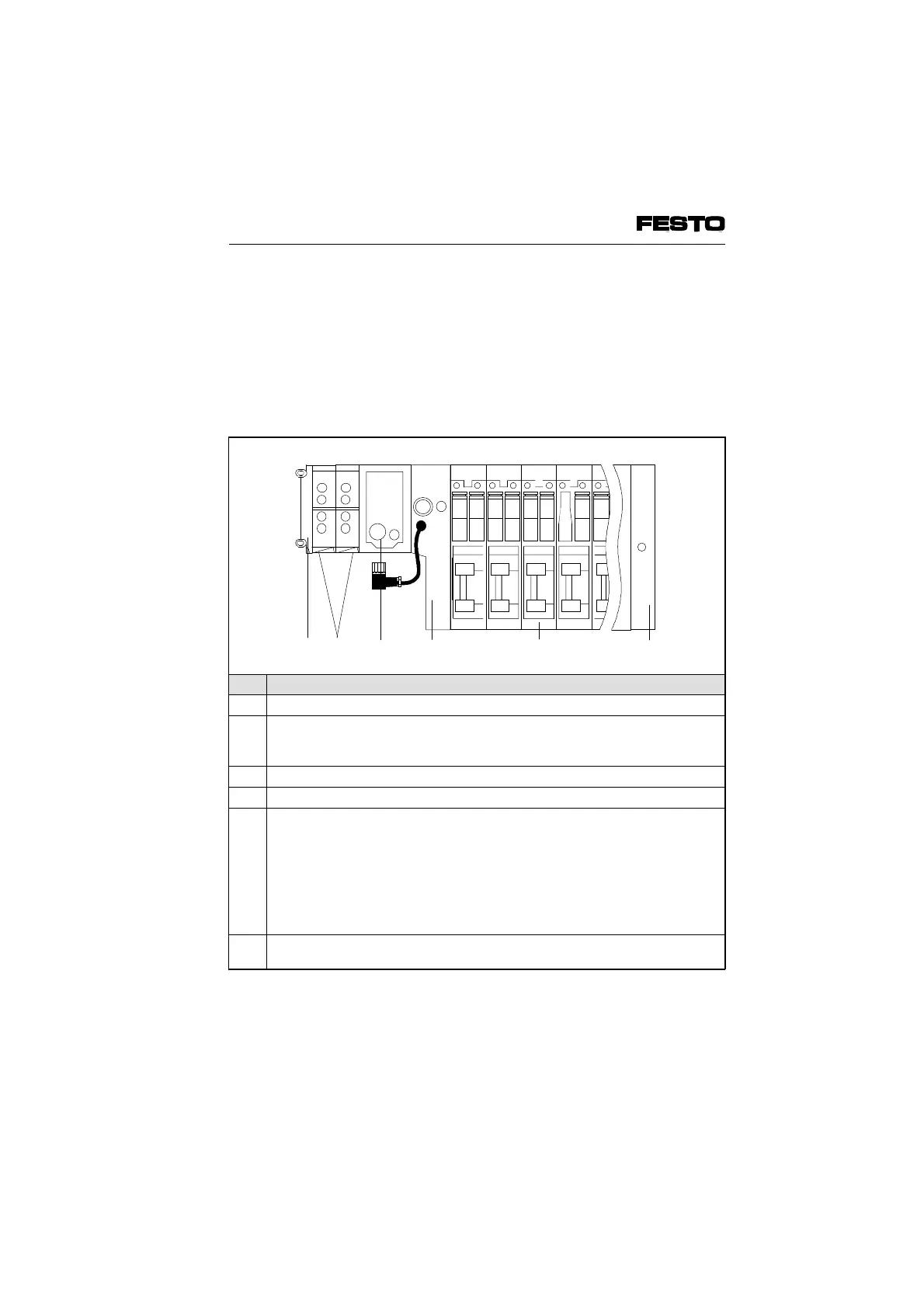

Fig. 1/5: Modules of the valve terminal type 05
VIFB6 - 03/05 1. System summary
9809c 1-7
