6Functions
Festo – GDCP-CMMP-M0-FW-E N – 1304N H 39

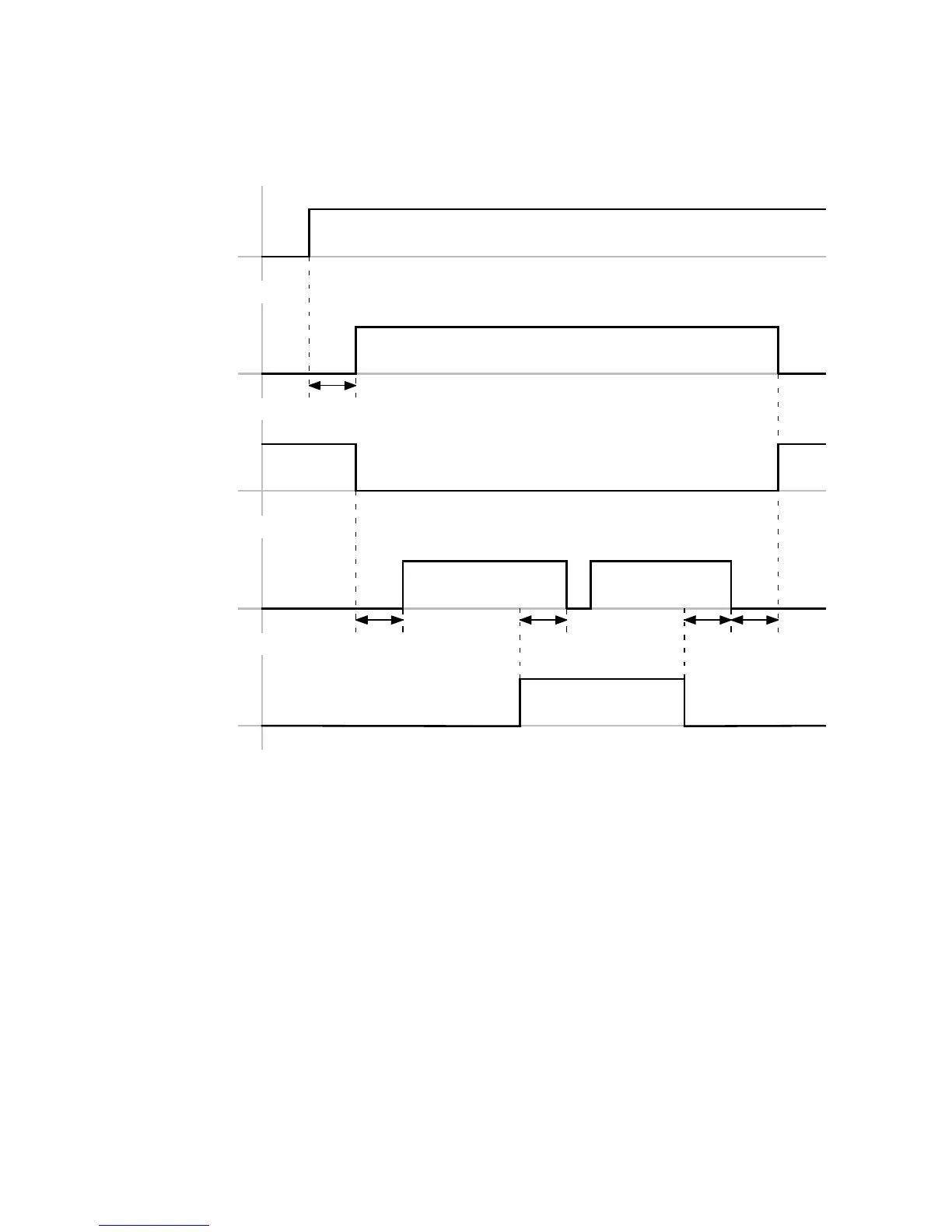

6.2.6 Timing diagrams
Start (DI N)
2
1
HA
MC
Speed <> 0
E0/E1
3 4 5
HA: HOMING_ACTIVE
MC: MOTION C OMPLETE
E0: Limit switch 0
E1: Limit switch 1
1 0…10ms
2 20 ms
3 Dependent on braking ramp
4 Dependent on braking ramp
5 20 ms
Fig. 6.2 Timing diagram: homing without error
