5 Commissioning
Festo – P.BE-CPX-CMAX-SYS-EN – en 2017-09b – English 53
Search for axis at
axis connection
Power on
Valve and displacement encoder
are missing
Axis
found
Axis not
found
Setpoint configuration still
not present
Setpoint
configuration
present
Setpoint configuration
present
Wait for
configuration
Drive
ready
Error
123
Error
Valve or measuring
system error
Component
error
3
Valve and displacement encoder
are OK
1 Initial start-up executed; CMAX ready for
operation
2 Status when switching on for the first time
(in delivery status or after data reset): Wait
for initial start-up, display è Tab. 5.3
3 Error (è Chapter 6)

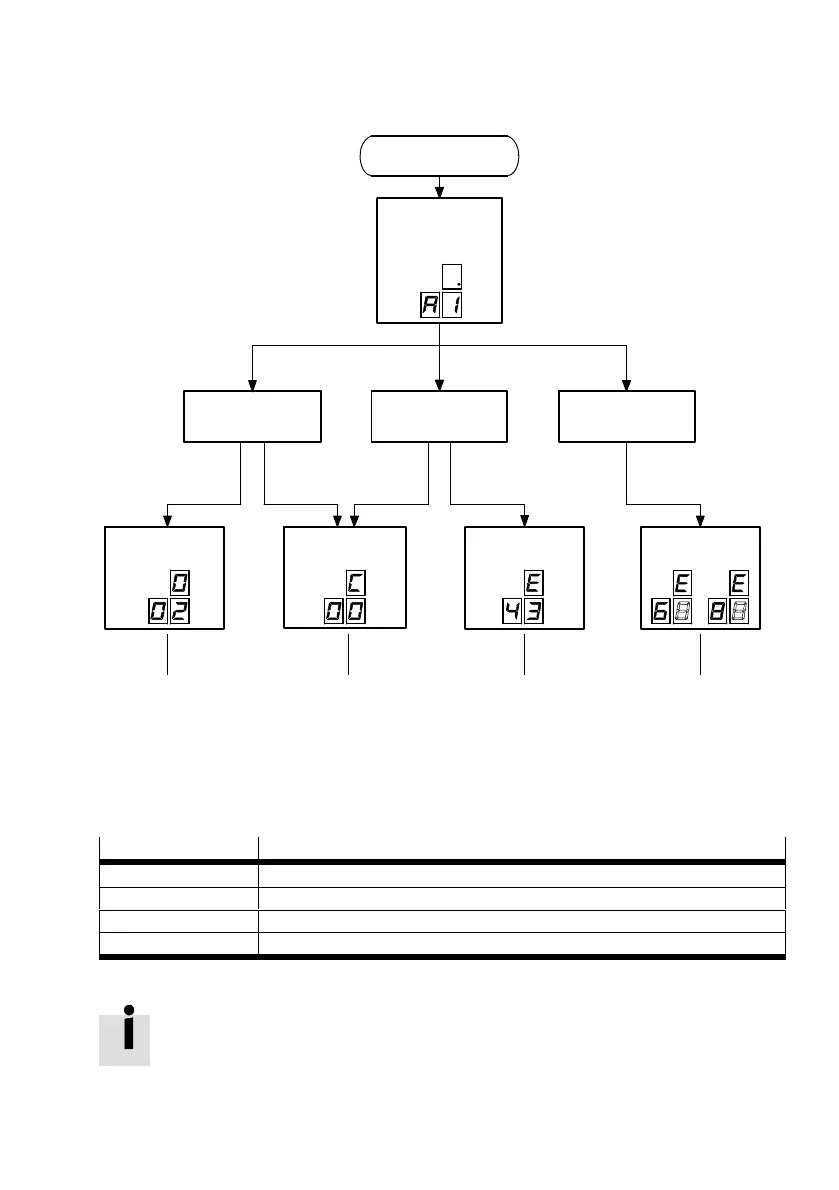

Fig. 5.1 Switch-on behaviour
Display Description
C00 Wait for configuration of the dimension system.
C01 Wait for configuration of the drive type.
C02 Wait for configuration of the axis data.
C03 Wait for execution of the movement test.
Tab. 5.3 Display during commissioning
An overview of the status indicators on the display is shown in segment 6.3.2.
