2. Commissioning
2−48
Festo P.BE−CPX−FB13−EN en 0811c
Parameterising the diagnostic memory
A maximum of 40 diagnostic messages can be saved in the
diagnostic memory. With the HW Config, DPV1 or the
handheld, you can parameterise the way in which the
messages are to be saved.
1. Click on the value of the parameter Diag.Buffer  Mode"
or Diag.Buffer  Error End"
A list with the possible
values will be opened.
2. Modify the value as follows and confirm this with OK.

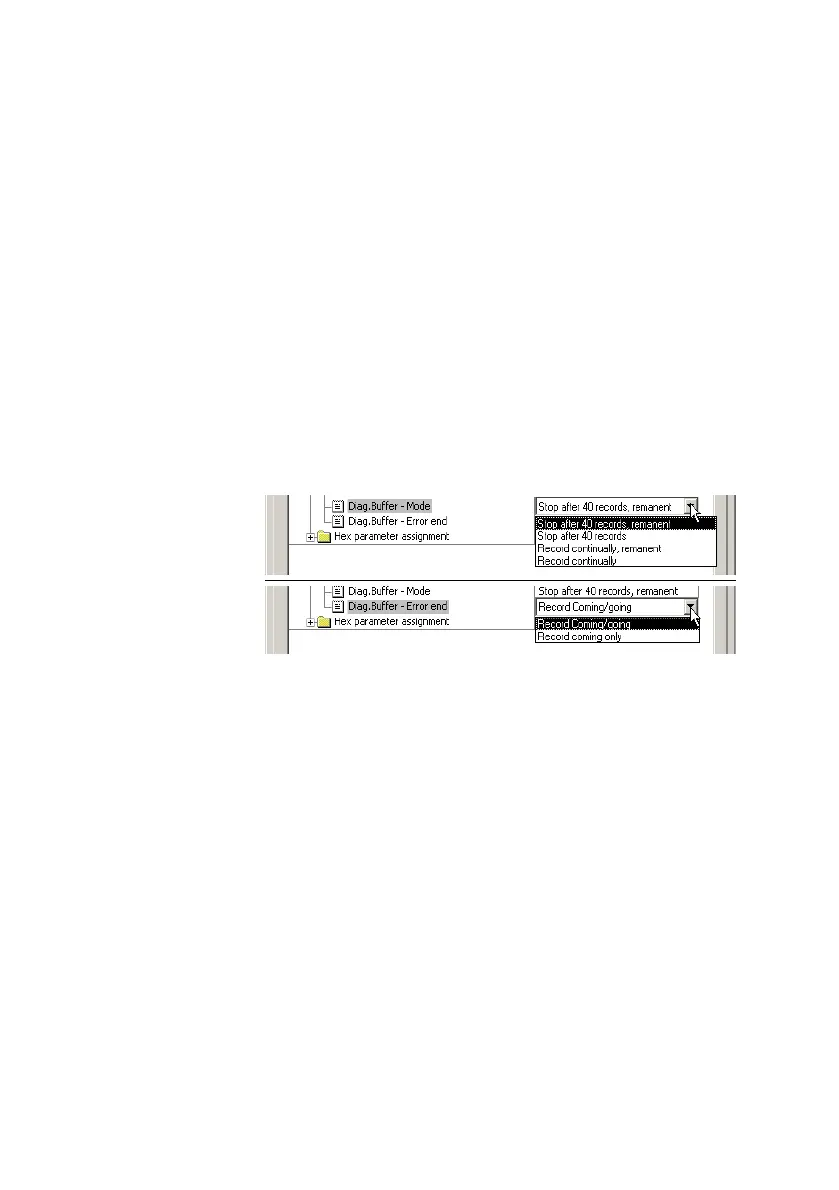

Fig.2/20: Parameterising the diagnostic memory with STEP 7
