Fire-Lite MS-9050UD - Page 210

210 MS-9050 Series Manual — P/N 52413:F 10/22/2010
Canadian Application ANN-LED Annunciator Installation for Canadian Applications
T11
T10
T9
T8
T7
T6
T1
T2
T3
T4
T5
T1
T2
T3
T4
T5
T11
T10
T9
T8
T7
T6
B-
B+
-
+
CRF-300*
EOLR-1
MMF-300*
Non-resettable
Aux Power
24 VDC- TB1
-
+
FACP
(to remote station receiver)
Notes:
1. The CRF-300 and the MMF-300
must be mapped to the same zone
which is programmed for supervisory
operation.
2. No other device can be mapped to
that supervisory zone.
3. Wire gauge must be 18AWG
minimum.
-
+
red (+)
black (-)
violet
violet
47K

resistor
TB2-
SLC Loop
Output

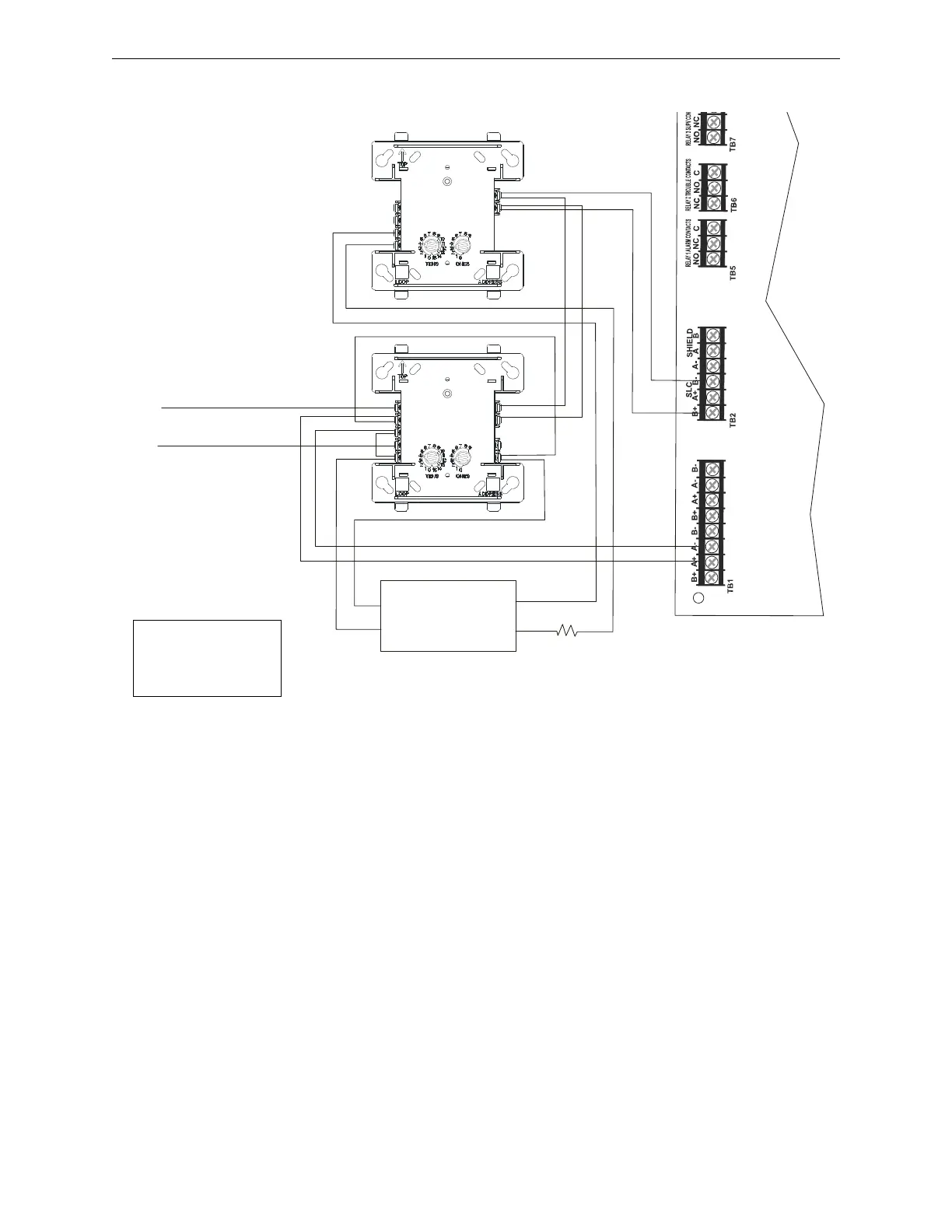

Figure H.3 Alternate Transmission for Supervisory Signals
revpol9050.wmf
+
-
T10 - Comm2
T9 - N.C. 2
T8 - N.O. 2
T7 - Comm1
T6 - N.C. 1
T1 - SLC -
T2 - SLC +
T5 - N.O. 1
-
+
CRF-300*
Terminal IDs
*If the SLC device does not match the one in this figure, refer to the SLC manual
appendix, which contains wiring conversion charts for type V and type H modules.
