MS-9050 Series Manual — P/N 52413:F 10/22/2010 211
AC Power Connections for Canadian Applications Canadian Application
H.2 AC Power Connections for Canadian Applications
For Canadian applications, an AC terminal block is supplied standard with the MS-9050UDC. The
AC terminal block is factory installed on the bottom left of the circuit board chassis.
Refer to the following illustrations for location and wiring information.
CAUTION: RISK OF ELECTRICAL SHOCK
TURN OFF ALL POWER (AC & DC) BEFORE MAKING ANY CONNECTIONS.
FACP Chassis
AC Terminal Block
AC Hot
AC Neutral
AC Ground
CAUTION! Make certain that all
power (AC & DC) has been
turned off before making any
connections.
Connect wires from AC main to
terminal block as shown.
Ground wire to FACP backbox Earth Ground stud
transformer
connections

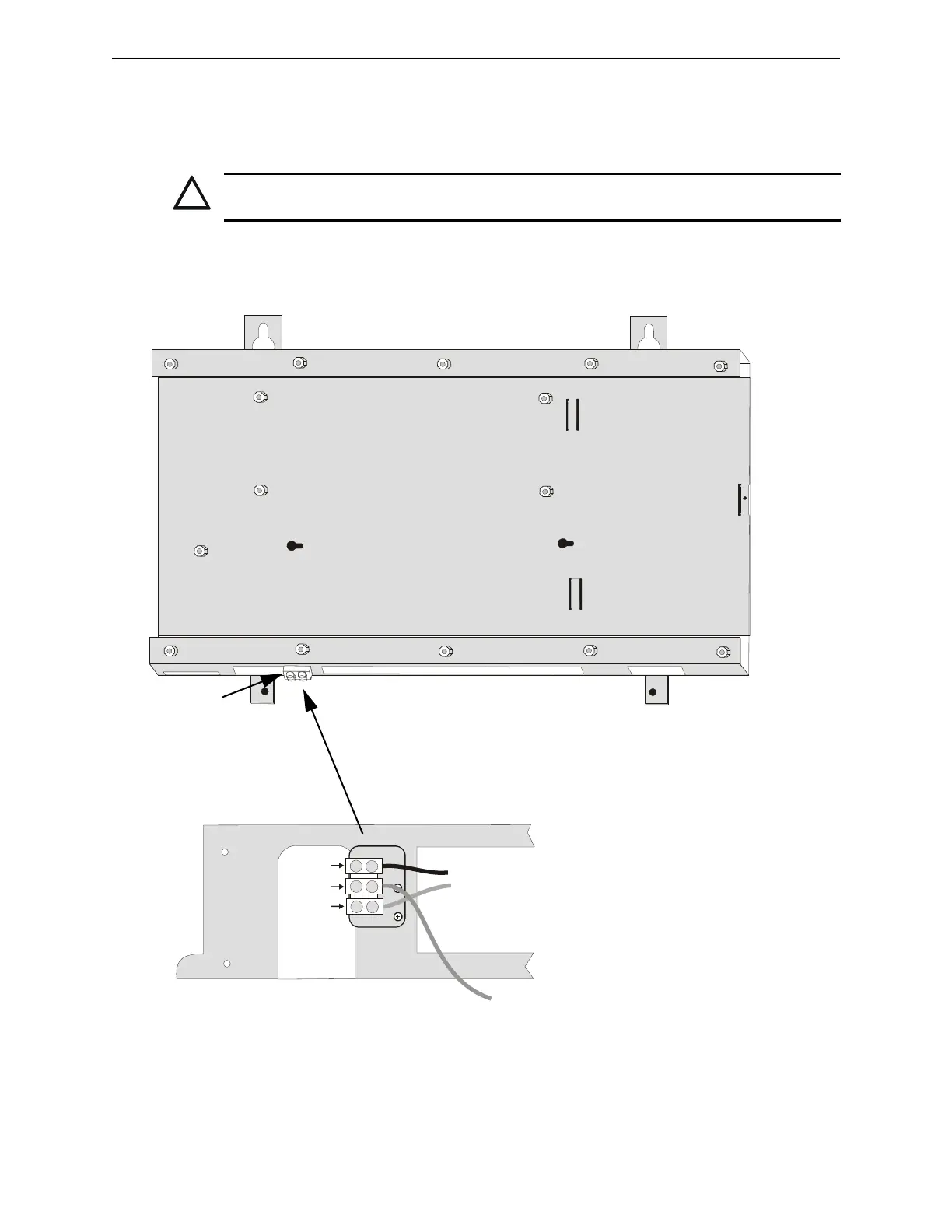

Figure H.4 AC Terminal Block Connections
9050udchassis_acterm.wmf
9050udacterm.wmf
