208 MS-9050 Series Manual — P/N 52413:F 10/22/2010
Appendix H: Canadian Application
H.1 ANN-LED Annunciator Installation for Canadian
Applications
• The FACP is supplied with a Dress Panel and one ANN-LED annunciator.
• When installing and programming the FACP, the Canadian Option must be set to ON prior to
any other panel programming (refer to “Canadian Option” on page 104 of the Programming
Section of this manual).
• The optional, local ANN-LED annunciators must be adjacent and close-nippled to the FACP
with the wiring in metal conduit.
• When using additional ANN-LED annunciators on the primary ANN-BUS circuit, a ground
wire must be daisy-chained between circuit board mounting screws on each annunciator and
then connected from the last annunciator board to the Earth Ground stud in the FACP backbox.
This applies only to the primary ANN-BUS circuit.
• If remote indicators are desired, they must be connected to the secondary ANN-BUS circuit.
This requires the use of the ANN-SEC option card.
• The installer must write in the Date of Final Assembly on the Master Marking and Warranty
Label located on the FACP backbox door.
• To comply with CAN/ULC-S559-04, the 4XTMF option must be utilized along with the
configuration shown in Figure H.3.

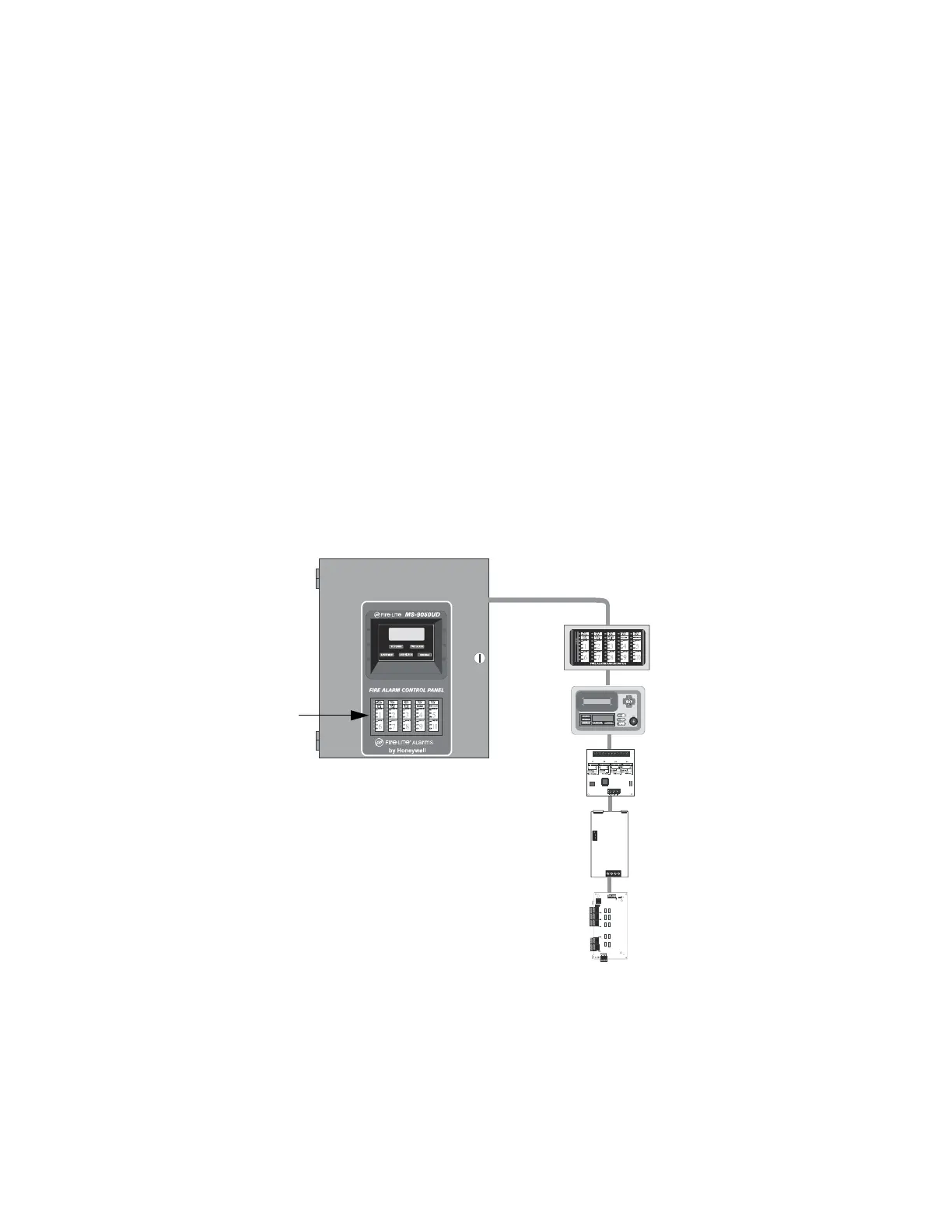

Figure H.1 FACP Minimum Configuration - Single ANN-LED Annunciator
FACP
ANN-LED Annunciator
on Primary ANN-BUS
ms_9050UDann_led.wmf
ANN-LED
ANN-80C
ANN-I/O
ANN-S/PG
ANN-RLY
Optional Secondary
ANN-BUS using
ANN-SEC Option Card.
To Next Page
