MS-9050 Series Manual — P/N 52413:F 10/22/2010 27
Mounting Chassis/Transformer/Main Circuit Board Installation

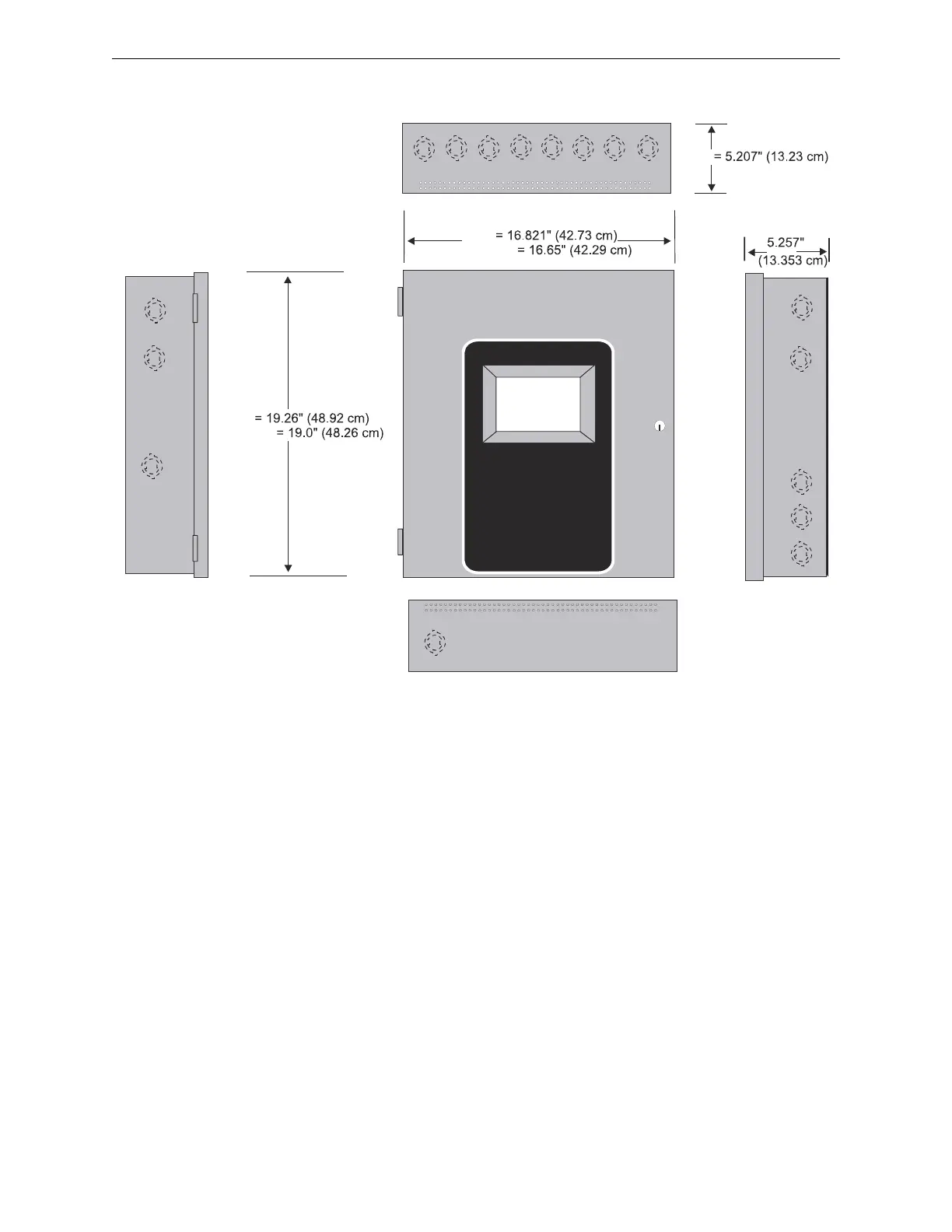

Figure 2.4 FACP Cabinet Dimensions
9050udcab2.wmf
Left Side
Right Side
Bottom
Door
Door
Backbox
Backbox
Depth =
Depth
Top
