MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 47
Mounting Optional Transformer/Remounting Chassis Installation

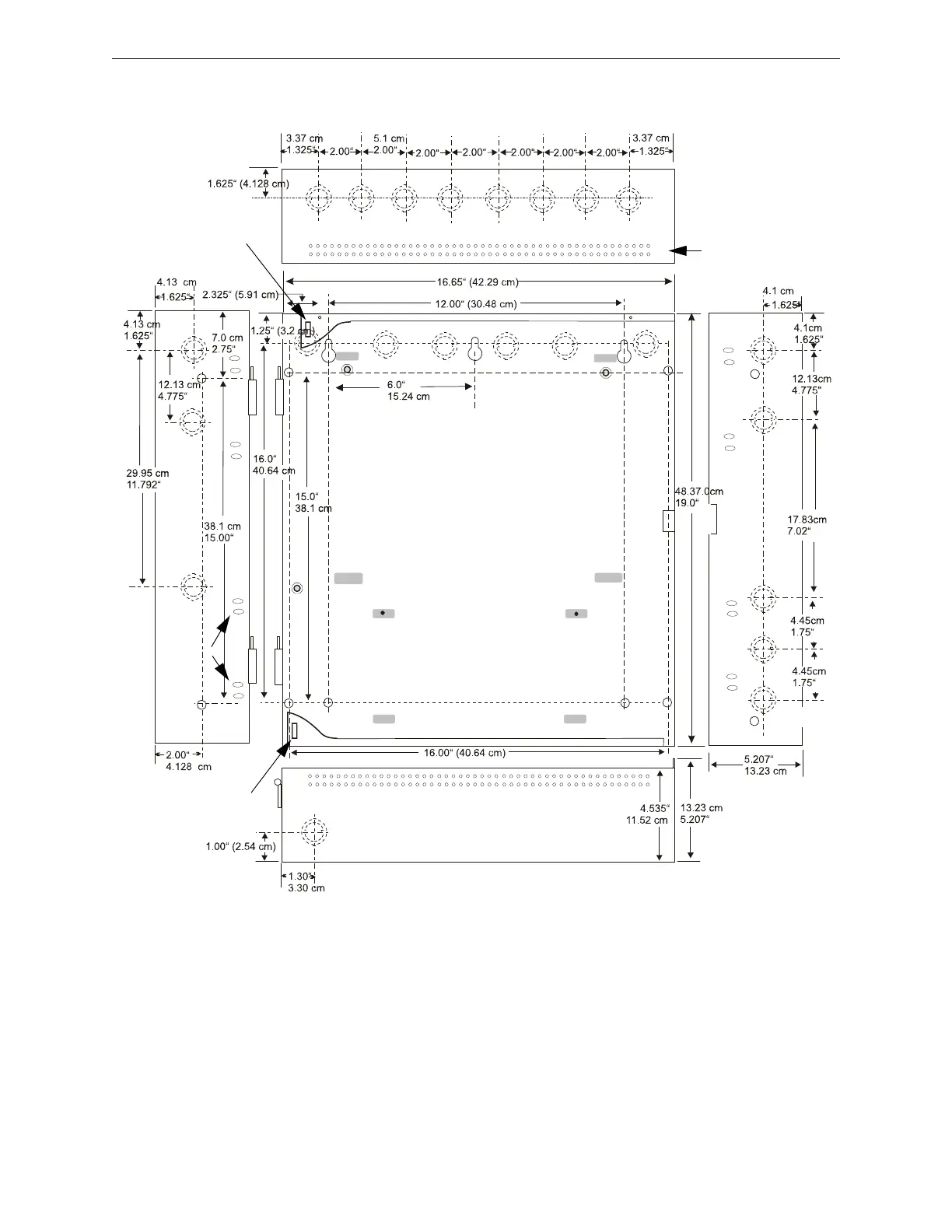

Figure 2.3 MS-9200UDLS Cabinet Mounting
9050udencl.cdr
Semi-Flush Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
Hinge Slot for optional
Dress Panel
Hinge Slot for optional
Dress Panel
Semi-flush
mounting hole
Mounting
slots for
optional
Trim Ring
