48 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010
Installation Mounting Optional Transformer/Remounting Chassis
An optional Trim Ring (P/N TR-CE-) is also available for semi-flush mount installations.

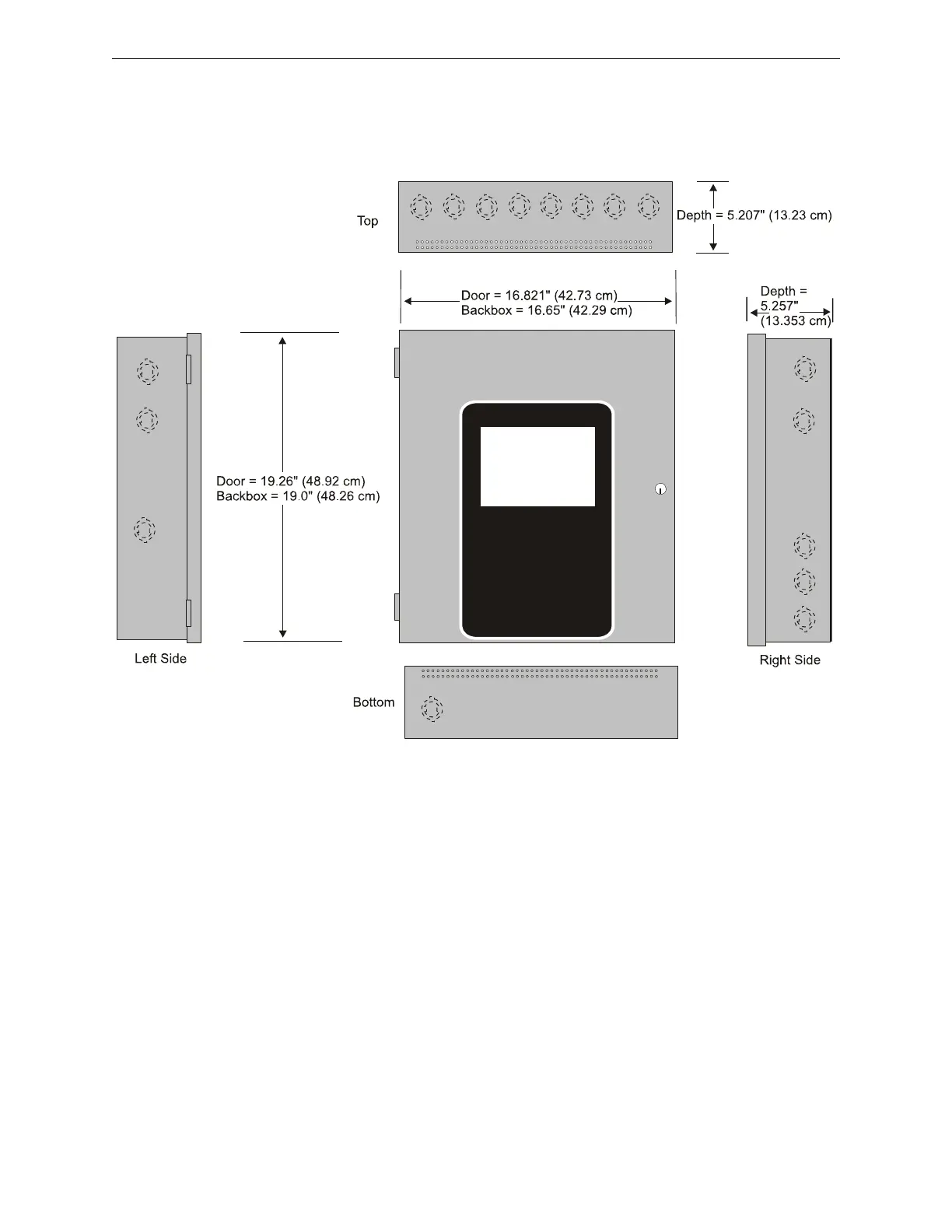

Figure 2.4 MS-9200UDLS Cabinet Dimensions
9050udcab.cdr
