478182
10
1.24 Lid Lock
Resistance: 63Ω +/- 10% @ 68
o
F (20
o
C)
Note: Normally low voltage, potentially 110V if harness is grounded on the cabinet!

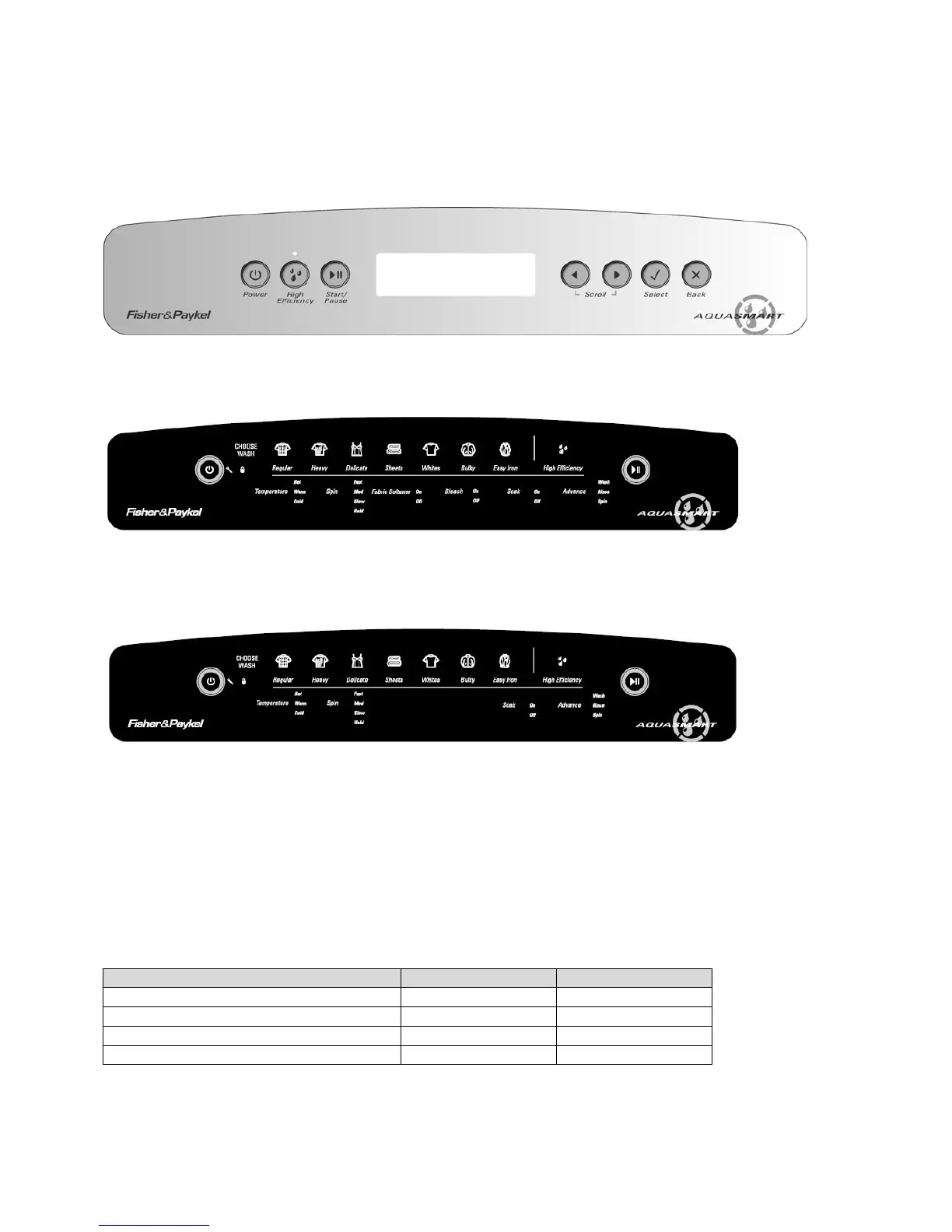

1.25 Control Panel LCD Model
1.26 Control Panel Triple Dispensing LED Model
1.27 Control Panel Non Dispensing LED Model
1.28 Important Screw / Bolt Torque Settings
Below are the important screw torque settings on the AquaSmart™ washer. These settings must
be adhered to. For all other screws and bolts that are not listed, we recommended that they are
tightened sufficiently without being over-tightened.
Screw / Bolt Torque (in/lbs) Torque (Nm)
Pump hood to cap to outer tub 27 in/lbs 3Nm
Rotor bolt to shaft 70 in/lbs 8Nm
Pump housing to outer tub 18 in/lbs 2Nm
Stator to Outer Tub 44 in/lbs 5Nm
