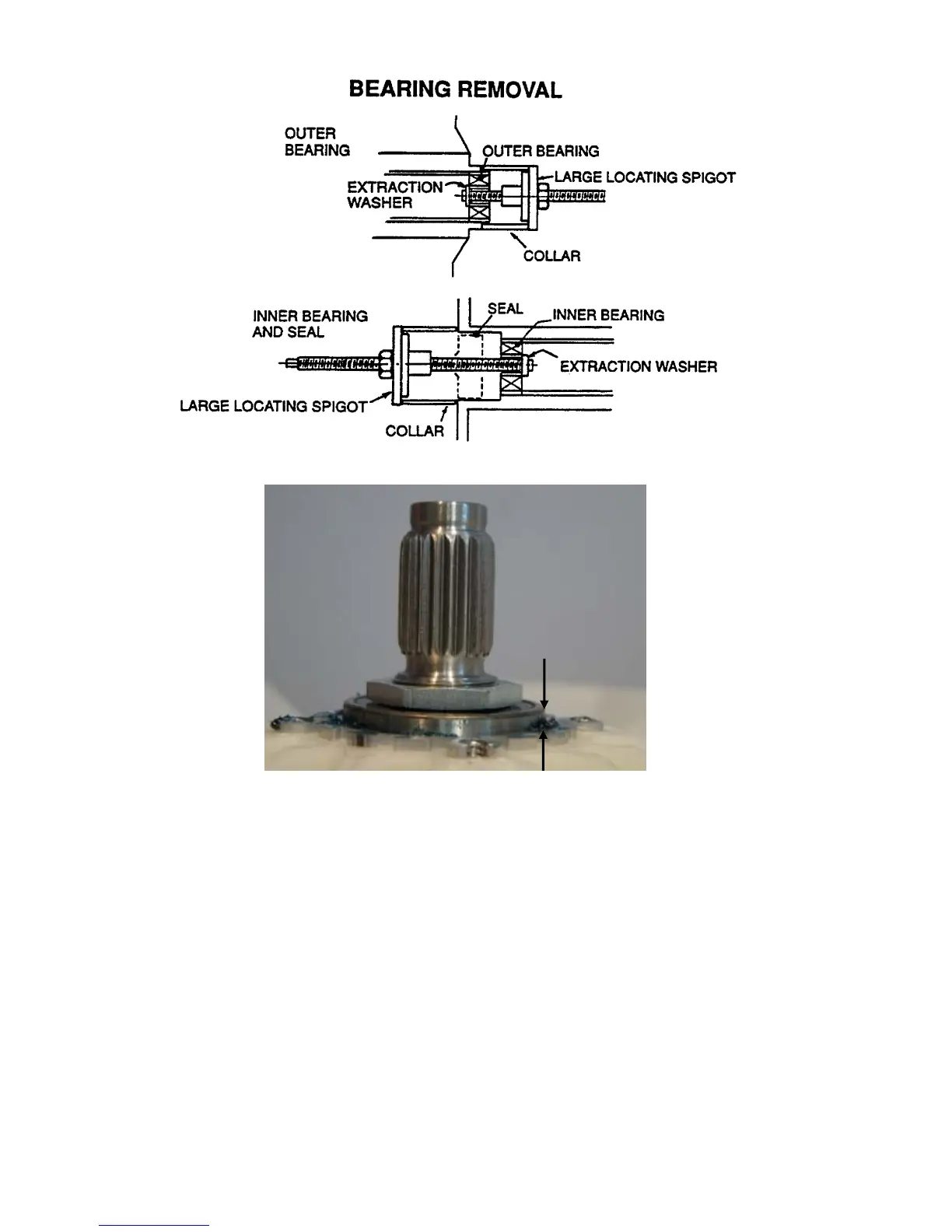

Note: The outer bearing will be proud of the housing by approximately .07in /3mm.
11.4 Shaft & Bearing Assembly
(a) The bearings must be inserted separately with the inner bearing fitted first and pulled down
with the bearing tool onto the shoulder in the bearing housing.
IMPORTANT: There must be no gap between the bearing outer race and the shoulder of the
aluminium extrusion. Remove the insertion tool at this point and check that the inner bearing is
fully home.
(b) Fit the bearing spacer and press in the outer bearing using the bearing tool. Check the spacer
has no end float but has slight sideways movement to allow for shaft insertion.
.07” / 3mm
