Fisher & Paykel AQUASMART WL37T26CW2 - Wiring Diagram and Resistance Table

478182
57

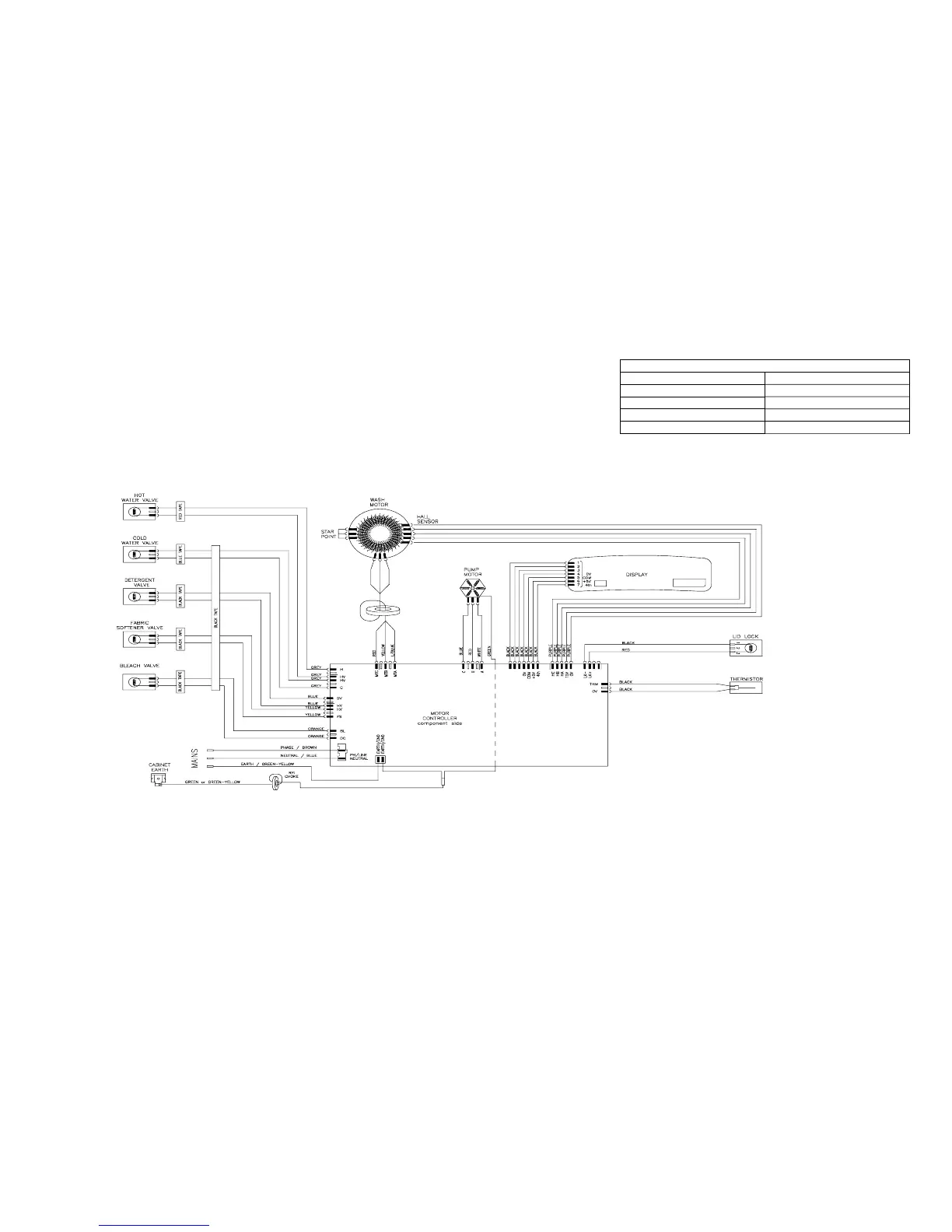

9 WIRING DIAGRAM
Resistance Table
Valve 64Ω @ 68
o
F / 20
o
C
Pump 16.2Ω
Lid Lock 63Ω +/- 10% @ 68
o
F / 20
o
C
Thermistor 10KΩ @ 77
o
F / 25
o
C
Stator 39Ω +/- 10%
