4.4 Water temperature Sensing
The thermistor for sensing the water temperature is located in the back of the outlet elbow on the
valve assembly, and is connected directly to the Motor Control Module.
Details for adjusting the wash temperature, Refer to the Use & Care Book.
Specifications
NTC-type temperature sensor (Thermistor)
Resistance 10,000Ω @ 77
o
F / 25
o
C
4.5 Water Valves

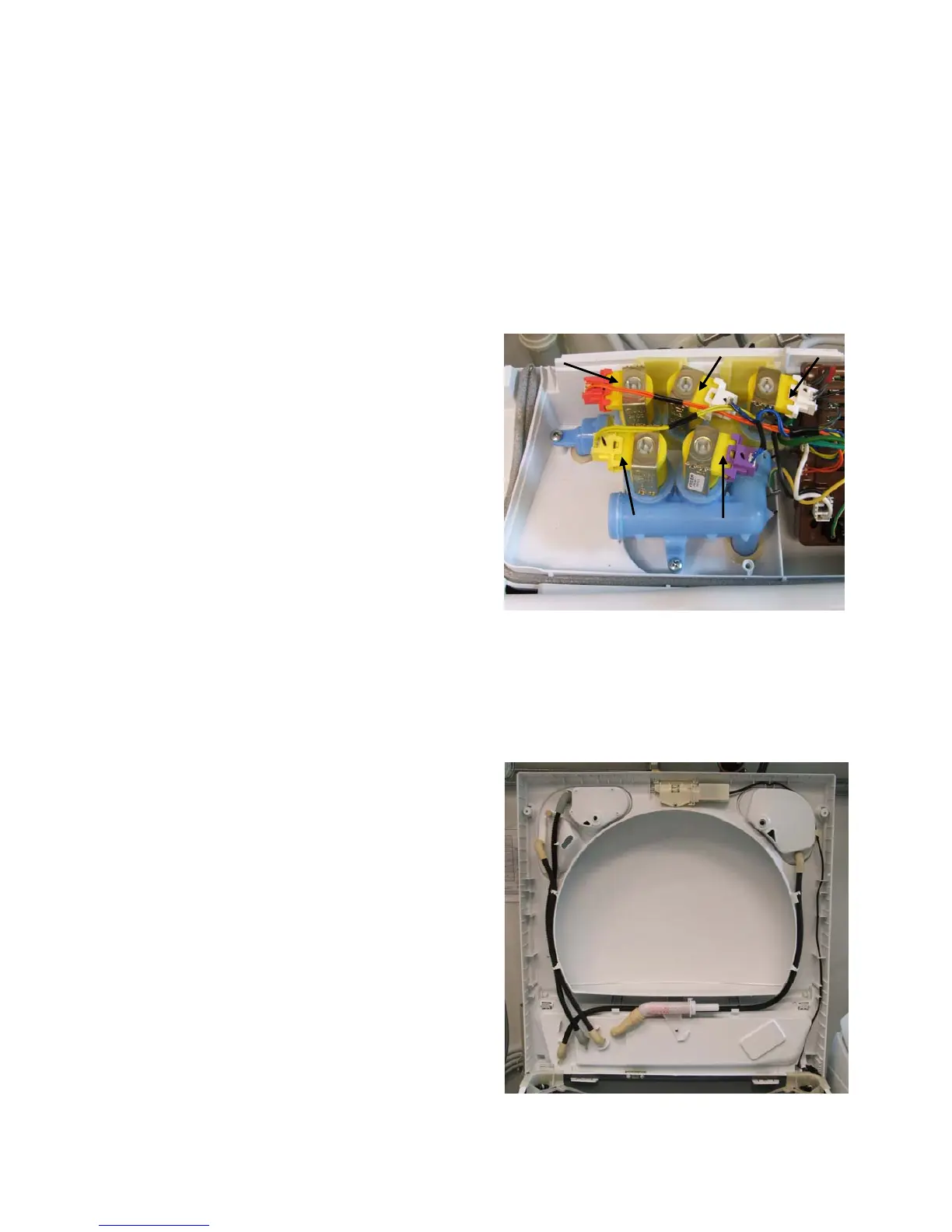

The water valve assembly incorporates up to
five valves that are joined by a common valve
body. The two main inlet coils control the flow
of water into the valve body assembly that then
in turn supplies water into the machine through
the inlet nozzle.
Up to three additional coils are used that
control the valves for the fabric, detergent and
bleach dispensing. They control the flow of
water to the fabric, detergent and bleach
dispensing system via hoses that run
underneath the top deck.
1. Hot coil (White Clip)
2. Cold coil (White Clip)
3. Fabric coil (Yellow Clip)
4. Detergent coil (Purple Clip)
5. Bleach Coil (Red Clip)
4.6 Dispensing System
Three hoses of different lengths run
underneath the top deck and connect to the
detergent dispenser, the bleach dispenser and
the fabric softener dispenser. The detergent
dispenser hose has cream elbows. The fabric
softener dispenser hose has grey elbows and
the bleach dispenser has red elbows.
Moulded into the top deck at the valve end are
identification letters (‘D’ for Detergent and ‘S’
for softener & ‘B’ bleach). At the dispenser
end are moulded the words ‘Detergent’,
‘Softener’ and ‘Bleach’.
It is important that the hoses are retained in the
clips around the perimeter of the opening of
the top deck correctly.
