6 DIAGNOSTIC MODE – LCD MODEL
To enter the DIAGNOSTIC MODE, turn the power on at the power point and off at the console.

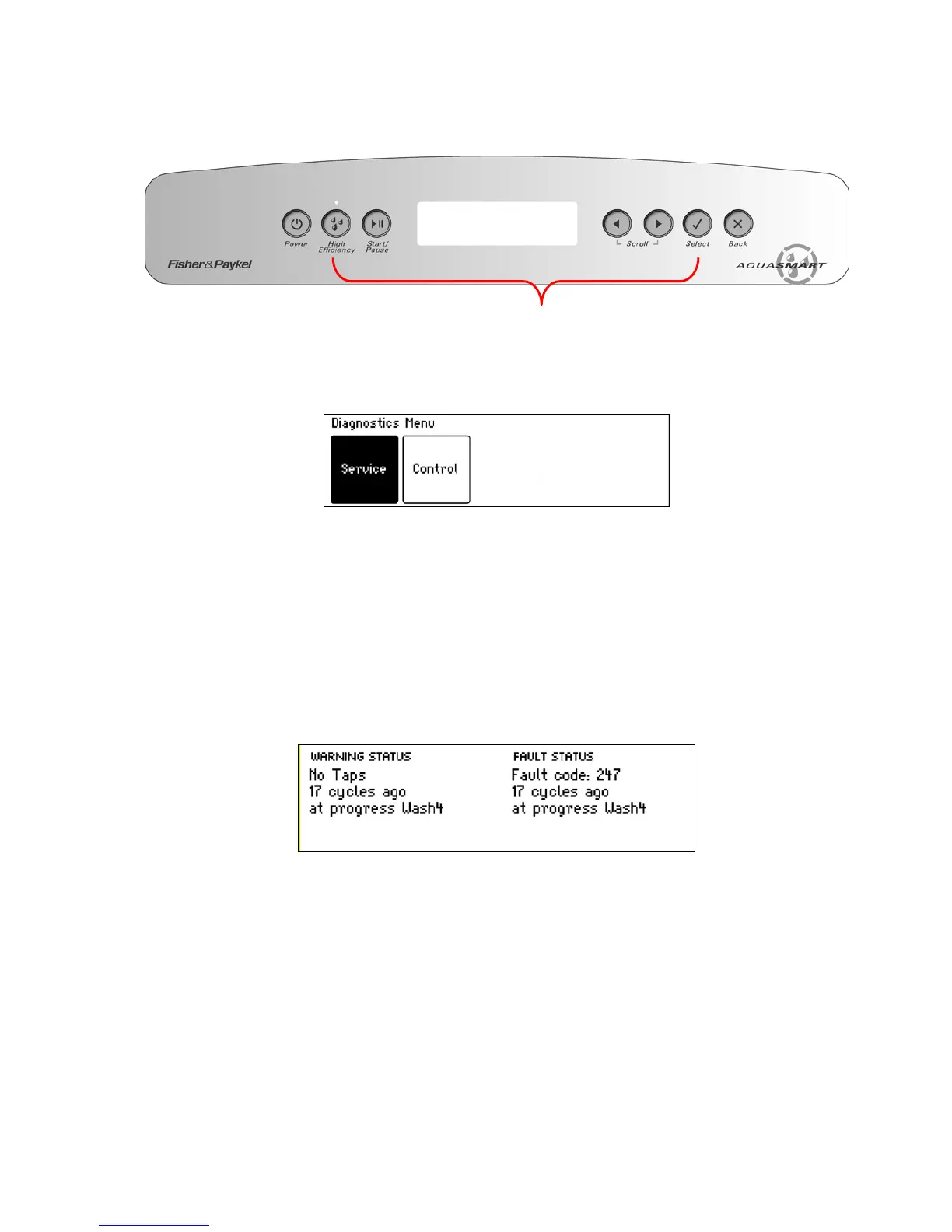

Press and hold the HI-EFFICIENCY and SELECT buttons. Keep the buttons pressed for at least 2
seconds, after which time two beeps will sound and the screen below will appear.
Use the left and right scroll arrows to highlight the screen you wish to view, then press the select
button to enter that screen.
The screens are explained below.
6.1 Service Screen
Upon entering the service screen, one of the following screens will appear
Warning Status / Fault Status
Machine Status
To scroll between the screens use the left and right scroll arrows.
6.1.1 Warning Status Screen / Fault Status Screen
Warning Status
In this screen will be displayed the last USER
WARNING FAULT that occurred and will show
how many cycles ago and in what part of the
cycle it occurred.
The User Warning Faults are as follows:
No Faucets
Overloaded
Out Of Balance
Over Suds or water still in the machine
during spin
No Hot Water
No Cold Water
Agitate Overloaded
Fault Status
In this screen will be displayed a fault code for
the last fault that has occurred and will show
how many cycles ago and in what part of the
cycle it occurred.
The fault code number can now be checked in
the detailed fault codes, to ascertain what
repairs may be necessary.
For fault code details refer to section
8.
Press and hold the HI-EFFICIENCY and SELECT buttons for 2 seconds
To Next Page
