10.8 Raising Top Deck

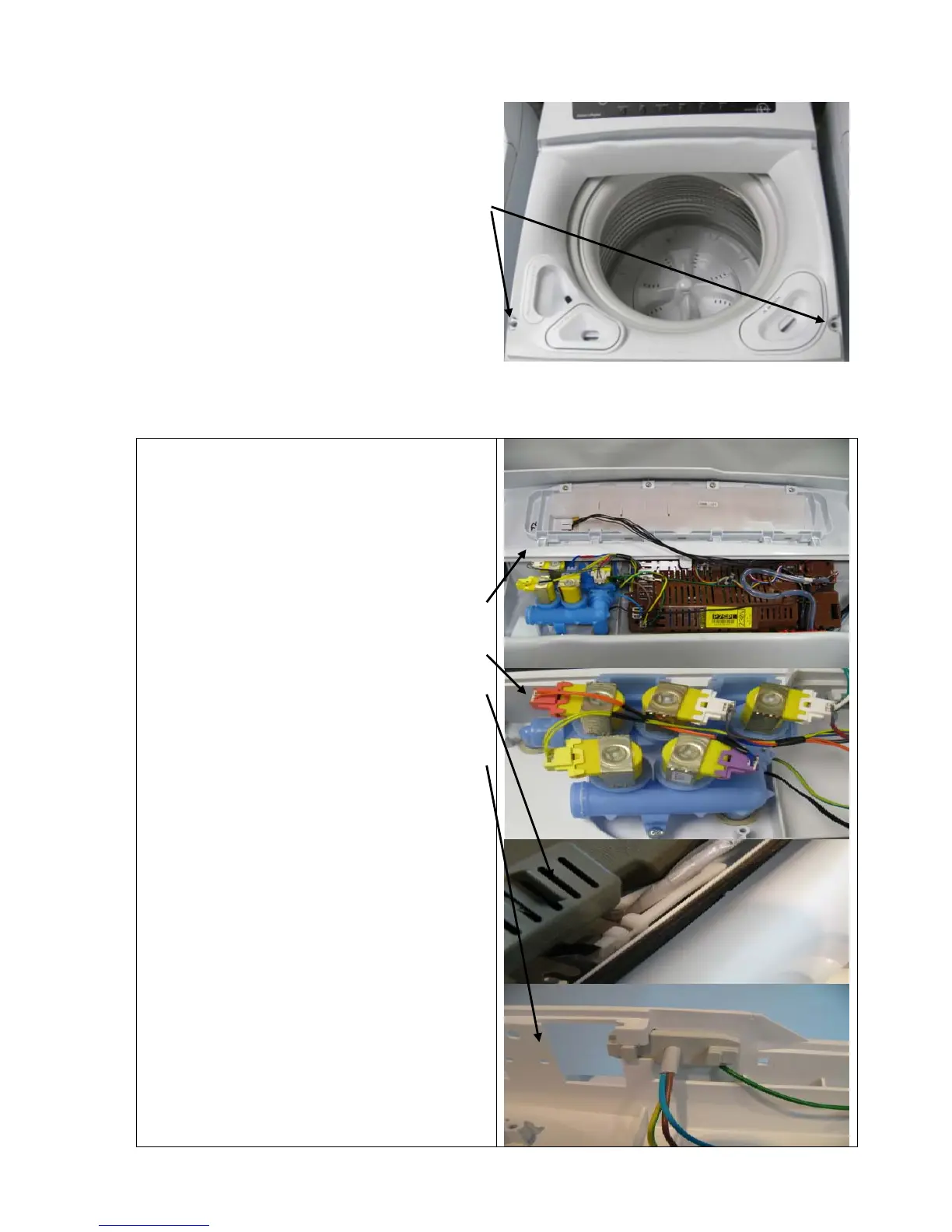

(a) Remove the lid.
(b) Carefully remove the two lid buffers from
the front side top of the deck by levering
upwards, taking care not to damage the top
deck.
(c) Remove the two screws under the buffers
securing the top deck to the cabinet.
(d) Prior to raising the top deck ensure that
there is no water, softener or bleach in the
dispenser.
(e) Raise the top deck.
10.9 Removal of Top Deck
(a) Disconnect the mains cord from the power
socket.
(b) Ensure the water faucets are turned off
(c) Disconnect the water inlet hoses from the
rear of the machine.
(d)
Remove the lid.
(e) Follow procedures for removal of display
module. (Refer to section
10.2)
(f) Follow procedures for removal of Inlet
Valve Assembly. (Refer to Section
10.3)
(g) Follow procedures for removal of Motor
Control Module. (Refer to section Error!
Reference source not found.).
(h) Follow procedures for removal of Cord Set.
(Refer to section
10.6)
(i) Carefully remove the two lid buffers from
the front left & right side of the top deck by
levering upwards, taking care not to
damage the top deck.
(j) Remove the two screws under the buffers
securing the top deck to the cabinet.
(k) Lift the top deck upwards and release the
two rear tabs.
(l) Lift the top deck clear.
