10.22 Removal of outer Tub From The Cabinet
(a) Follow procedures for removal of the Top
Deck. (Refer to Section.
10.9).
(b) Follow procedures for removal of Inner
Basket. (Refer to Section
10.16).

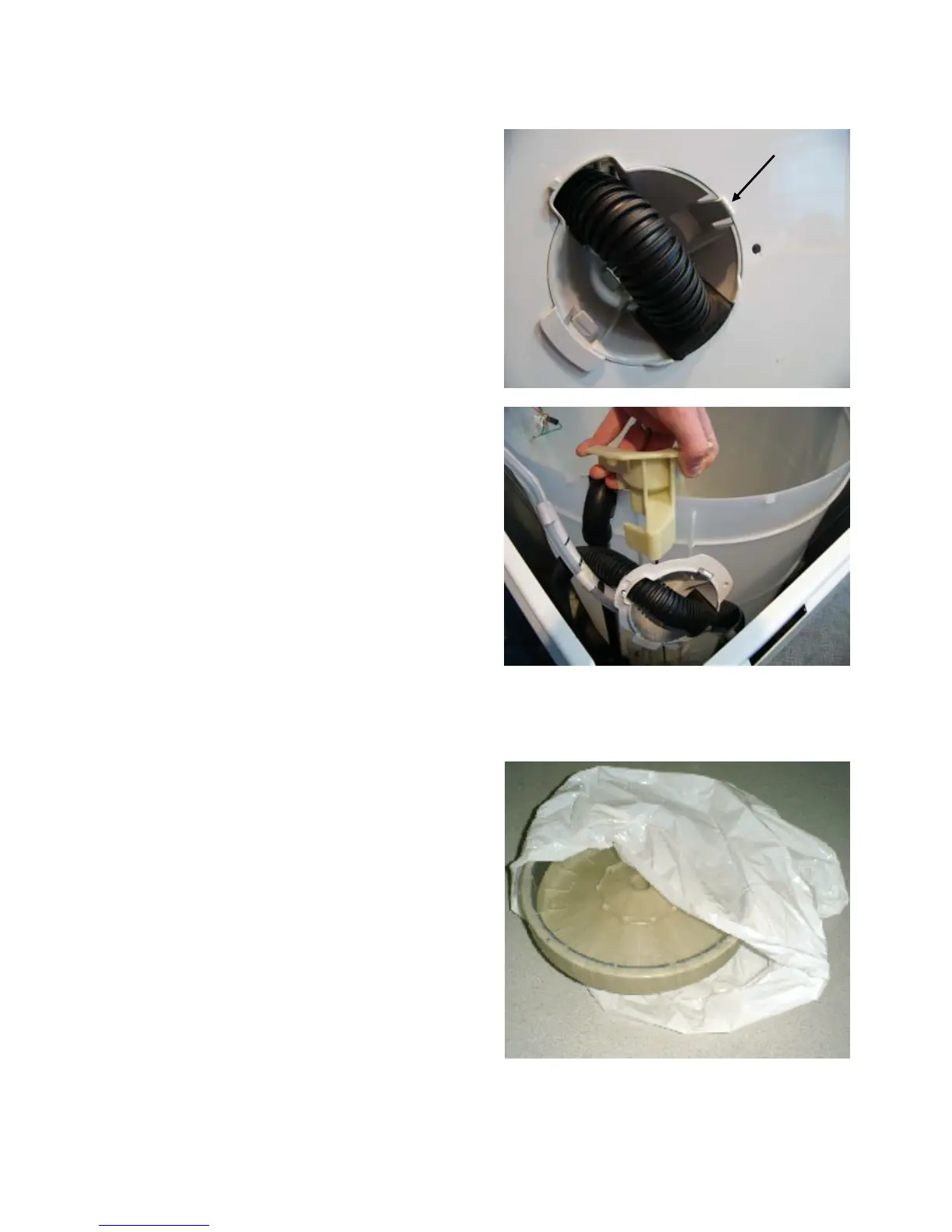

(c) Thread the drain hose back in to the
cabinet.
(d) Remove the screw securing the drain hose
fixture to the cabinet.
(e) Press tab and rotate fixture carefully so
remaining tabs clear the cabinet.
(f) Remove all four-suspension rods, by lifting
upwards on the top suspension bracket.
Start with the suspension rod that attaches
to the drain hose / wiring assembly, then do
the opposing side.
Note: The pressure tube linkage will need to
be unclipped from the suspension rod first.
(g) With the suspension rods removed from the
cabinet carefully lift the outer basket
assembly out of the cabinet, taking care not
to cut the drain hose on any sharp edges of
the cabinet.
Reassembly:
Refit in reverse manner.
10.23 Removal of Rotor
(a) Lay machine down or against a wall. If
leaning the machine against a wall ensure
that the machine is stable, and take
necessary precautions not to damage the
wall or the machine.
(b) Using 5/8” or 16mm socket, loosen Rotor
bolt. As the Rotor bolt is loosened, the
Rotor will withdraw off the base of the main
shaft.
Note: Place the Rotor in a plastic bag as the
Rotor has very strong magnets and can
attract fine metal objects.
Reassembly
Refit in reverse manner. Tighten the Rotor bolt
to a torque of 70 in/Lbs (8Nm.)
