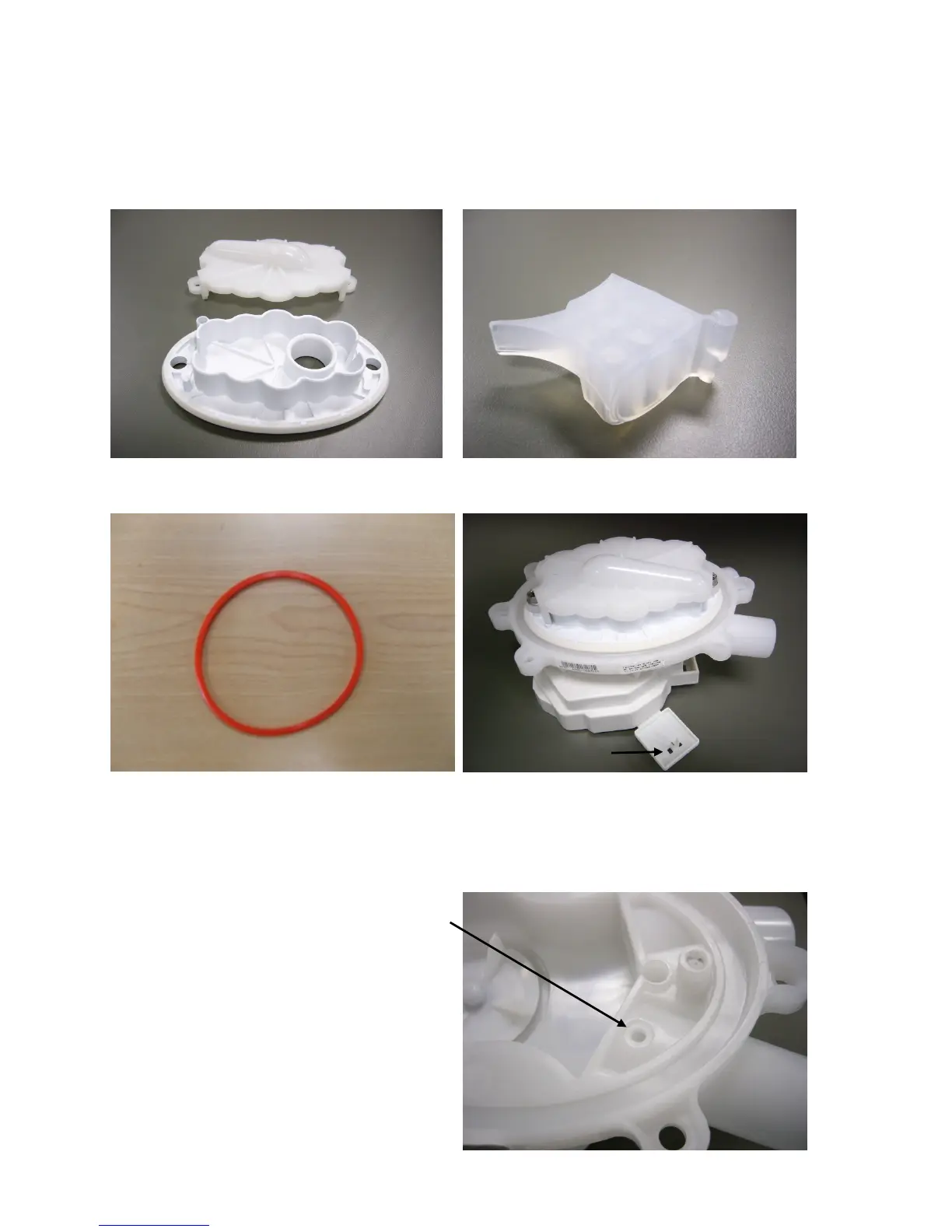

4.9.6 SmartPump™ Spare Parts
The following spare parts service kits are available for SmartPump™.
Hood And Cap (SmartPump™) Kit
P/N 479418
Flapper (SmartPump™)
P/N 420403
Seal (SmartPump™) Housing
P/N 479420
Pump Assembly (SmartPump™) Kit
P/N 479417
Note: The pump assembly is supplied with
the connector removed from the stator
shield. The cover must be fitted in place
after the wiring harness has been attached.
4.9.7 SLR Feature
SLR stands for Simplified Leak Recirculation.
This feature has been added so that should the
flapper not completely seal against the housing
of the pump when draining, water can bypass
through this hole and back into the pump,
avoiding re-circulating back into the bowl and on
to the washing load.
It is important that this hole remains clear, and it
should be checked whenever the pump is
serviced.
Connector cove
