7 DIAGNOSTIC MODE – LED MODEL
This washer has a diagnostic system to help diagnose faults. Use Diagnostic Mode 2 for non-
dispensing LED models. For all other models use Diagnostic Mode 1.
To enter DIAGNOSTIC MODE 1 for dispensing models;
Turn the power on at the power point and off at the console.
Press and hold the HI-EFFICIENCY button, then press the POWER button until you here
two beeps.
To enter DIAGNOSTIC MODE 2 for non dispensing models;
Turn the power on at the power point and off at the console.
Press and hold the EASYIRON button, then press the POWER button until you here two
beeps.
7.1 Fault Codes
Enter diagnostics then press the SPIN button three times, until both the SLOW and HOLD lights

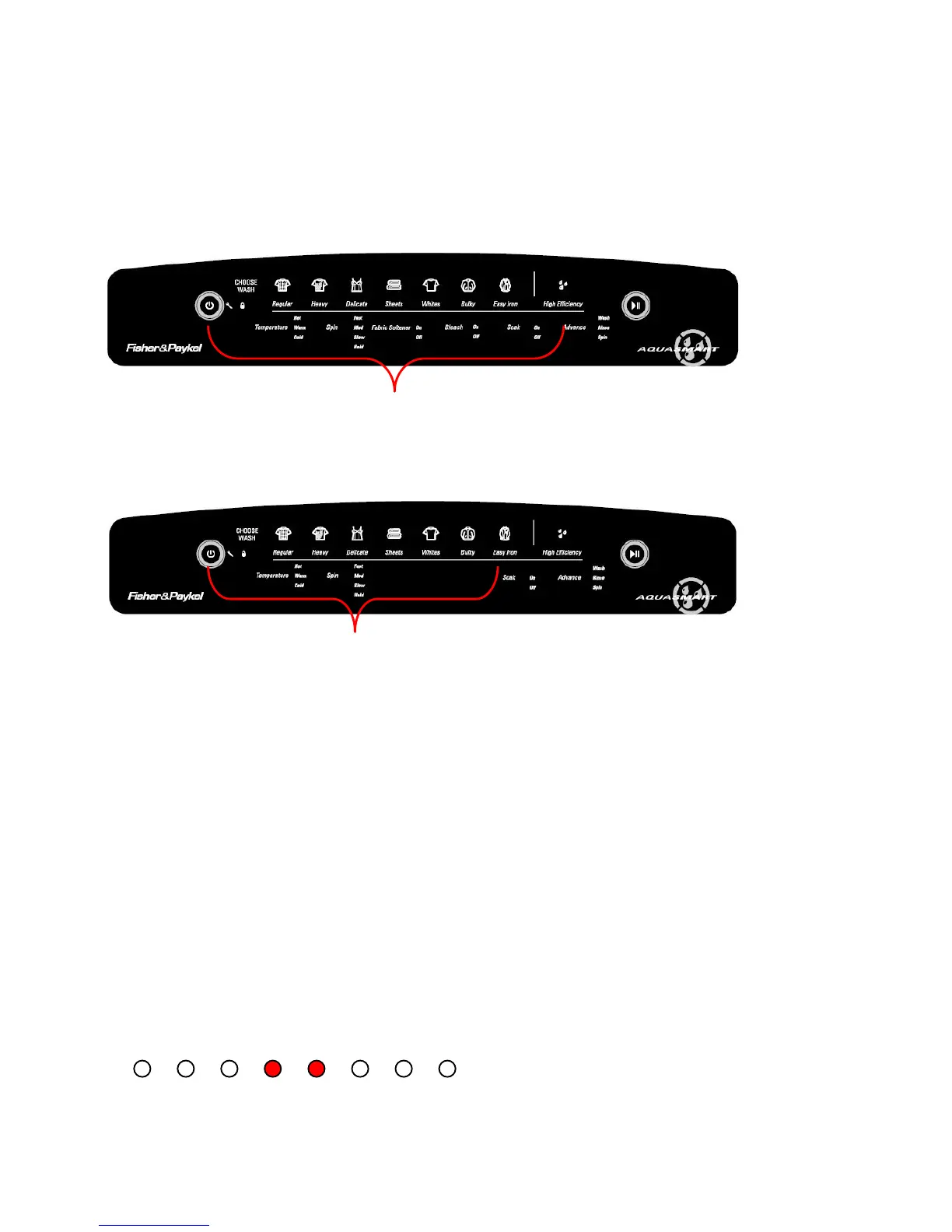

are on. The last fault code is now displayed in the wash cycle LEDs using a binary code. Each
LED has a value as follows:
LED VALUE
Regular = 128
Heavy = 64
Delicate = 32
Sheets = 16
Colours = 8
Bulky = 4
Easy Iron = 2
Hi Efficiency = 1
The fault code is determined by adding up the value of the illuminated LEDs.
For Example:
128 64 32 16 8 4 2 1
This is Fault Code 24 – Dispensing type not set.
