DC100 MAX Digital Dispenser Operating Manual
© 2023 Fisnar - 10 - DC100 MAX Rev 4

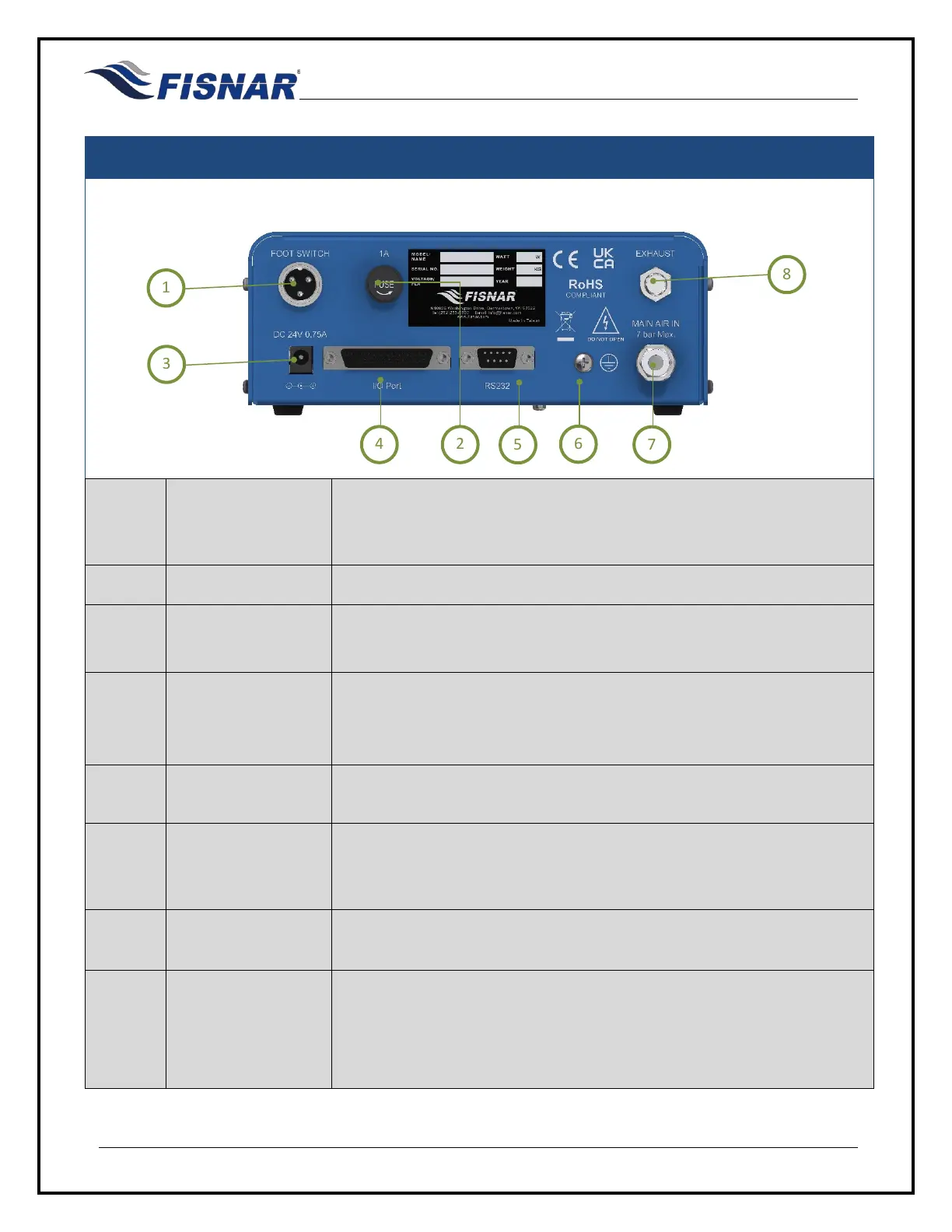

EXTERNAL CONTROLS
1.
Foot Switch
Connector
The foot pedal switch is connected here. Alternatively, it can be used
for connecting to an external device (e.g. Fisnar dispense robot) that
will send the dispense start signal to the machine.
2 Fuse The machine fuse is located here.
3.
Power Input
Connector
Power input cable from the external power supply is connected here.
4. I/O Connector
Where the external machine I/O input signals and output signals are
connected.
A courtesy 24V + output is also included on the I/O Connector
5. RS232 Connector
Used for externally programming and controlling the machine.
Alternatively, a barcode scanner can be plugged into this connector.
6. Grounding Point
A wire from an external earth ground
source within the workplace
environment can be connected here
to ensure the machine is
permanently and safely grounded.
7. Air In Port
External Compressed air 70-100 psi (5-7 bar) is connected here,
using the supplied ¼” OD air inlet hose.
8. Exhaust
When the suck-back control is in use, air will be exhausted from this
port in between dispense cycles.
A muffler (560024-DCHF) can be fitted into the exhaust outlet port to
reduce the emitted noise of the exhausted air.
8
1
3
4
7
2
5
6
