DC100 MAX Digital Dispenser Operating Manual
© 2023 Fisnar - 9 - DC100 MAX Rev 4

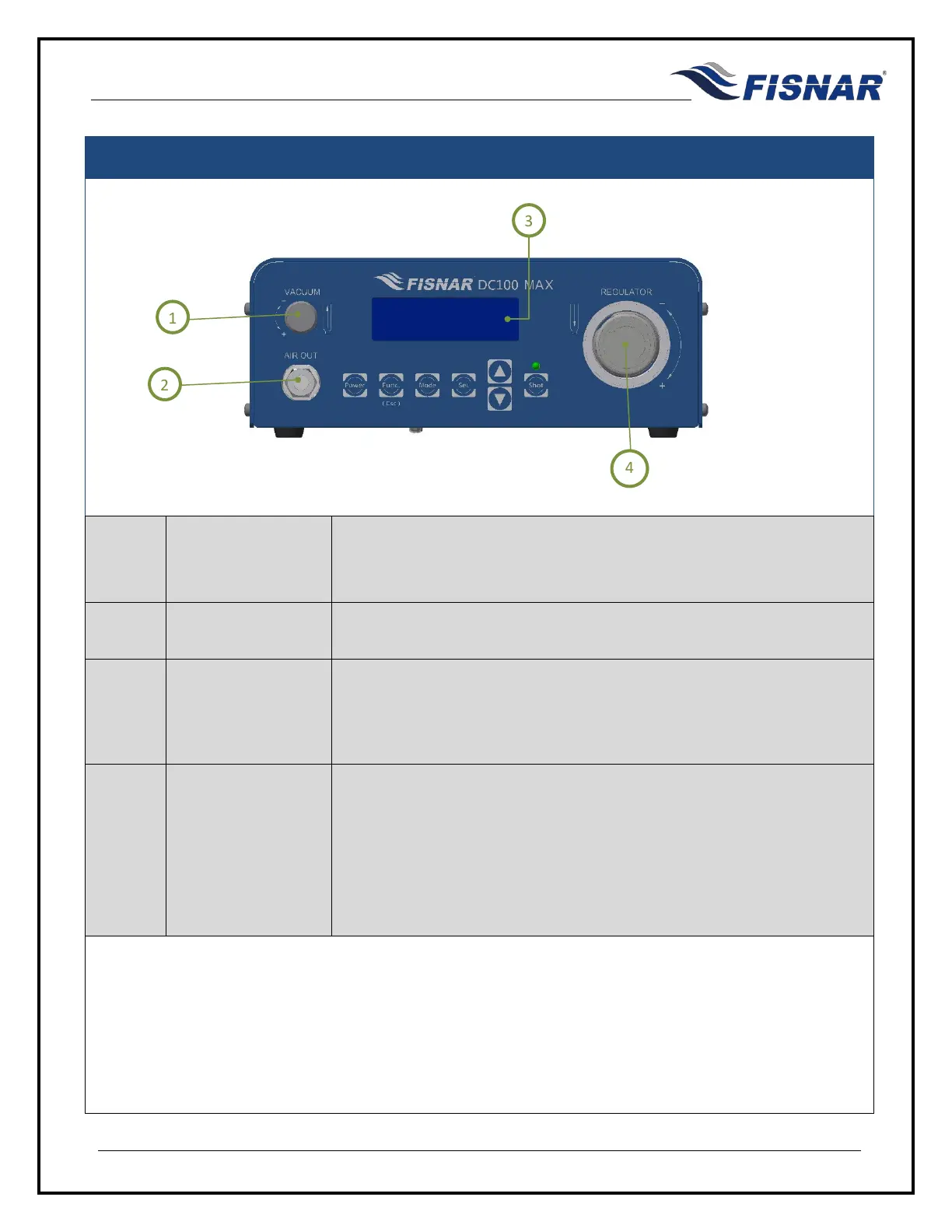

1. Suck Back Control
Keeps a negative air pressure in the syringe barrel when not
dispensing. Required to prevent low viscosity fluids dripping from the
dispense tip in between dispense cycles.
2. Air Out Port The syringe barrel adapter head assembly is connected here.
3. Display Screen
Shows the current program number, dispense mode, parameter
values and active function alarms of the machine.
For further information, please refer to display screen overview.
4. Pressure Regulator
Adjusts the amount of pressure being used to dispense fluid from the
syringe barrel. To reach the desired pressure, turn the knob
counterclockwise to a point below the required pressure, and then turn
the knob clockwise to reach the required pressure.
The regulator can be locked into position by tightening the jam nut
behind the knob against the regulator body on the front panel of the
machine.
