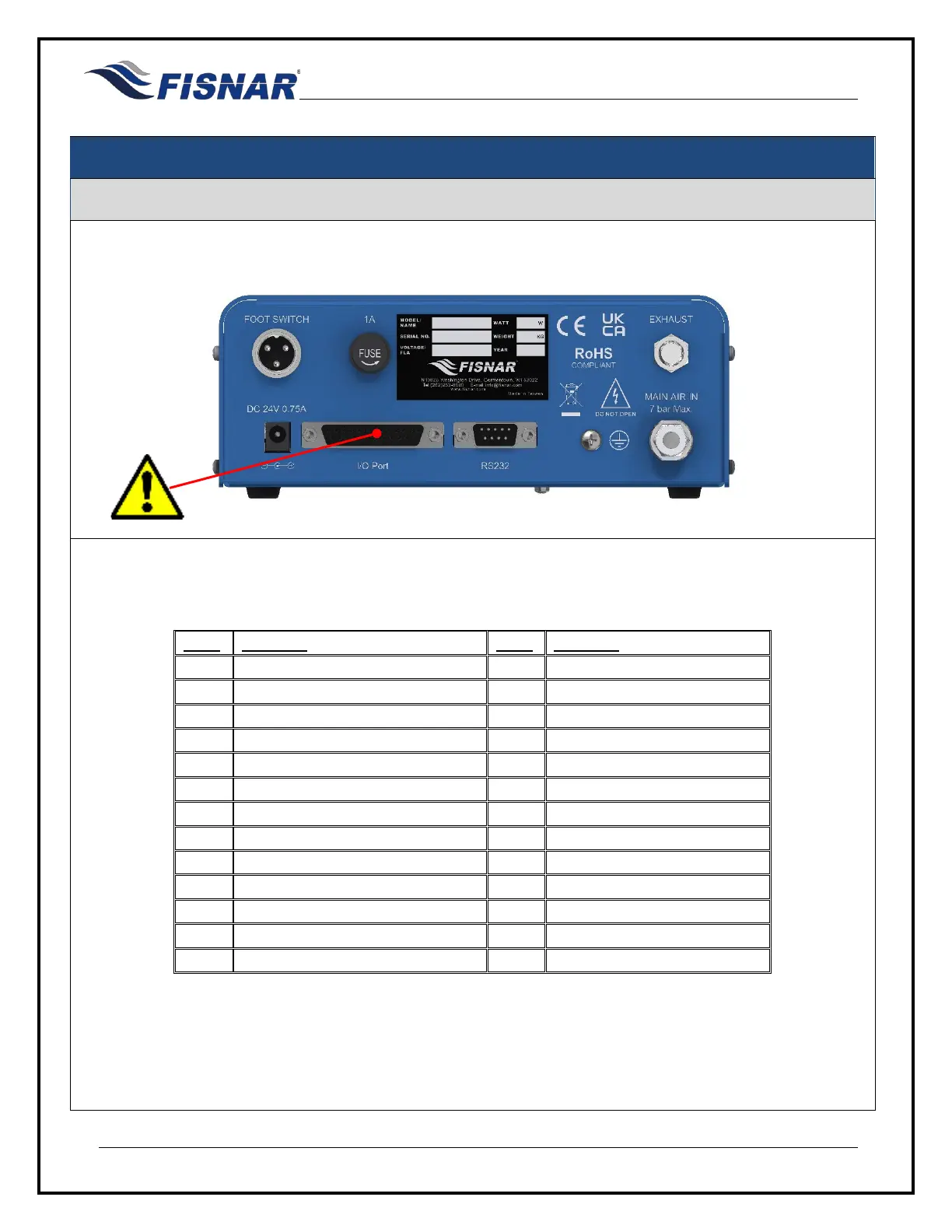

I/O CONNECTOR
Schematic
Pin #
Function
Pin #
Function
1
24V+ Internal Power OUT
14
Machine Ready OUT
2
Internal Ground (GND)
15
Internal Ground (GND)
3
Contact Closure Initialize IN
16
Clear/Reset IN
4
Alarm IN
17
Internal Ground (GND)
5
Internal Ground (GND)
18
Bit 0 IN
6
Alarm OUT
19
Bit 1 IN
7
Internal Ground (GND)
20
Bit 2 IN
8
Start Signal IN 24V+
21
Bit 3 IN
9
Start IN GND (0V)
22
Not Used
10
Machine Busy OUT
23
Not Used
11
Internal Ground (GND)
24
Not Used
12
End of Cycle OUT
25
Program Select IN
13
Internal Ground (GND)
