DC100 MAX Digital Dispenser Operating Manual
© 2023 Fisnar - 61 - DC100 MAX Rev 4

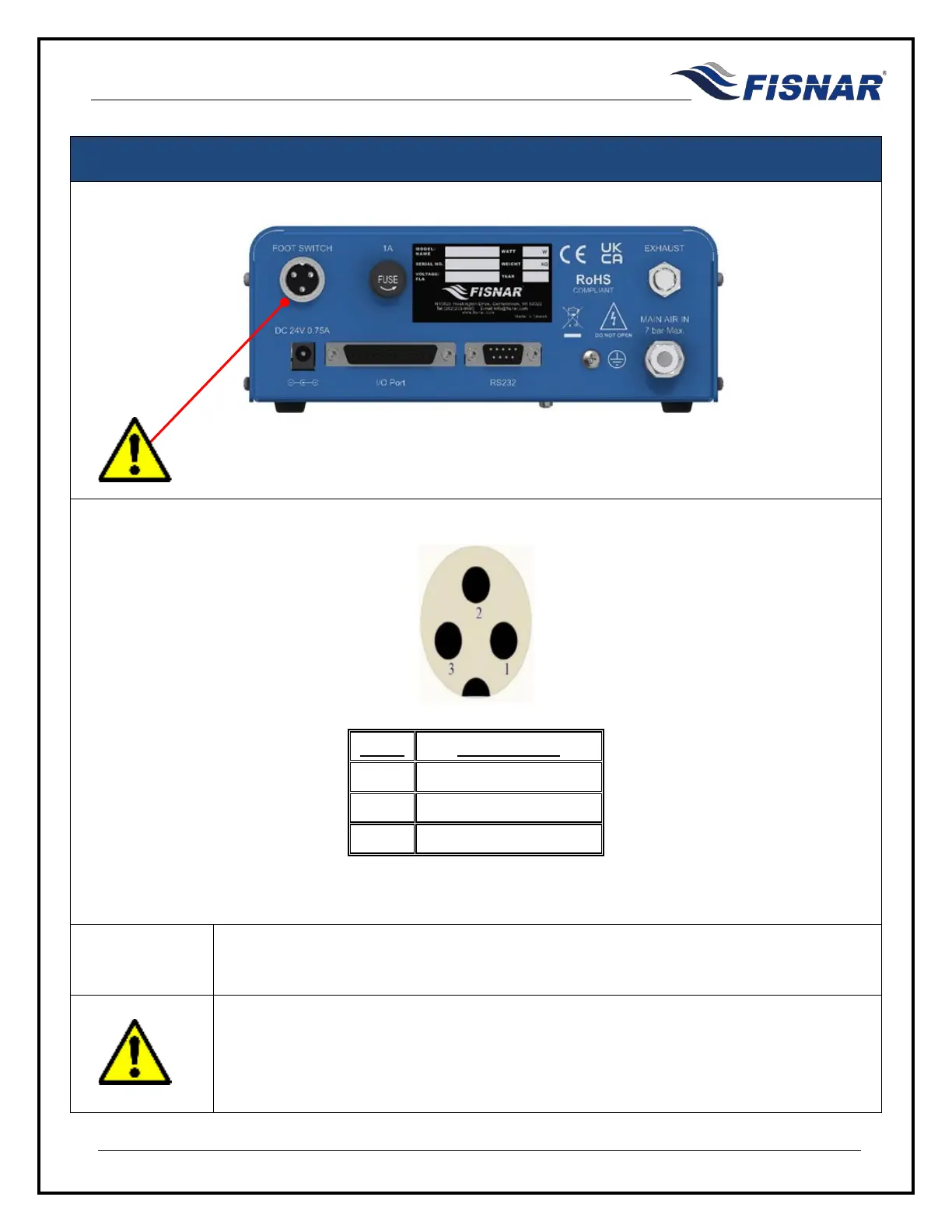

FOOT SWITCH CONNECTOR
Pin #
Description
1 NO (Normally Open)
2 COM (Common)
3 Not Used
External Machine Actuation
Input
A dry contact closure (0 Volt) between the Input (Pin #1) and Common (Pin #2) pins
will trigger a dispense signal.
PLEASE READ:
Do not apply a voltage between the input pin (1) and the common pin (2). Doing
so will damage the control board and void all warranty conditions.
