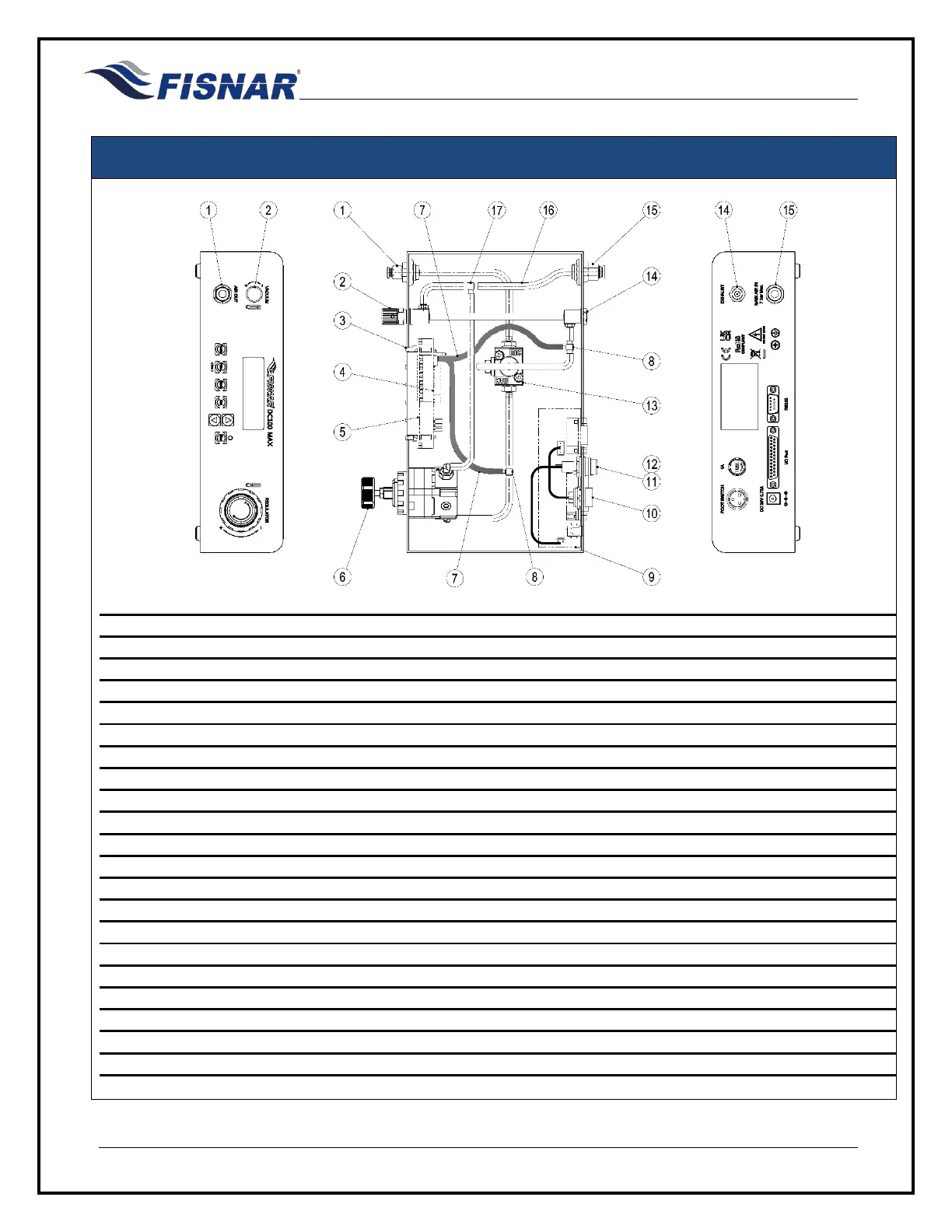

SPARE PARTS LIST
Item
Part Number
Description
1
5601872
Air Out Module
2
5601873
Vaccum Throttle
3
5601974
Button Patch Board
4
5601975
Control Board
5
5601976
LCD Display
6
5601891
Pressure Regulating Valve
7
5601886
Ø4mm Black PU Tubing
8
5601878
T-Style Barb Joint
9
5601977
Power Transfer Board
10
5601880
Dispenser Connector Wire
11
5601881
Fuse Wire
12
5601882
Fuse
13
5601898
Solenoid Module
14
5601884
Vacuum Valve
15
5601885
Air In Module
16
5601887
Ø6mm Transparent PU Tubing
17
5601894
T-Style Barb Joint (6mm)
18*
5601890
Power Adaptor (Input: 100 – 240 VAC / Output: 24 VDC)
19*
5601888
Foot Pedal
20*
561851
Air Inlet Hose Assembly
21*
5601969
FSX Syringe Barrel Stand
22*
5779K712
Push to Connect Tube Fitting 1/4" Stem OD X 5/32" Tube OD
*Item Not Shown
