FLIR M5104 - Load

To Next Page

To Previous Page

Using the Main Menu15

15.2.6 Load

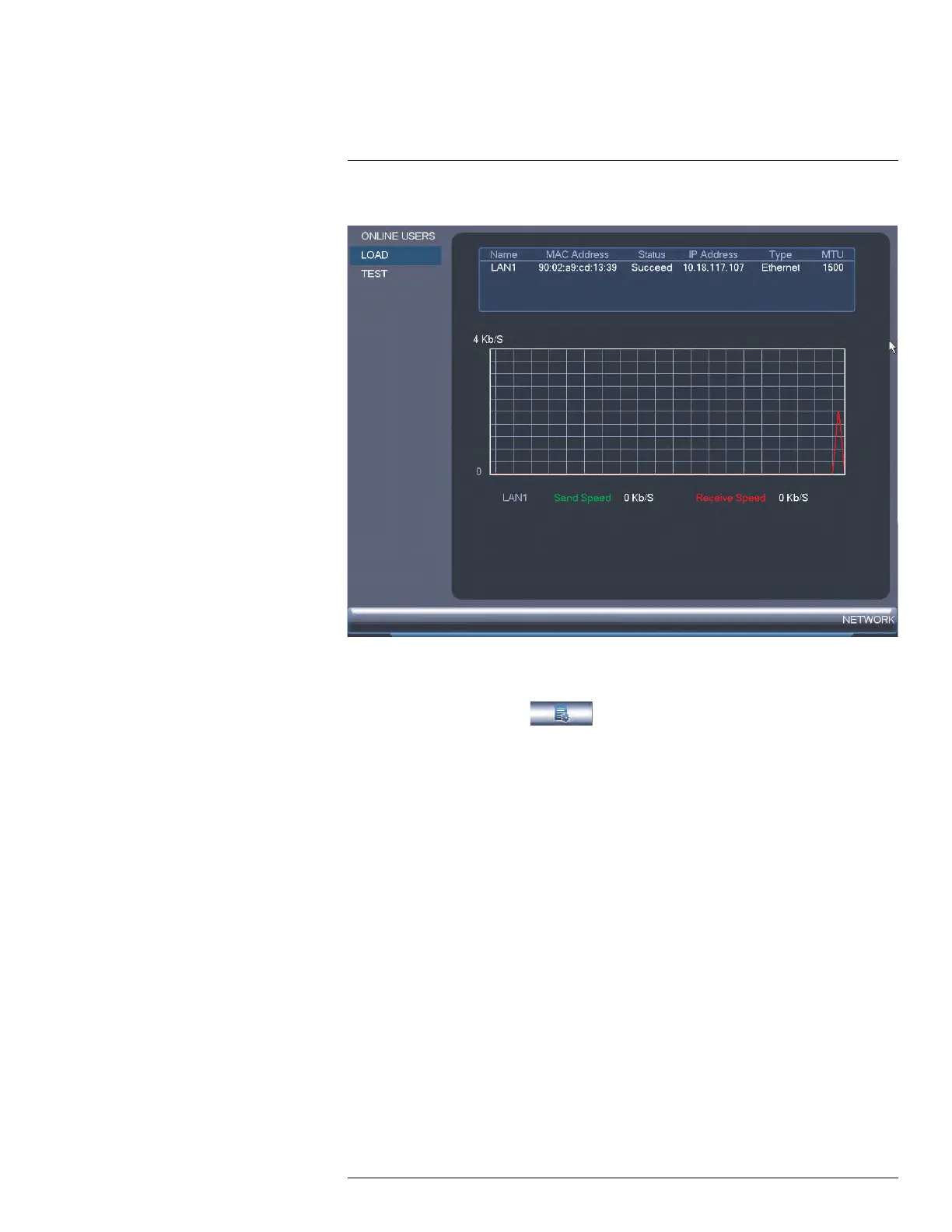

The Load menu shows you the network traffic your system is sending and receiving.

To access Load:

• From the Main Menu, click

and then select Network>Load.

#LX400096; r.45547/45547; en-US
