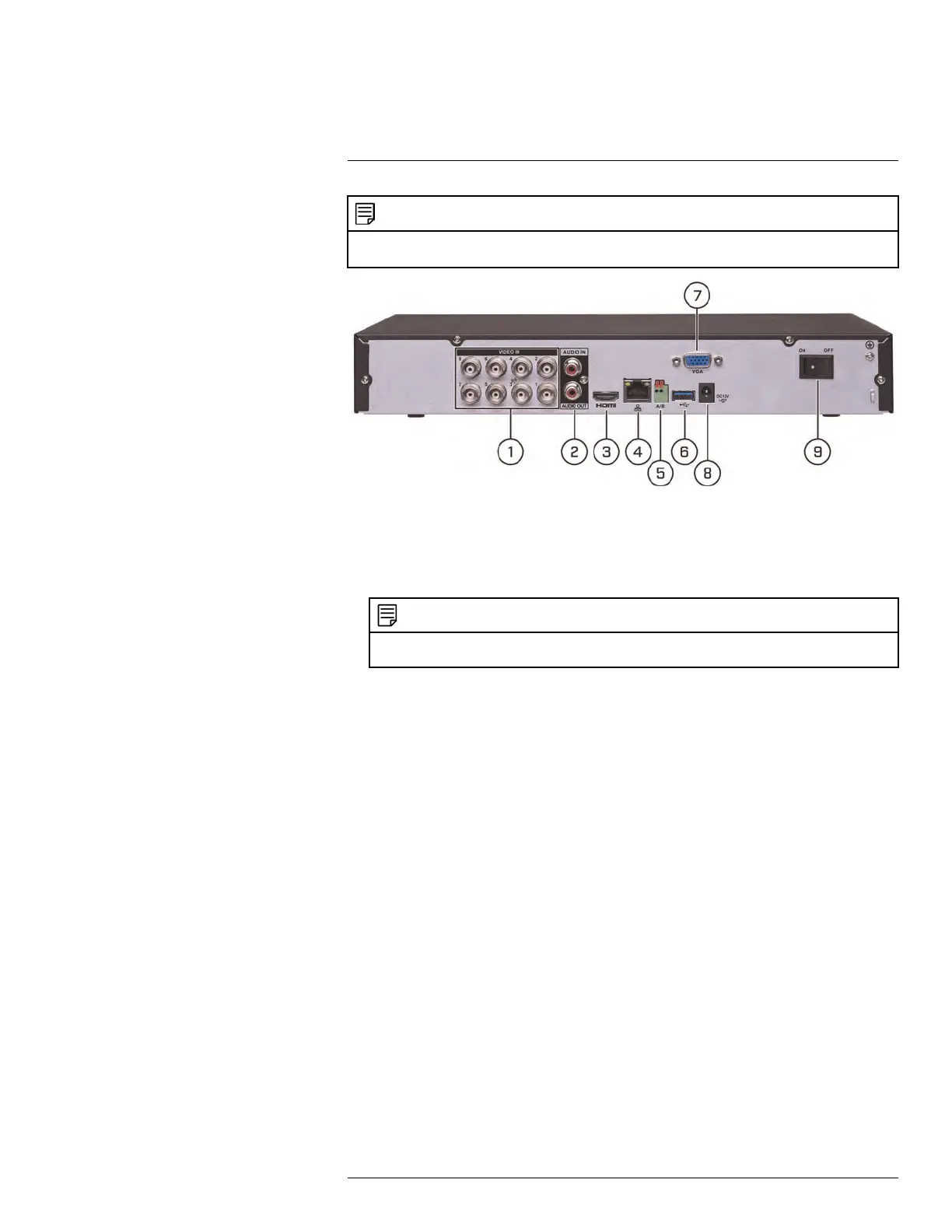

Rear Panel (M5100 Series)
4
NOTE
DVR back panel shown below is for illustration purposes only. Your DVR model may appear slightly differ-
ent, with the same ports in different positions on the back panel.
1. Video input: Connect FLIR MPX or standard analog cameras to the system.
2. Audio IN/Audio OUT: RCA input and output for 1–channel audio recording.
3. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
4. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
5. A/B: Connect RS485 cables.
NOTE
For full details on connecting PTZ cameras, see 21 Connecting a PTZ Camera (M5100 Series), page
164 for details.
6. USB port(s): Connect a USB mouse (included) or USB flash drive (not included) for
data backup or firmware updates.
7. VGA: Connect a VGA monitor (not included) to view the system interface.
8. DC12V: Connect the included power adapter.
9. ON/OFF switch: Turns the DVR on or off.
#LX400096; r.45547/45547; en-US
