Basic Setup (M5100 Series)
5
NOTE
DVR back panels shown below are for illustration purposes only. Your DVR model may appear slightly dif-
ferent, with the same ports in different positions on the back panel.

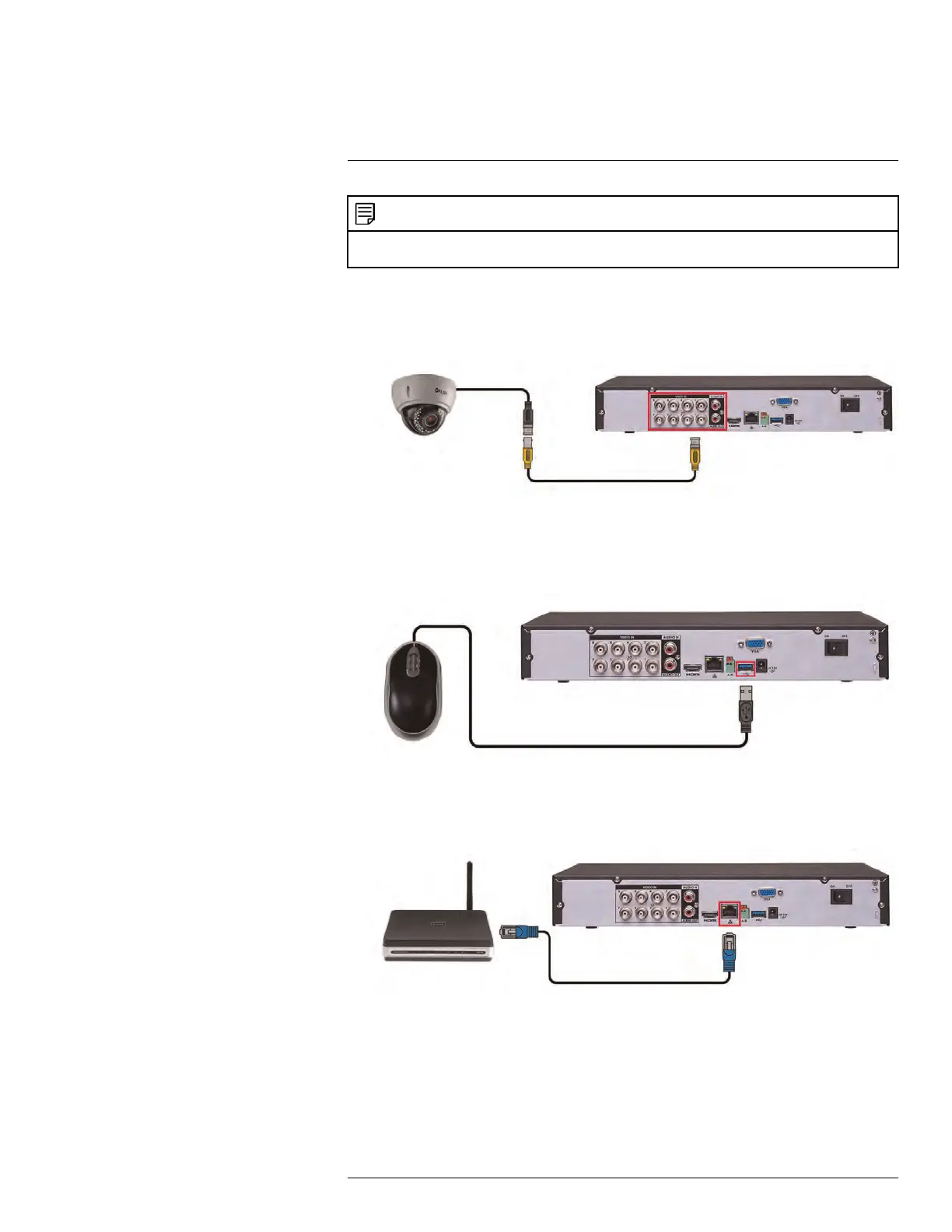

5.1 Step 1: Connect the BNC Cameras
• Connect FLIR MPX or standard analog cameras to the Video Input ports on the rear
panel of the DVR.
Push and twist the BNC connector clockwise to secure it to the BNC port.
5.2 Step 2: Connect the Mouse
• Connect a USB mouse (included) to one of the USB ports.
5.3 Step 3: Connect the Ethernet Cable
• Connect an Ethernet cable (included) to the LAN port on the rear panel of the DVR.
Connect the other end of the Ethernet cable to a router on your network.
5.4 Step 4: Connect the Monitor
• Connect the included HDMI cable from the HDMI port to the TV or monitor
(recommended).
OR
• Connect a VGA cable (not included) from the VGA port to the monitor.
#LX400096; r.45547/45547; en-US
