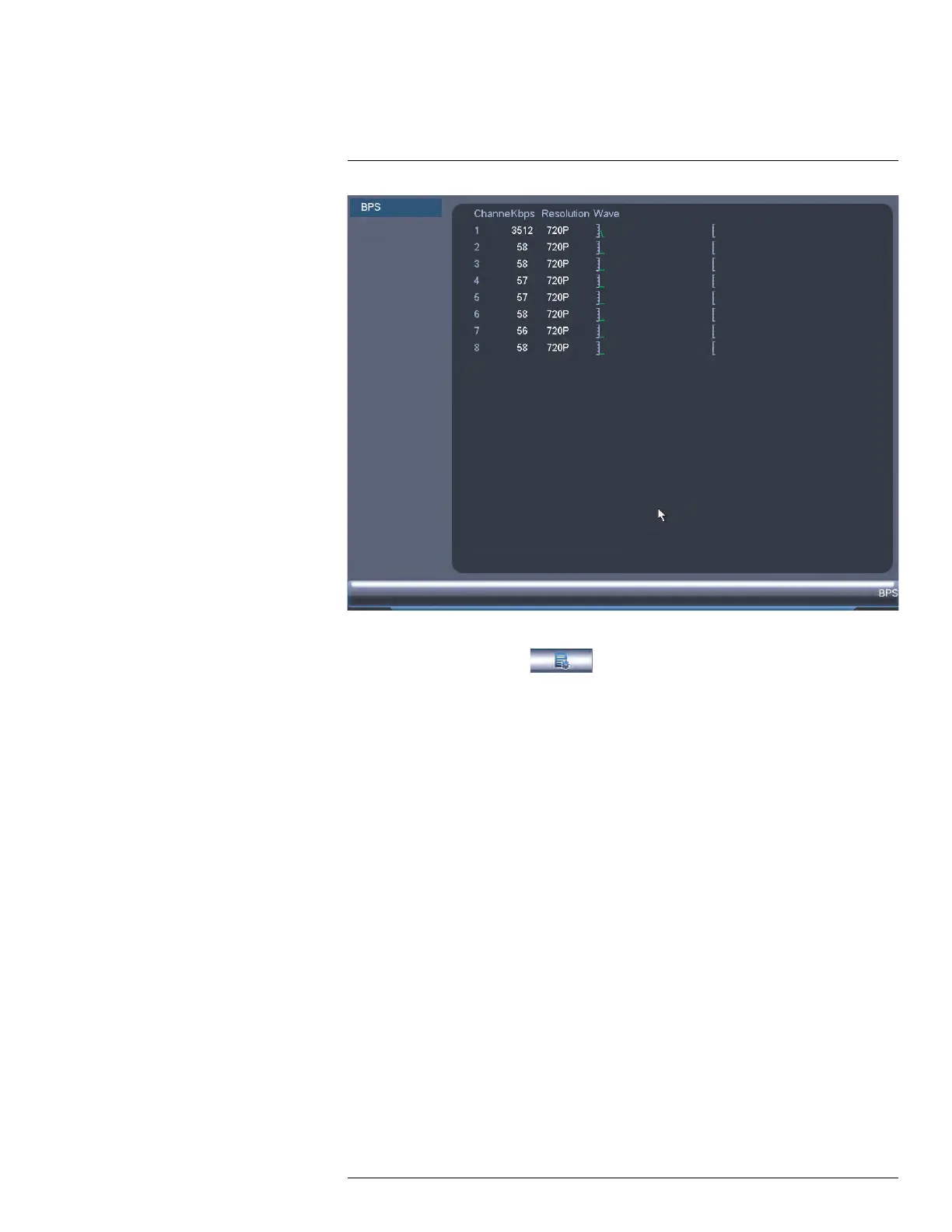

Using the Main Menu15

To access BPS:

• From the Main Menu, click

and then select BPS.

15.2.9 Log

The Log sub-menu allows you to search for system logs.

#LX400096; r.45547/45547; en-US
