Mouse Control
7
The mouse is the primary control device for the system. To connect a USB mouse:
• Connect a USB mouse to the USB port on the front or rear panel.
• In live view, hover the mouse cursor over the bottom of the screen to open the Naviga-
tion Bar. Move the mouse cursor away from the bottom of the screen to close the navi-
gation bar.

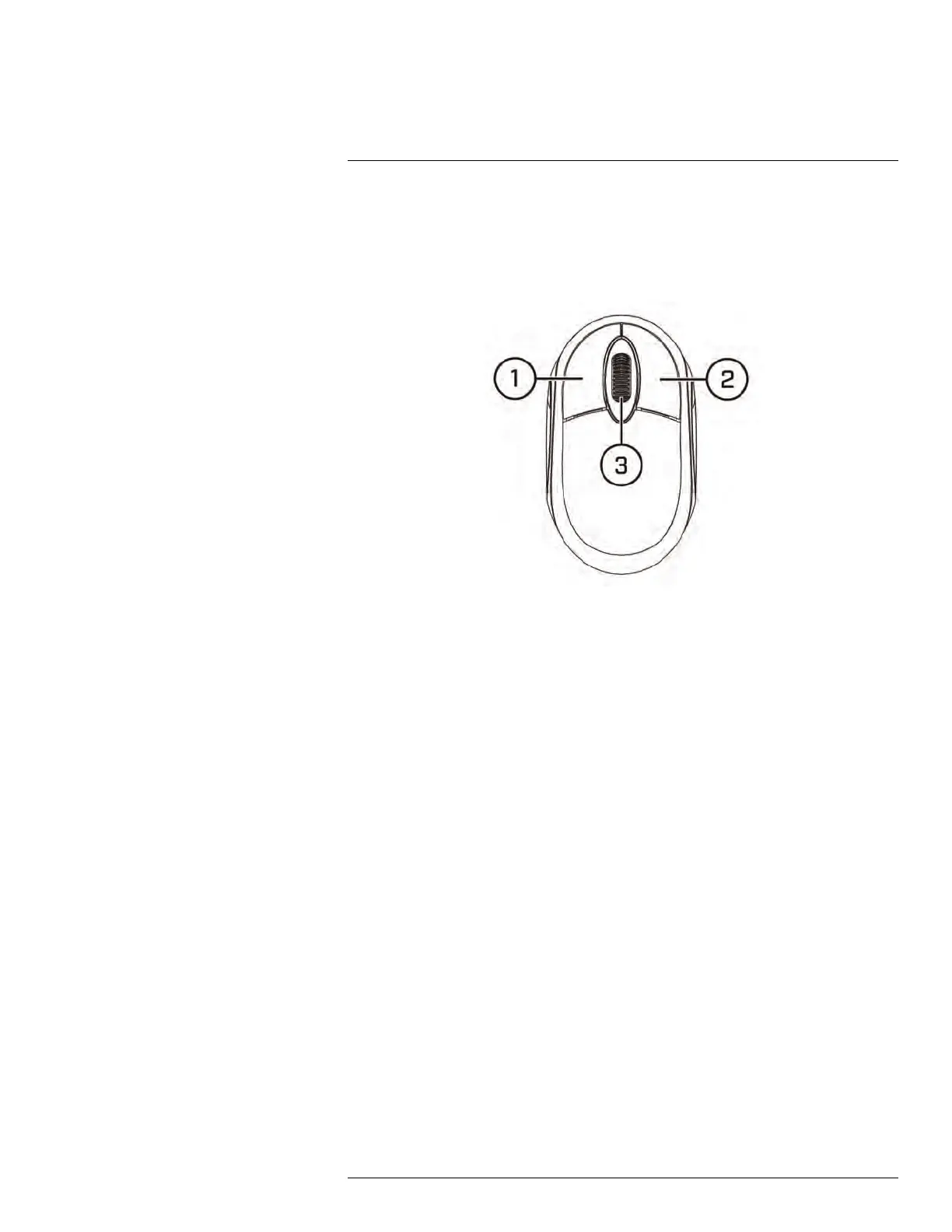

1. Left-button:
• In live view, while in a split-screen display mode, click an individual channel to view
it in full-screen. Click again to return to the split-screen display mode.
• While navigating menus, click to open a menu option.
2. Right-button:
• During live view, right-click anywhere on the screen to open the Quick Menu.
• Within system menus, right-click to exit menus.
3. Scroll wheel: In live view, use the scroll wheel to zoom in/out.
