Fluid Components Intl ST51A - Figure 2 - Serial Number Location on Interface Board (AC Version Shown) with Blind Cover Removed; Figure 3 - ST51 A Flow Arrow Alignment

INSTALLATION ST51A/ST75A/ST75AV Mass Flow Meters
6 Fluid Components International LLC

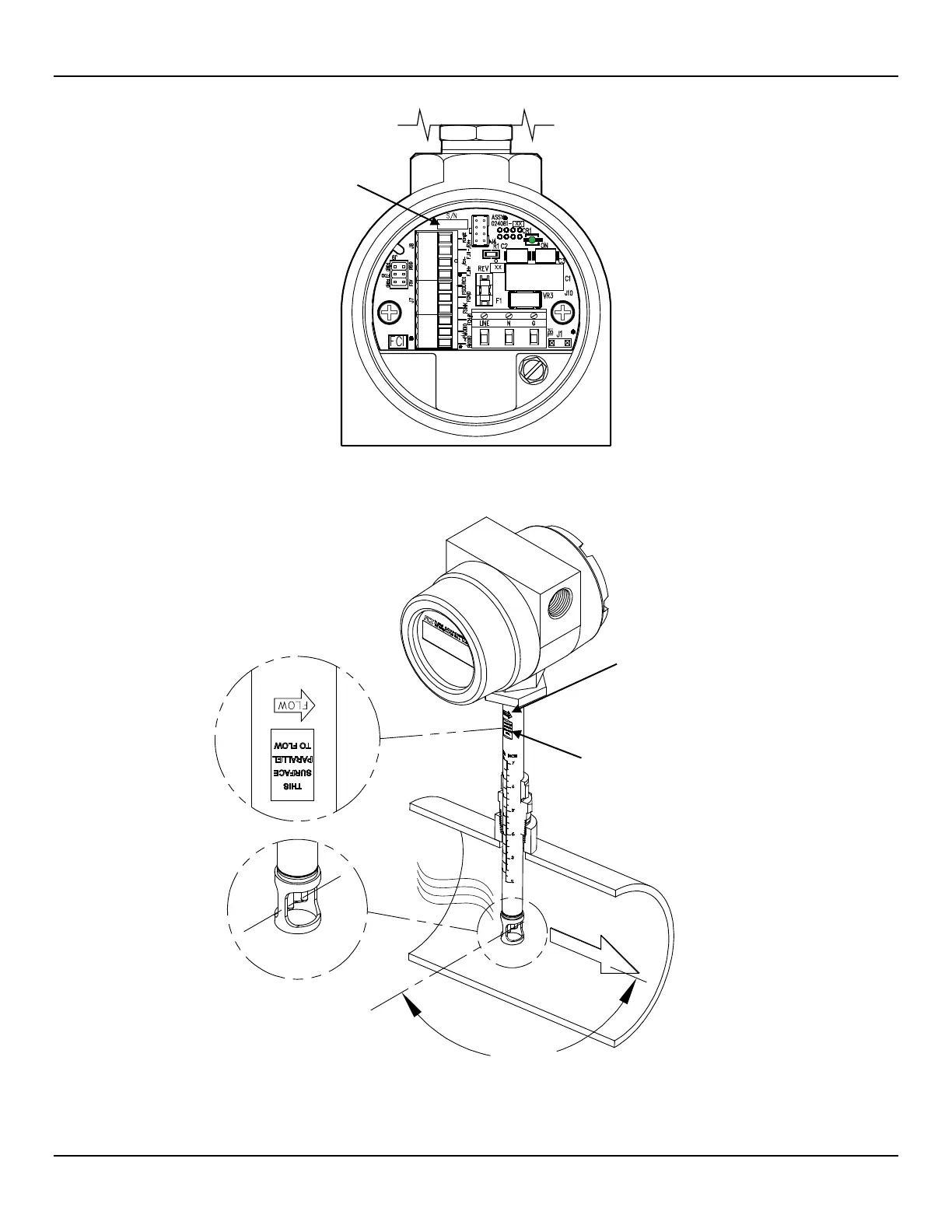

Figure 2 – Serial Number Location on Interface Board (AC Version Shown) with Blind Cover Removed
Figure 3 – ST51A Flow Arrow Alignment
C01158-1-2
90°
C01159-1-1
SERIAL NUMBER
BLOCK
FLOW DIRECTION MARK
POINTS TO FLOW DIRECTION
REFERENCE/ORIENTATION FLAT
PARALLEL TO FLOW DIRECTION
THERMOWELLS PERPENDICULAR
TO FLOW DIRECTION
