INSTALLATION ST51A/ST75A/ST75AV Mass Flow Meters
22 Fluid Components International LLC
HART Connections
Connect the installation HART wiring to the appropriate J8 terminals depending on the application.
Single ConnectionThe instrument supplies power to the loop and controls the current as well. For this application connect HART+
to J8-1 and HART- to J8-3.
Network (Multidrop) ConnectionThe instrument receives loop power from the network, and controls the current. For this
application connect EXT_HART+ to J8-3 and EXT_HART- to J8-2.
The block diagram in Figure 19 below shows the single connection and multidrop HART setups. Use a 250 1%, ≥ 0.3 W resistor as shown in the
diagram below only if the external HART interface/wiring does not have this resistance built-in (HART requires a minimum loop resistance of 230 ).
See also Figure 17, page 19 and Table 3, page 21. If using a handheld HART communicator/calibrator connect it to the line as described
by the manufacturer’s instructions.
C
ABLING RECOMMENDATION
Use a shielded, twisted-pair instrument grade wire (min. 24 AWG for runs less than 5000 ft/1500 m; min. 20 AWG for longer distances). The RC
value of the wire (Total Resistance x Total Capacitance) must be less than 65 µs (not a concern for point-to-point topology with a run less than
328 ft/100 m). A cable designed for HART/RS-485 such as Belden 3105A is recommended for complex setups or particularly long runs or both.
Note:
The HART communications digital signals are superimposed on top of the channel #1 current loop (4-20 mA) output.
When HART communications is in use, the HART current loop channel #1 MUST be configured as FLOW to comply
with the HART protocol. The channel #1 current loop output is configured as FLOW by default at the factory.

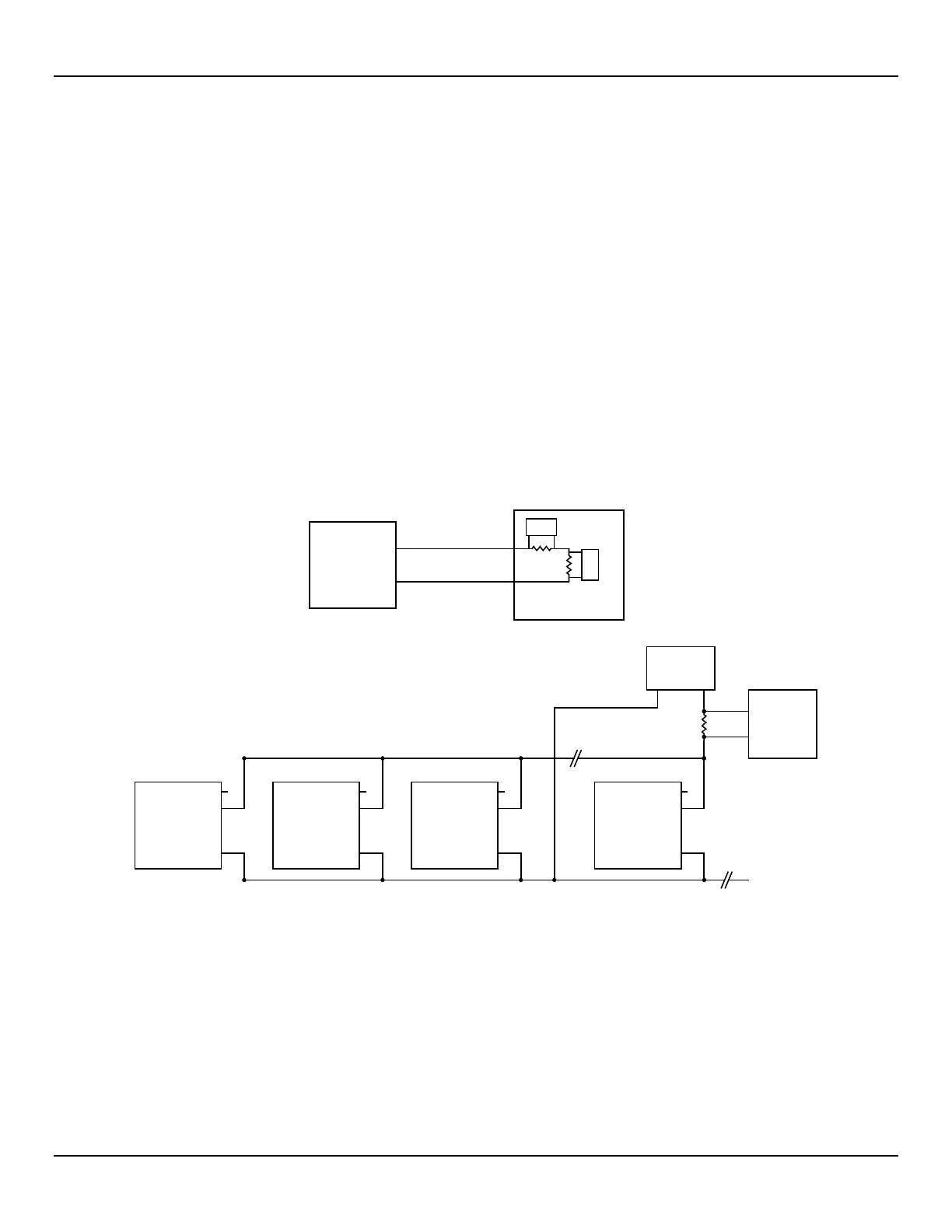

Figure 19Single Connection and Multidrop HART Setups
C01208-1-1
ST51A/75A/75AV
HART
J8-1
J8-2
J8-3
ST51A/75A/75AV
HART
J8-1
J8-2
J8-3
ST51A/75A/75AV
HART
J8-1
J8-2
J8-3
ST51A/75A/75AV
HART
Network P.S.
24 VDC
HART
Master
J8-1
R
LOAD
HART
I/O
J8-2
J8-3
ST51A/75A/75AV
HART
HART Master
+
HART
I/O
J8-1
J8-3
4-20 In
HART+HART
(a) HART Single Connection
(b) HART Network, Multidrop
