ST51A/ST75A/ST75AV Mass Flow Meters INSTALLATION
Fluid Components International LLC 13
Remote Cable
The remote cable connects the local enclosure’s flow element sensor to the transmitter electronics in the remote enclosure. The cable is
available in standard lengths (10/25/50/100 ft. [3/7.6/15/30 m]) as well as custom length as specified in the order information sheet (OIS).
The customer is to supply the appropriate NPT or metric cable fittings for the remote cable. The cable end terminated in a 2x4 female
socket plug connects to the 2x4 pin connector on the interface board inside the remote enclosure. The cable end with 6 metal ferrules
connects to Phoenix connector TB1 on the interconnection board inside the local enclosure. Figure 10 below shows the remote cable
assemblies with customer-supplied pieces.

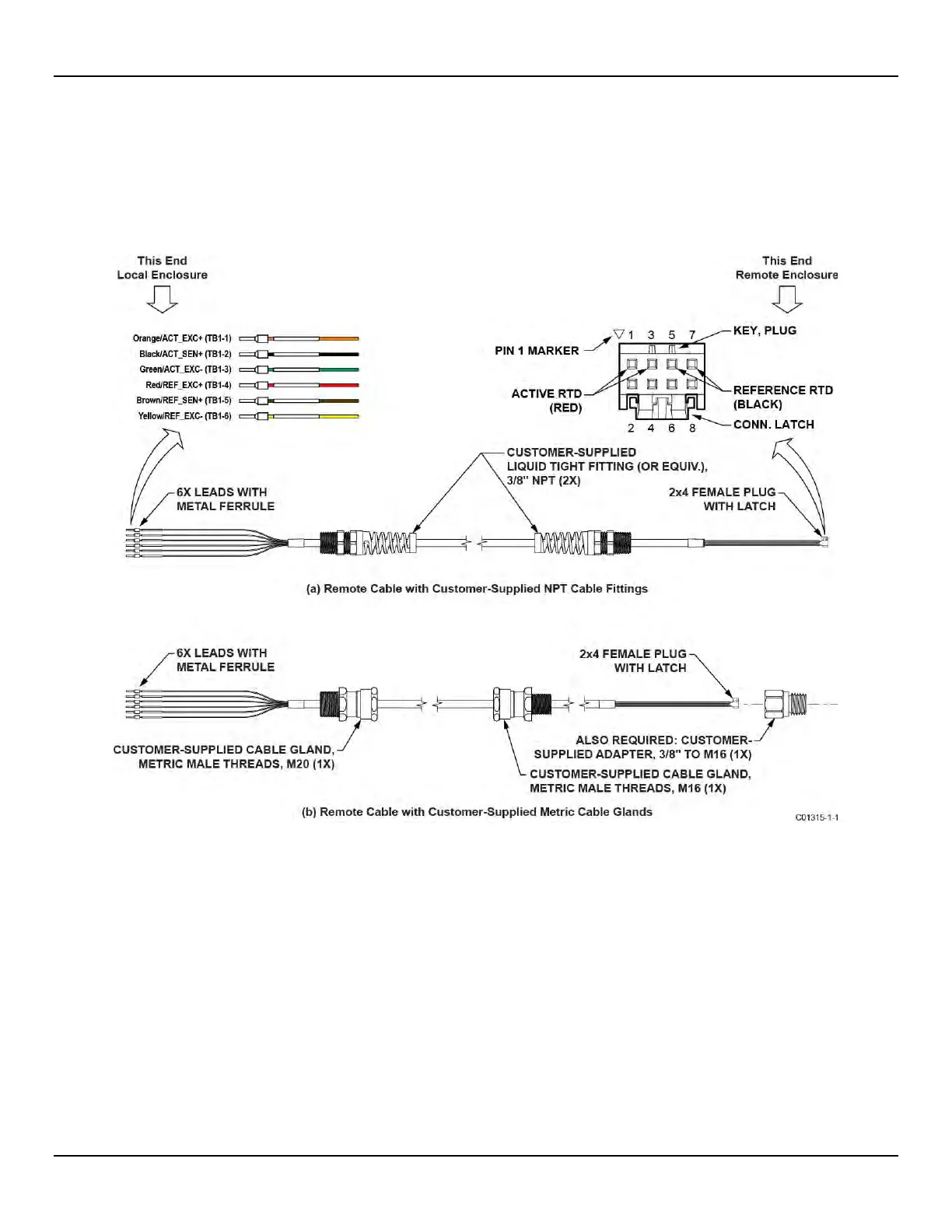

Figure 10 – Remote Cable, Interconnecting
