Resetting the Totalizer Value
● Referring to Checking the Totalizer Value above, repeat step 1, but specify register #4027 instead (Length = 1).
● Repeat step 2 above (skip if already connected and configured).

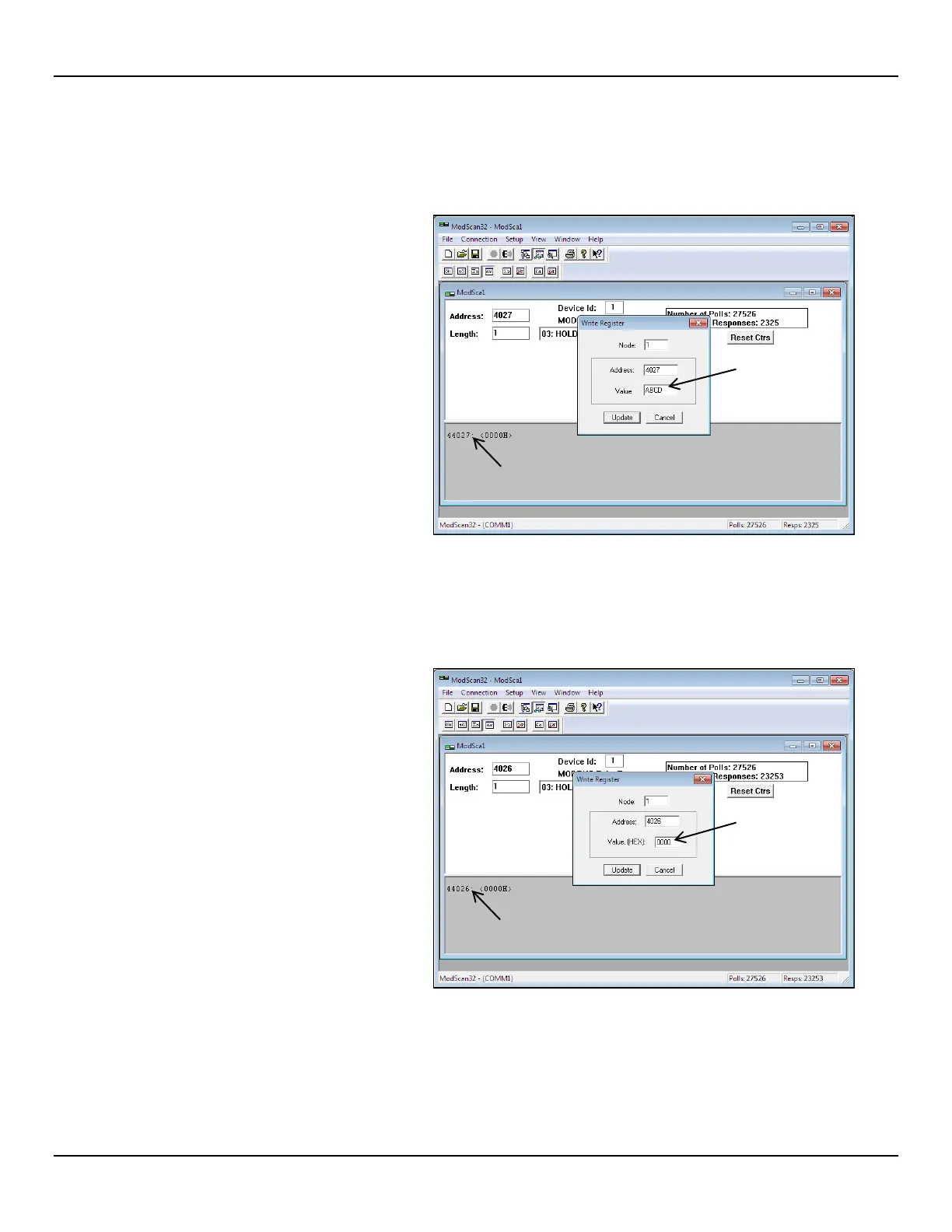

● Double click on the register number (see
figure at right). A pop-up Write Register
dialog displays as shown in figure at right.
Enter the defined hex value, 0xABCD, in the
window’s value field, and then click
Update.
Starting/Stopping the Totalizer Count
● Referring to Checking the Totalizer Value above, repeat step 1, but specify register #4026 instead (Length = 1).
● Repeat step 2 above (skip if already connected and configured).
● Double click on the register number (see
figure at right). A pop-up Write Register
window displays. Enter the defined value
(1 = start or 0 = stop) in the window’s value
field, and then click Update.
ENTER VALUE
DOUBLE CLICK
ENTER VALUE
DOUBLE CLICK
