Section 4: Using the Model 9100: DC Power Function - Operation 4.19-5
Final Width = 215mm
4.19.3 DC Power Screen Keys
4.19.3.1 Bottom Screen Keys

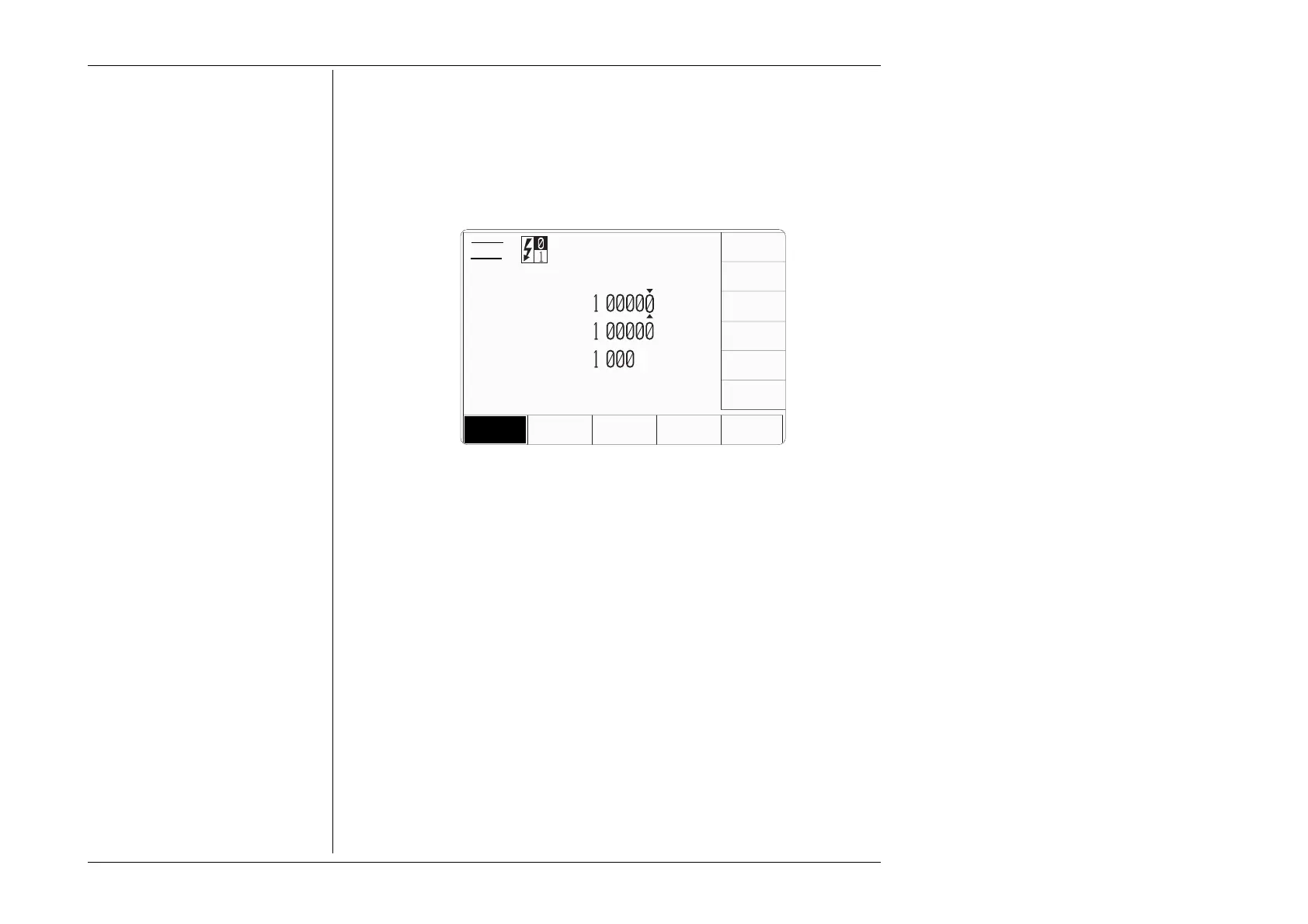

This softkey will trigger the display of an expansion menu that allows the
Auxiliary output channel’s operating mode to be configured. The expansion
menu will contain the following items:
AUX
CHANNEL
MODE
TODAYS DATE TIME
V
A
Power = .
W
Voltage =+ . V
Current =+ . A
CURRENT
VOLTAGE
10 TURN
COIL
50 TURN
COIL
AUX
CHANNEL
MODE
Configures the Auxiliary channel as a current source.
Configures the Auxiliary channel to provide a current source via
x10 current coil.
Configures the Auxiliary channel to provide a current source via
a x50 current coil.
Configures the Auxiliary channel as a voltage source.
CURRENT
VOLTAGE
10 TURN
COIL
50 TURN
COIL
