4.20-4 Section 4: Using the Model 9100: AC Power Function - Operation
Final Width = 215mm
4.20.2.1
W Key

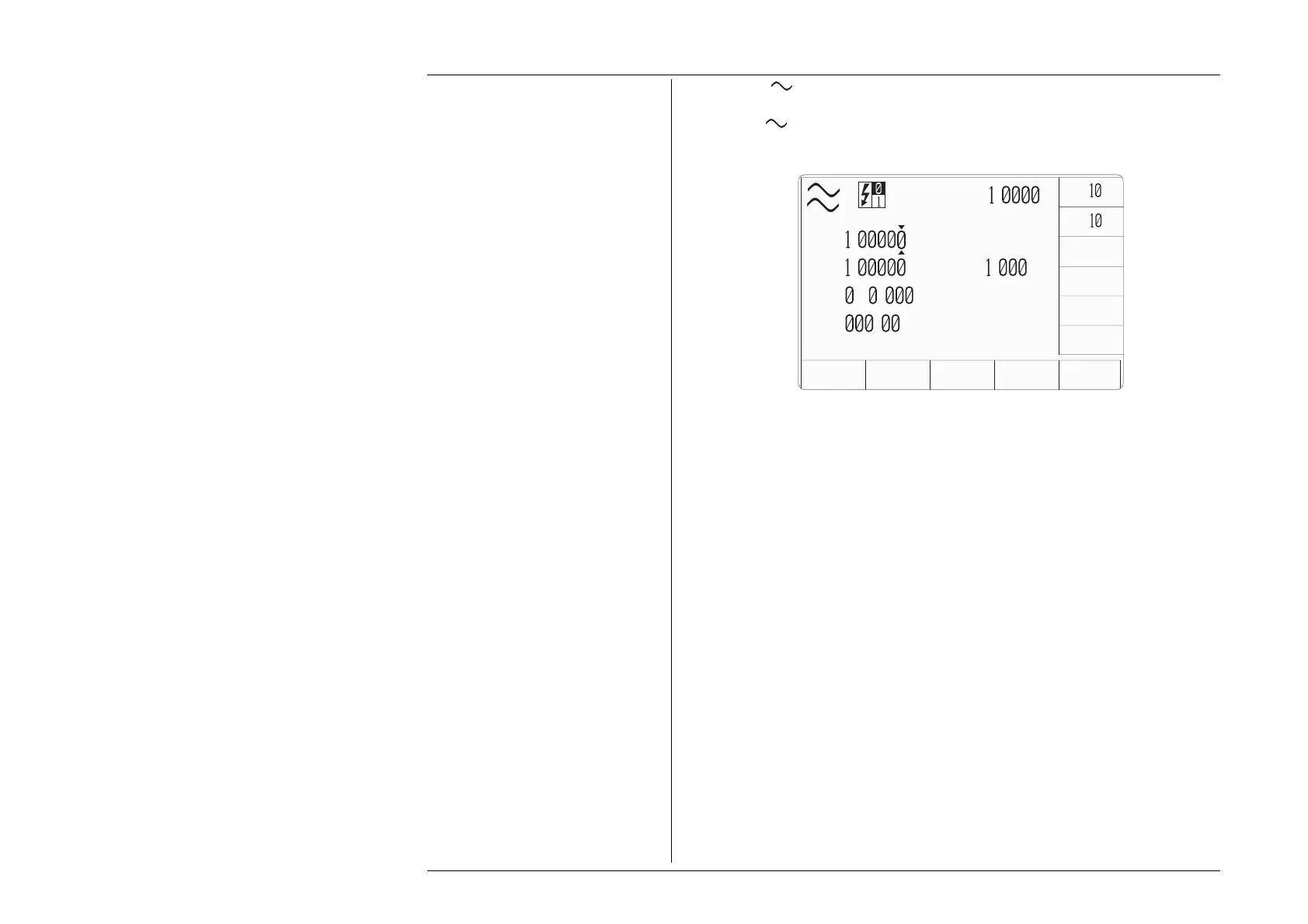

Pressing the
W vertical softkey will result in the display of a default AC power
function screen similar to that illustrated below.
TODAYS DATE TIME
x
÷
ZERO
AUX
CHANNEL
MODE
SIGNED
POWER
V
A
P =
.
W
V =
.
V I =
.
A
F =
5
.
Hz
ø =
.
°
Note that the 9105 Lead/Workmat must NOT be used with the Model 9100's Power function.
You must use the 9104 lead or an equivalent. If a 9105 Lead/Workmat is connected to the
Model 9100, the message
1014 “Power output not allowed with 9105 work-mat” will be
generated when any Power function is activated and an output ON is requested.
The AC Power function icon is used to indicate whether auxiliary voltage or one of the
current modes is active. The upper part of the icon refers to the main channel, the lower,
the auxiliary channel. The left side of the icon indicates the waveshape, the right side the
output mode. The main channel will always be in voltage mode, the auxiliary channel can
be in voltage or current mode (current is indicated by ‘A’, voltage by ‘V’).
The AC power screen also allows the user to set the following:-
- frequency.
- phase relationship between the voltage and current channels.
- an external phase locking signal (ref. output selection and phase angle).
- Voltage or Current output on auxiliary channel.
- Voltage and Current waveforms
- Power units
- Sign of Power
- +/- Phase when edit box is on Ø
VOLTAGE
WV FRM
CURRENT
WV FRM
∆ Φ
POWER
UNITS
PF =
.
