US-80 Original User Guide | Impulse Evo pedelec Version 2

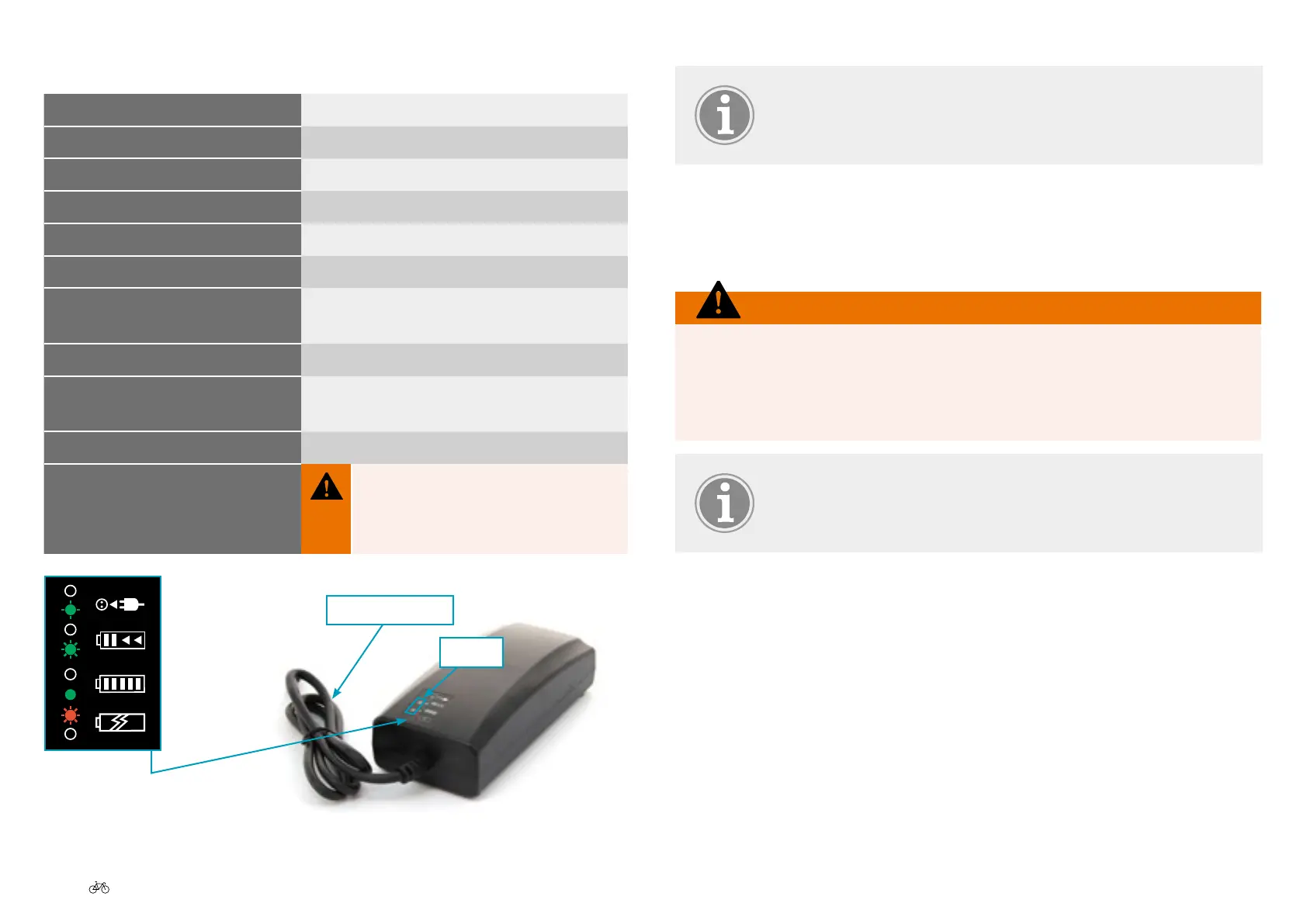

Type 2 charger
Battery voltage
36 V
AC input voltage
110 – 240 V
Frequency
50 - 60 Hz
Maximum DC output voltage
42 V
Maximum charging current
4 A
Dimensions ( L | W | H)
6.83 inches | 3.67 inches | 2.38 inches
Permitted ambient tempera-
ture range during charging
32 to 104 °F
Storage temperature
14 to 122 °F
Recommended storage
temperature
65 to 73 °F
Weight
1.66 lbs
Protection class
The charger is only intended for interior
use. Do not expose the battery charger to
rain and moisture. If water gets into the
charger there is a risk of electric shock.
Charging cable
Charger connected to
mains
|thegreenLEDashes
Battery is being charged
|thegreenLEDashes
Fully charged
| the green LED is on
Charging fault
|theredLEDashes
Charging signals
LEDs
The symbols on the charger display can vary. If you are not
sure about the meaning of the symbols ask your dealer.
8.3 Functions
8.3.1 Charging the battery
WARNING
Readandfollowtheinformationonthechargerspecicationplate,
otherwise there is a risk of misuse resulting in serious injuries.
Damaged batteries may not be charged.
The battery can remain on the pedelec during charging or
you can remove the battery and charge it elsewhere.
Type 1 charger
1. Remove the protective cap from the battery.
2. Insert the battery into the charger until it clicks into place.
3. Insert the mains plug into a power outlet.
4. Oncethebatteryischarged,allveLEDs

light up on the
battery continuously. No LED blinks.
5. Remove the main plug from the power outlet after charging.
6. Remove the charging cable from the battery charging socket.
