E78116

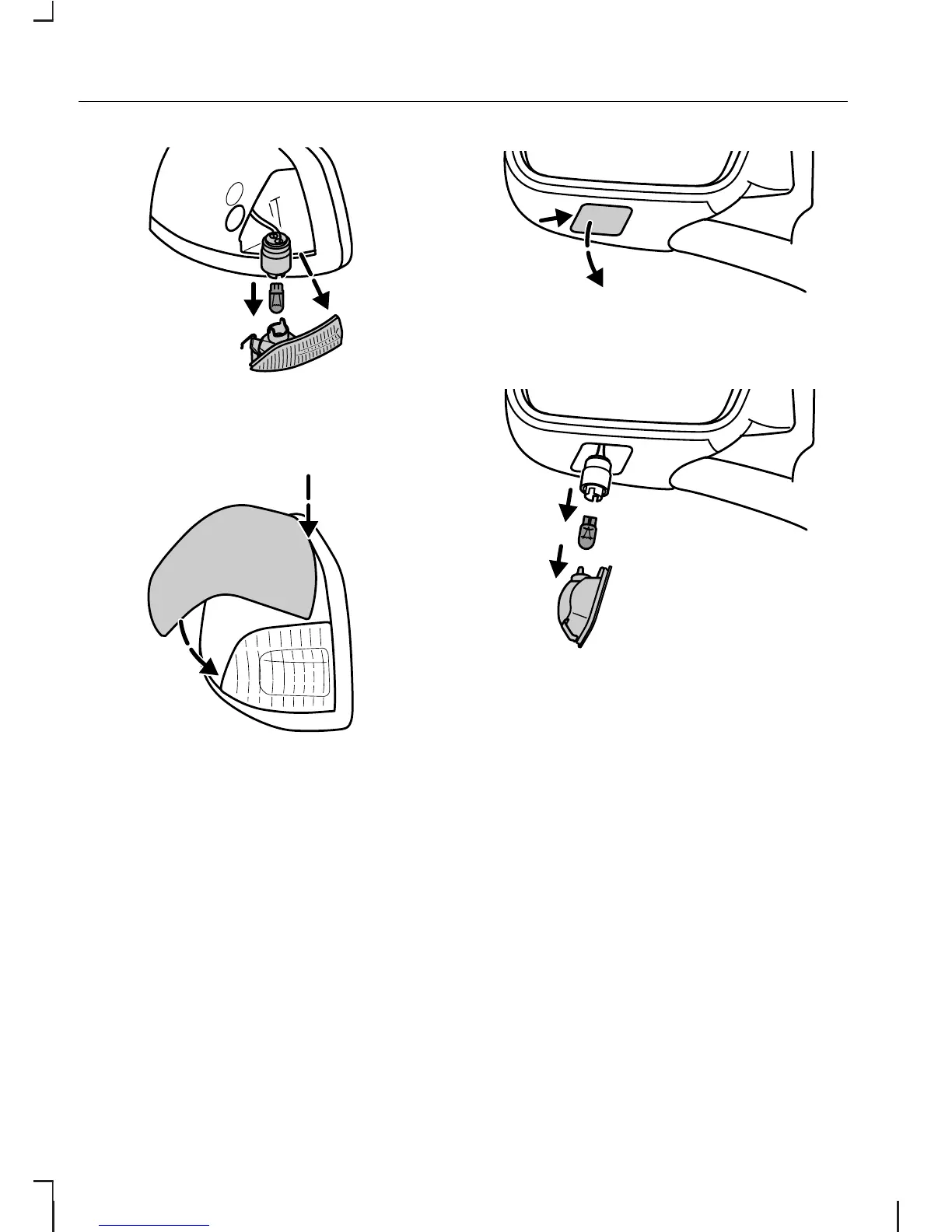

Remove the bulb holder from the

assembly. Remove and replace the

bulb.

E78117

Install in the reverse order. When

reinstalling the scull cap, first insert it

at the top and then press it down at

the bottom until it clicks into place.

Approach lamps

5 watt wedge base bulb

E78118

Carefully prise out the lamp assembly

at the outer edge and pull it out.

E78119

Turn the lamp housing anticlockwise

and remove it. Pull the bulb out.

Install in the reverse order.

Front fog lamps (Type 1)

H8, 35 watt halogen bulb

Lighting

Default Chapter3
