Figure 2-6 Flow Body Style
2.2.6. Flow Body Orientation
Install the flow body so that the arrow on the outside of the flow body is in the direction of flow.
This will ensure the correct sensor orientation.
Note: In extreme low flow measurements (below 30 standard feet per minute), convection heat
from the longer probe may affect the shorter probe (see Figure 2-3, View A-A). In these
applications, chose a mounting orientation that prevents this from occurring (ex. horizontal
mounting).

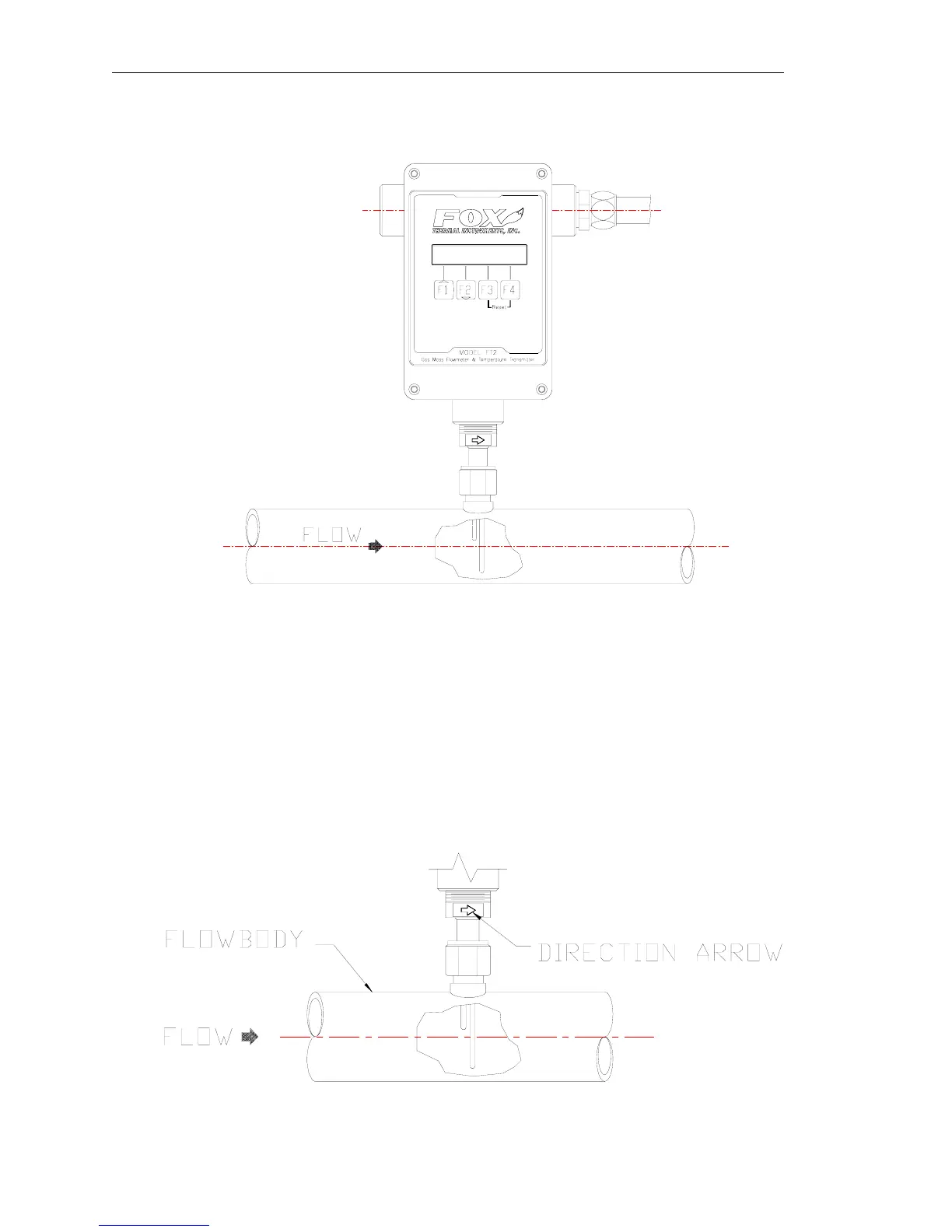

Figure 2-7 Flow Body Orientation
