101364 Model FT2
3.2.3. Frequency/Alarm Output Wiring
Bring frequency/alarm wiring in through the right-hand conduit hub. Connect to TS2, 5(+) & 6(-). The
frequency/alarm output is an open collector circuit capable of sinking a maximum of 10 mA of current.
The frequency output is selected when JP1 pins 1 & 2 are connected together using the shunt provided.
The alarm output is selected when JP1 pins 2 & 3 are connected together. Only one of the options can
be active at one time.

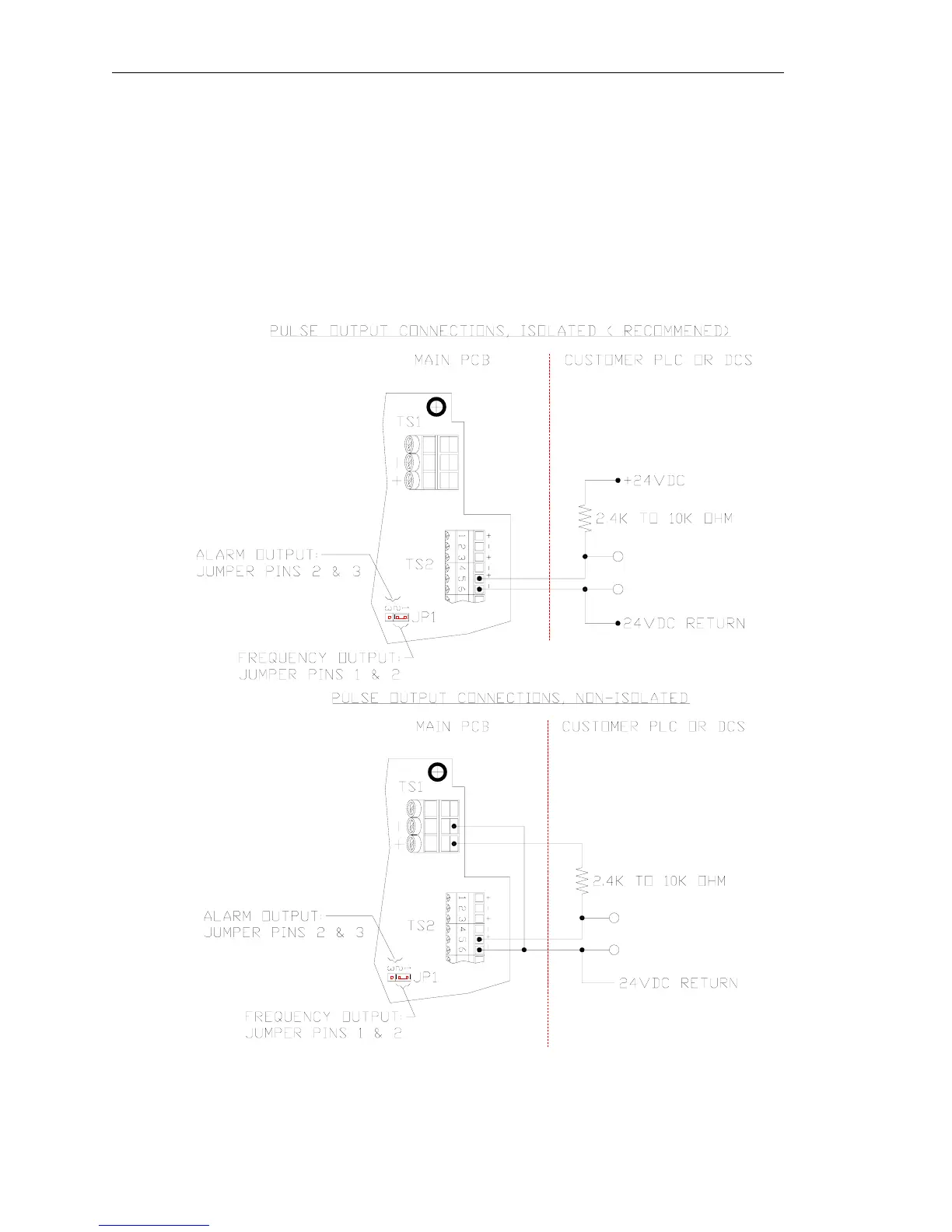

Figure 3-4 Frequency/Alarm Output Wiring
Fox Thermal Instruments Inc., 399 Reservation Road, Marina, CA 93933 Page 19
