and keypad for field programming the flowmeter and a serial communication channel for Profibus,
DeviceNet or Ethernet are also available as options.
1.3. Block Diagram
The main parts of the FT2 Mass Flowmeter are: The FT2 main board, the sensor assembly, an
optional front panel, and an optional power supply. The two PCBs are mounted inside of the enclosure
and the sensor assembly is mounted external to the enclosure. The optional power supply is mounted
under the main PCB.

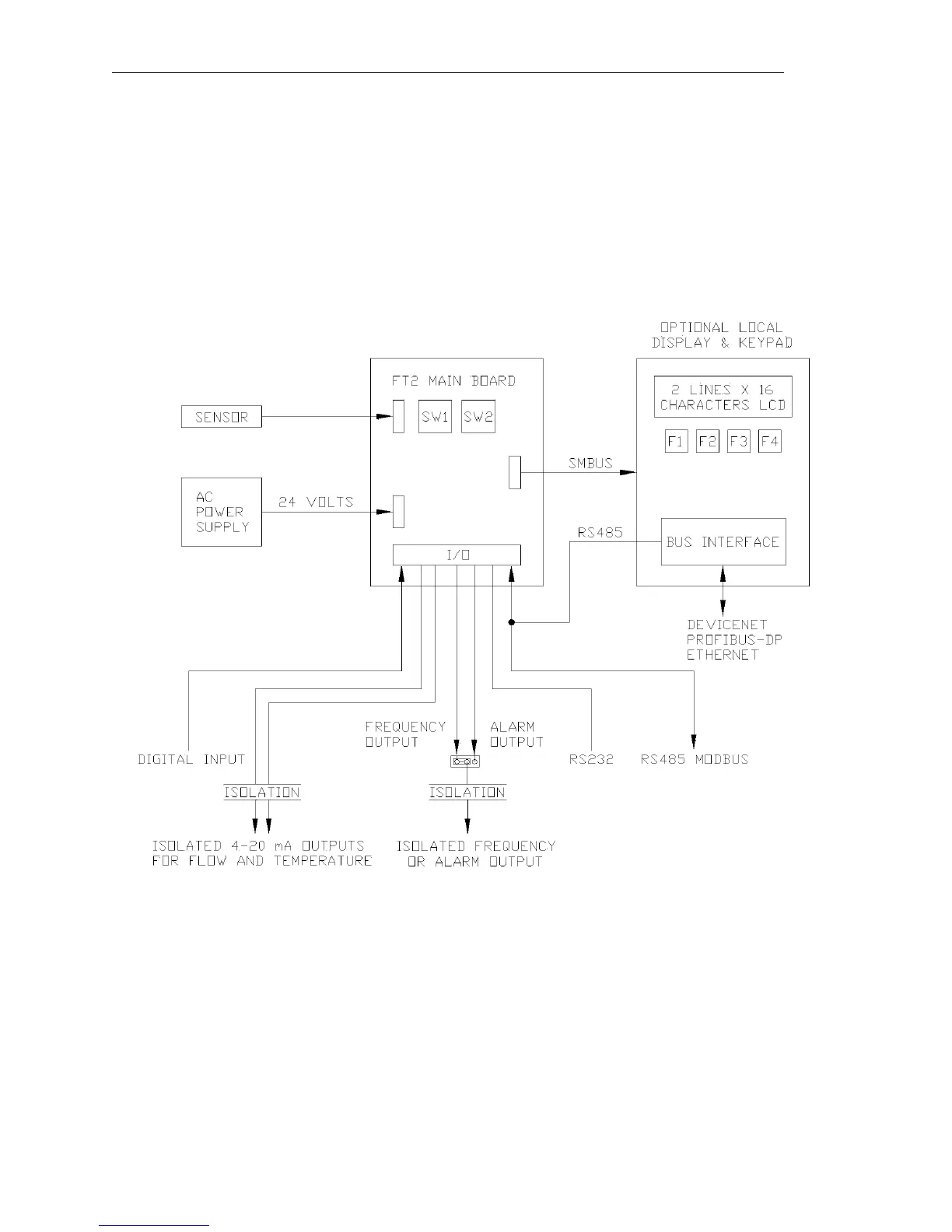

Figure 1-1 Block Diagram
