Model FT2
101364
3.2.2.
4 to 20 mA Output Wiring
Bring the 4 to 20 mA wiring in through
the right-hand condu
it hub. Connect FLOW RATE 4 to 20
mA output t
o TS2, 1(+
) & 2(-). C
onnect TEM
PERATURE
4 to 20 m
A output to
TS2, 3(
+) & 4(-).

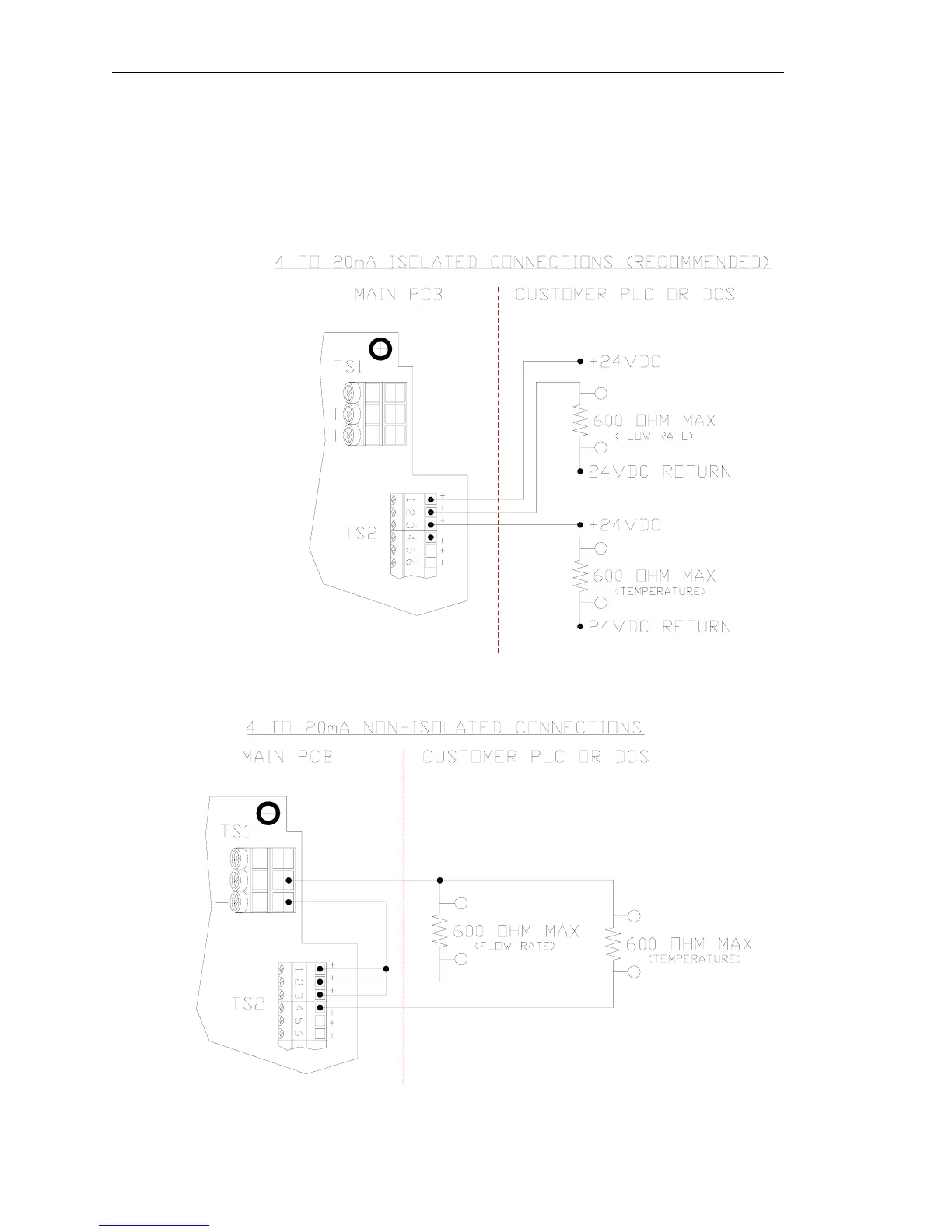

Figure 3-3 Isolated Wiring for the 4-20mA Outputs
Figure 3-3A Non-Isolated Wiring for the 4-20mA Outputs
Page 18
Fox Thermal Instrum
ents, Inc., 39
9 Reservat
ion Road, M
arina, CA
93933
21
23
